FiberCablesDirect - 45M OM3 MPO-MPO Fiber Patch Cable F/F | 10G 12-Fiber Female/Female MPO 50/125 Multimode Cable 45 Meter (147.63ft) | Length Options: 0.5M-300M | 1/10/40g sfp+ 10gbase ofnp MTP-MTP

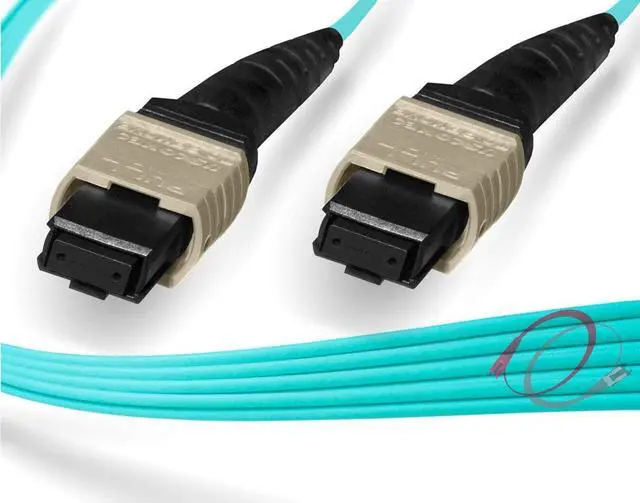

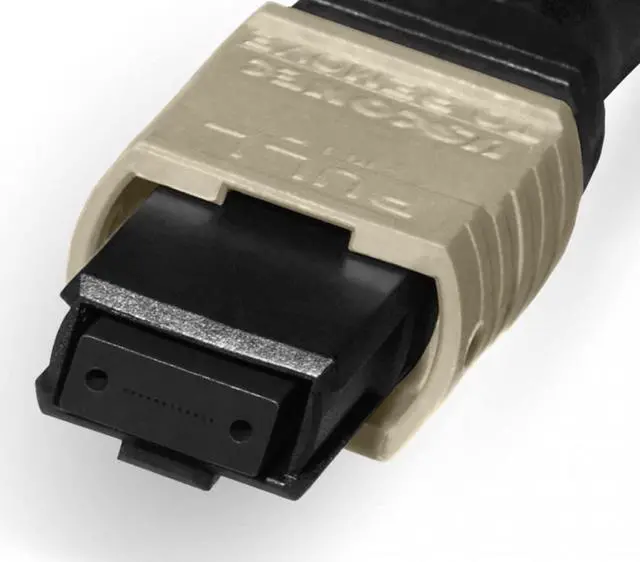

45 Meter OM3 MPO/MTP to MTP/MPO 12 Strand Multi-Fiber Patch Cable Assembly. OFNP Plenum Rated 10Gb Multimode 50/125 Corning fiber cores/cladding. Terminated with a two (2) MTP Compatible MPO multi-fiber push-on connectors for reliable connectivity in compact, high density fiber patch cable environments. Each MPO multi-fiber connector has 12 x 50/125 optical fiber strands.Method B Polarity:
This fiber MTP/MPO patch cable uses Method Type B Fiber Polarity, the most commonly used method. Type B polarity uses key up connectors on both ends so fiber Position 1 (Tx) arrives at Position 12 (Rx) on the other end, Position 2 (Rx) fiber arrives at Position 11 (Tx) at the other end, etc. Engineered for fast and reliable connectivity between switches, transceivers, media converters, patch panels and other 1/10/40g fiber optic equipment. Ethernet Over OM3 Multimode Fiber Details:
1500 / 2000 MHz-km Modal Bandwidth 850nm / 1300nm | Fast Ethernet 100Basw-FX 2000m | 1Gb (1000Mb) Ethernet 1000Base-SX 550m (Requires mode-conditioning patch cord) | 10Gb Ethernet 10GBase-SR 300m | 40Gb Ethernet 40GBase-SR4 100m (330m QSFP+ eSR4) | 100Gb Ethernet 100GBase-SR10 100m.Maximum Connector Loss:
0.50 dBTypical Connector Loss:
0.30 dBTypical Return Loss -25 dBAll fiber cables are tested in accordance with ANSI/TIA/EIA-455-171-A- 2001 attenuation standards by a qualified fiber optic technician and carefully packaged with test results.We provide 35+ popular length options in our online catalogs between 0.5 and 300 meters that can ship the same day. Expedited delivery options for orders we ship include USPS and UPS 1 Day, 2 Day, 3 Day and Ground. FedEx also available for international orders.We do it right with lifetime warranty, quality products, superior packaging and fast delivery anywhere in the world.
