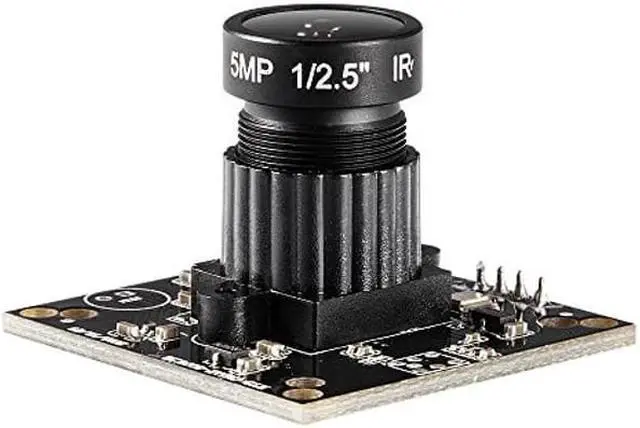

Spinel Low Cost 5MP USB Camera Module with 3.6mm Lens FOV 60 Degree, Support 2592x19440@15fps, UVC Compliant, Support Most OS, Focus Adjustable, UC50MPA_L36
- 5MP resolution, support 2592x1944@15fps, and YUV video streaming.

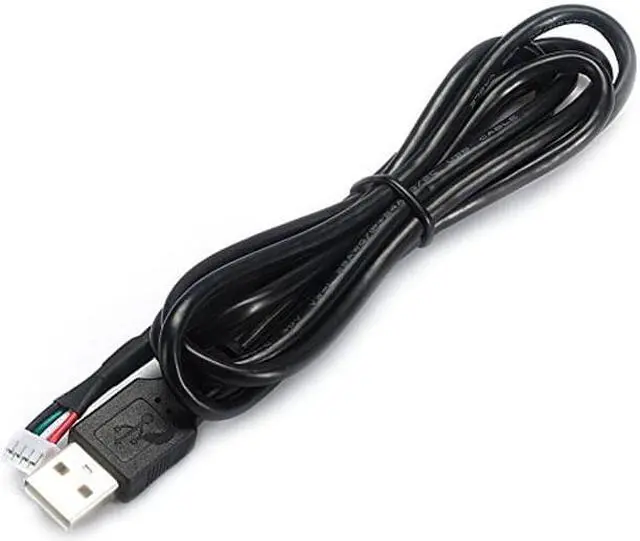

- Plug-&-Play (UVC compliant), USB2.0 camera module with USB2.0 cable, cable length 4ft(1.2M).
- 3.6mm lens with IR-cut filter @ 650nm for true color day images/videos (Does not work with 850nm IR illumination), viewing angle 60 degree, focus adjustable, focus range: 20mm to Infinity.
- Supported OS: Win 7/8/10, Linux, Mac, Wince and Andriod with UVC. Size: 38x38mm (mount compatible with 32 x 32mm), weight: 12g(0.4OZ).
+
+
Overview
Specs
Reviews
For more details check out www. spinelelectronics. com. For questions, technical support and custom orders, please email us at info@spinelelectronics. com or call 1-800-837-5859.
Image Sensor: 1/4''
CMOS Pixel Size: 1.4 mm x 1.4 mm
Resolution: 5 MP 2592 (H) X 1944 (V)
Shutter Type: Electronic rolling shutter
Focus: Manually adjustable
Focusing Range: 20mm to
Infinity Protocol & Connection: Plug-&-Play (UVC compliant)
Frame Rate: 320X240 MJPEG @15fps, 640X480 MJPEG @15fps, 1280X960 MJPEG @30fps, 1600x1200 MJPEG @15fps, 1920x1080 MJPEG @30fps 2048x1536 MJPEG @15fps, 2592x1944 MJPEG @15fps. 320X240 YUV2 @30fps, 640X480 YUV2 @30fps, 1280X960 YUV2@5fps, 1600x1200 YUV2 @5fps, 1920x1080 YUV2 @5fps 2048x1536 YUV2 @3fps, 2592x1944 MJPEG @2fps.
Minimum Illumination: 0.1L ux
Lens: 3.6 mm Lens with 650nm IR filter for FOV 60 degree.
Night vision: No IR night vision, if needed, please contact us for a different IR lens and IR illumination options.
Controllable Features: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure.
Power Socket: 4P PH 2.0 mm socket, USB BUS Power.
Cable Length: Default 4ft ( 1.2M ) (optional 2M or others upon request).
Supported OS: Win XP/Vista/Win7/Win8/Win10, Linux with UVC (linux- 2.6. 26 or later), MAC-OS X 10.4. 8 or later, Wince with UVC, Android 4.0 or higher with UVC.
Power Consumption: DC5V (+-5%), 150~200mA. Operating Temp.: -4degF~167degF (-20degC~+75degC). Storage Temp.: -40degF~185degF (-40degC~+125degC)
Humidity: Less than 80%
Dimension: 32mmx 32mm
Weight: 12g ( 0.4OZ )
Image Sensor: 1/4''
CMOS Pixel Size: 1.4 mm x 1.4 mm
Resolution: 5 MP 2592 (H) X 1944 (V)
Shutter Type: Electronic rolling shutter
Focus: Manually adjustable
Focusing Range: 20mm to
Infinity Protocol & Connection: Plug-&-Play (UVC compliant)
Frame Rate: 320X240 MJPEG @15fps, 640X480 MJPEG @15fps, 1280X960 MJPEG @30fps, 1600x1200 MJPEG @15fps, 1920x1080 MJPEG @30fps 2048x1536 MJPEG @15fps, 2592x1944 MJPEG @15fps. 320X240 YUV2 @30fps, 640X480 YUV2 @30fps, 1280X960 YUV2@5fps, 1600x1200 YUV2 @5fps, 1920x1080 YUV2 @5fps 2048x1536 YUV2 @3fps, 2592x1944 MJPEG @2fps.
Minimum Illumination: 0.1L ux
Lens: 3.6 mm Lens with 650nm IR filter for FOV 60 degree.
Night vision: No IR night vision, if needed, please contact us for a different IR lens and IR illumination options.
Controllable Features: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure.
Power Socket: 4P PH 2.0 mm socket, USB BUS Power.
Cable Length: Default 4ft ( 1.2M ) (optional 2M or others upon request).
Supported OS: Win XP/Vista/Win7/Win8/Win10, Linux with UVC (linux- 2.6. 26 or later), MAC-OS X 10.4. 8 or later, Wince with UVC, Android 4.0 or higher with UVC.
Power Consumption: DC5V (+-5%), 150~200mA. Operating Temp.: -4degF~167degF (-20degC~+75degC). Storage Temp.: -40degF~185degF (-40degC~+125degC)
Humidity: Less than 80%
Dimension: 32mmx 32mm
Weight: 12g ( 0.4OZ )
