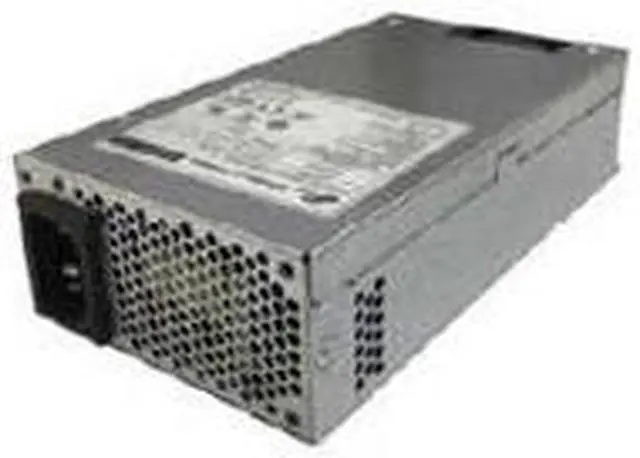

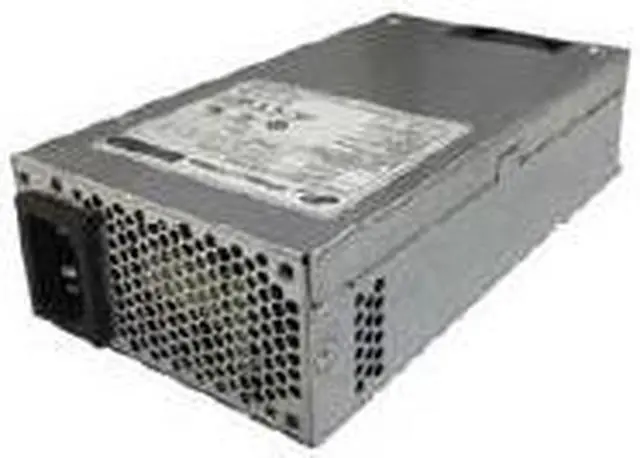

Sparkle FSP500FDB-B204 500W 80 PLUS Gold FLEX Switching Power Supply w/ Active PFC

Specifications

• Mfr Part Number: FSP500FDB-B204

• Features:
  • Complied with ATX FLEX standard
  • Active Power Factor Correction (PFC) meet EN61000-3-2
  • High efficiency and reliability
  • Compatible with European Union Directive 2011/65/EU & (EU) 2015/863 (Restriction on Hazardous Substances)
  • Remote ON/OFF function
  • Internal 12V DC fan included
  • AC input I/O switch is option
  • Low noise and ripple
  • Output over voltage, short circuit, and over current protection
  • 100% Hi-pot, ATE, and burn-in tested
  • Re-settable power shut down
  • Complies with FCC part 15 subpart J class B 115Vac operation, and CISPR 22 class B at 230Vac operation
  • Approved by CB 62368 & 60950-1 2nd, EMC, CUL/UL TUV, FCC, CE

• Input:
  • Input Range: 90 ~ 264Vac (RMS), Full Range Input
  • Frequency: 47 ~ 63Hz
  • Input Current: Max 8A (RMS) @ 115Vac, 4A (RMS) @ 230Vac

  • Inrush Current: No damage
• Output:
  • Total Watts: 500W
  • Output Voltage: + 3.3V @ 14A,   +5V @ 16A, +12V @ 41A, -12V @ 0.3A, +5VSB  @ 3A
  • + 3.3V and +5V total output not exceed 90W
• Dielectric Withstand: Primary frame ground 1800V AC for one second

• Efficiency: Typical >= 90%
• Rise Time: Less than 20ms
• Hold-up Time: >=12ms minimum at input 230V/50Hz
• Power Good Signal: Power on delay time 100 ~ 500ms, off delay 1ms minimum (TTL and CMOS compatible)
• Leakage Current: Less than 3.5 mA at 264Vac, 63Hz

• MTBF: A minimum predicted MTBF (MIL-HDBK-217) of 100, 000 hours of continuous operation at +25°C
• Dimensions (WxLxH): 3.2 x 6.0 x 1.6 inch / 81.5 x 150.0 x 40.5 mm
• RoHS Compliant
