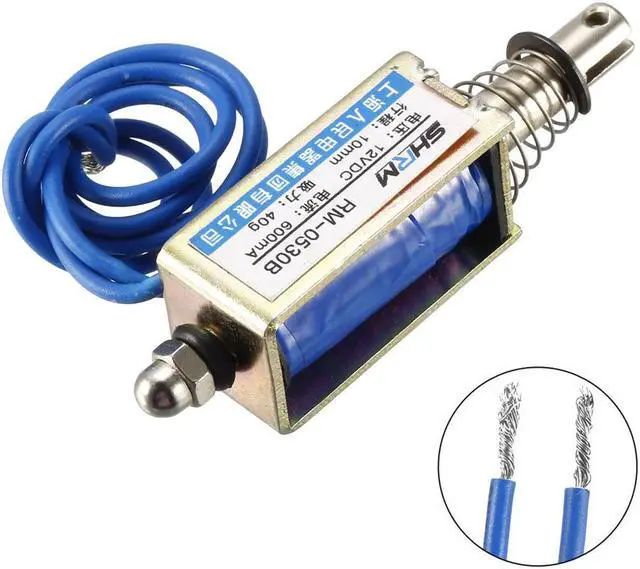

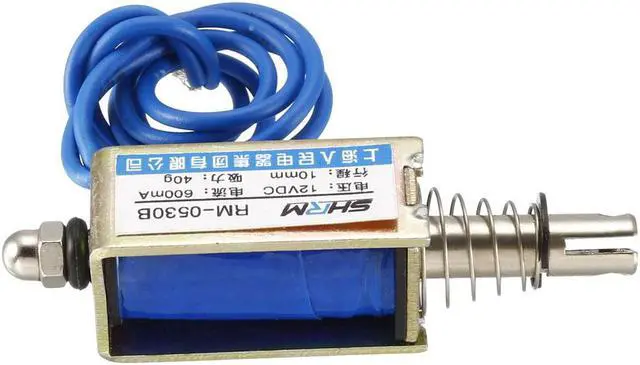

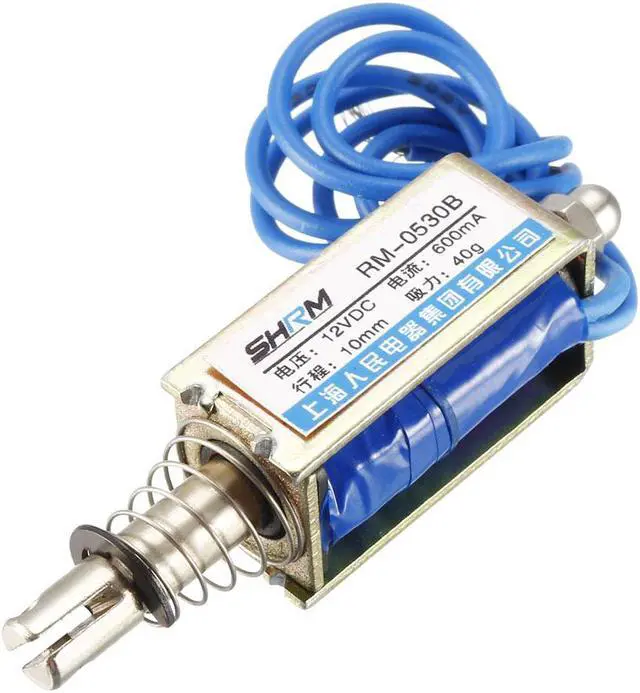

DC 12V 40g 10mm Push Pull Type Solenoid Electromagnet, Open Frame Type, Linear Motion

Description:

Push Pull Type, linear motion, open frame, plunger spring return, DC solenoid electromagnet.

Support DC 12V voltage, linear motion, is easy to install.

DC solenoid electromagnet mainly used in vending machines, transport equipment, office facility,KEY_TAB household appliance, mechanical, etc.

Specification:

Voltage & Current: DC12V, 600mA

Stroke & Force: 10mm, 40g

Action Type: Push Pull

Plunger Bar Dia: 6mm / 0.24 inch

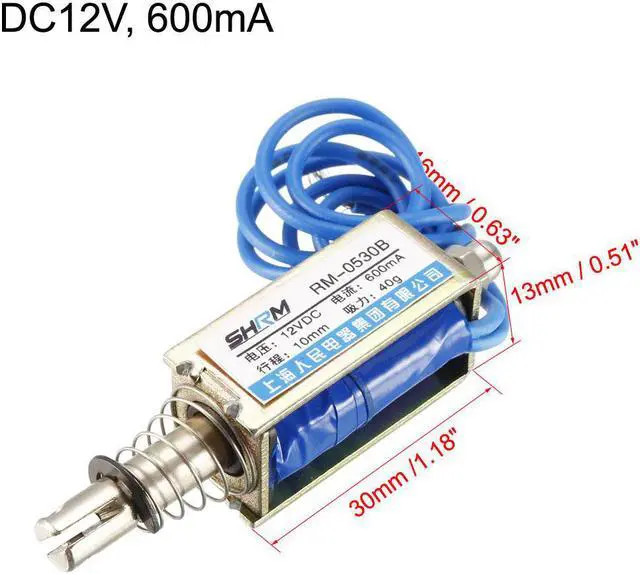

Body Size: 30 x 16 x 13mm / 1.18 x 0.63 x 0.51 inch (L*W*H)

Package Content: 1 x DC Solenoid Electromagnet

Note:

Please pay attention:As an actuating element of anKEY_TAB automation equipmentKEY_TAB ,because the current is large, the single cycle can not be electrified for a long time.The bestKEY_TAB operate time is in 2KEY_TAB seconds.If theKEY_TAB operate time is too long,theKEY_TAB electromagnetKEY_TAB temperature will rise.Too high temperature can affect the life of the electromagnet.

Please take the electromagnet put down gently when you install it. This product is small in size, please pay attention to in the process of using electricity.
