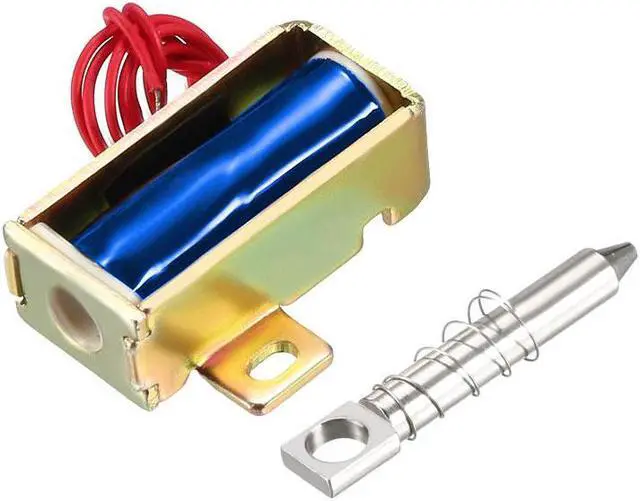

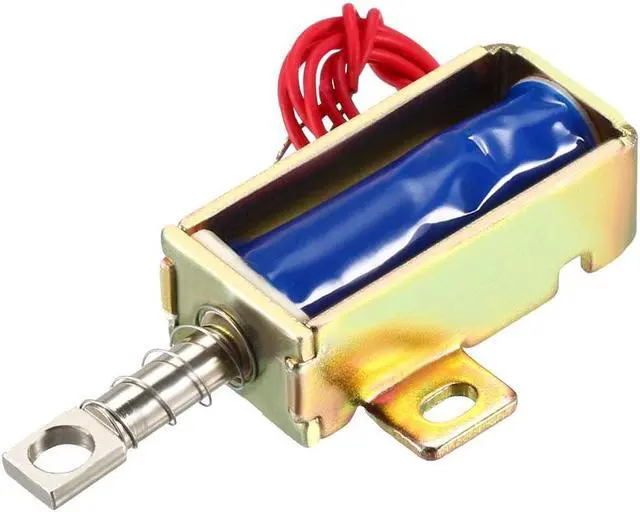

DC 24V 0.8A 5mm Mini Electromagnetic Solenoid Lock Pull Type for Electirc Door Lock
- Item #: 9SIV0KK9YX4759
- Mfr. Part #: a19042500ux0051
- Voltage & Current : DC24V 0.8A; Stroke & Force : 5mm, 400g;Action Type: Pull; Energized Forms: Intermittent; Package Content : 1 x Electromagnet Solenoid Lock
+
+
Overview
Specs
Reviews
Specification:
- Voltage & Current : DC 24V 0.8A
- Stroke & Force : 5mm, 400g
- Action Type: Pull
- Energized Forms: Intermittent

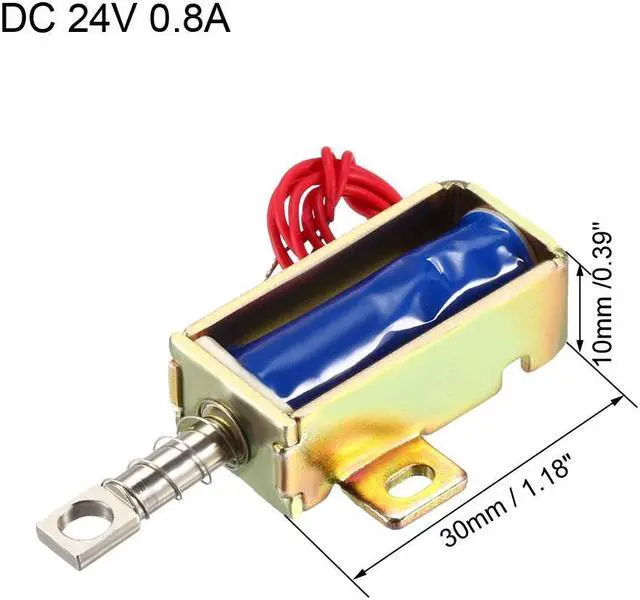

- Body Size: 30 x 27 x 10mm / 1.18 x 1.06 x 0.39 inch (L*W*H)
- Plunger Bar Size: 34 x 4.5mm / 1.34 x 0.18 inch (L*D)
- Mounting Hole Size: 4 x 2.5mm / 0.16 inch x 0.1 inch (L*W)
- Mounting Hole Distance: 22mm / 0.87 inch (L*W)
- Package Content : 1 x Electromagnet Solenoid Lock
KEY_TAB
Instructions for Use:

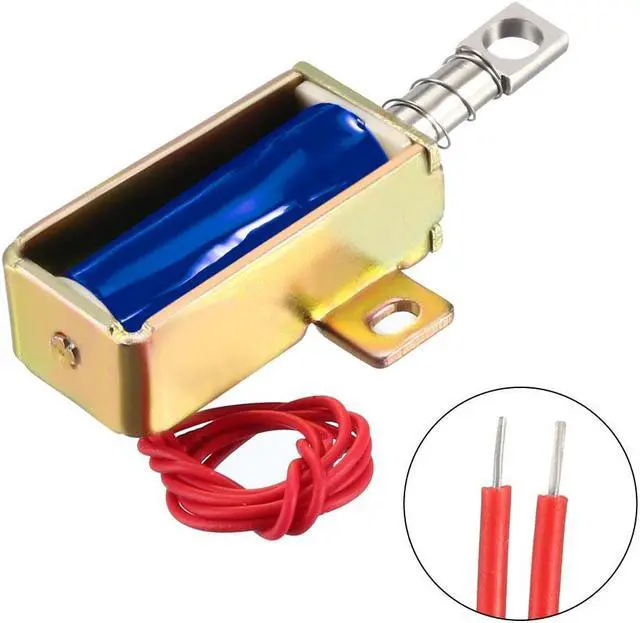

- The red and black wires are the power cords of the electromagnetic lock, and the positive and negative electrodes are not distinguished.
