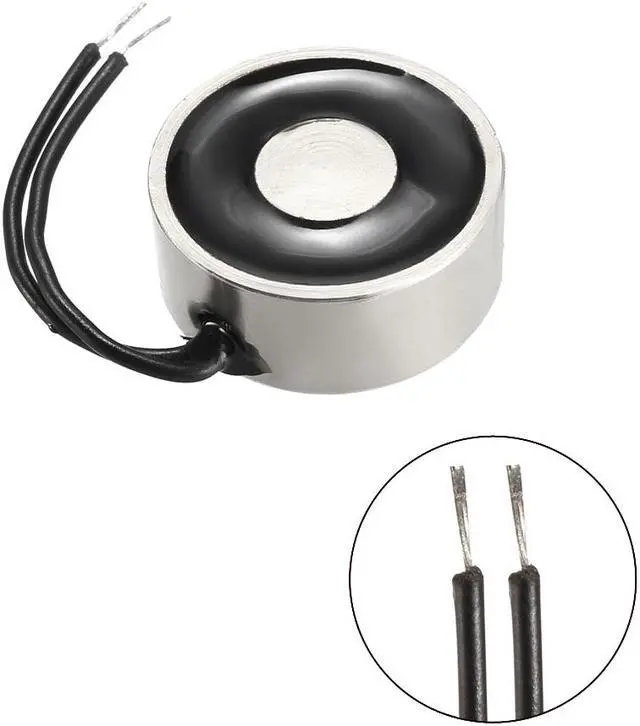

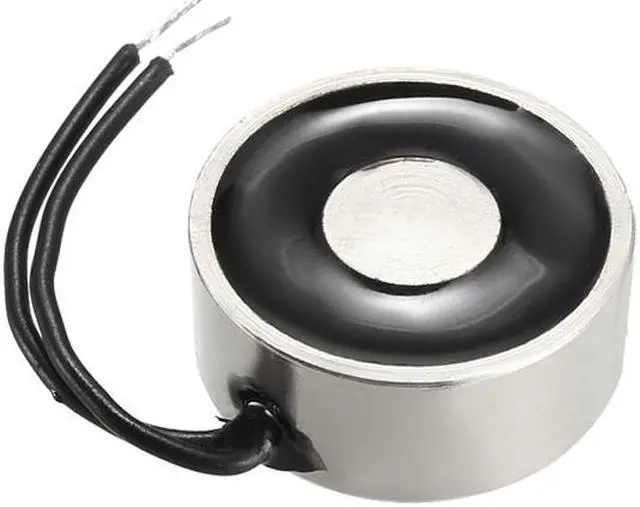

DC12V 12N 1.2KG Lift Holding Electromagnet Sucking Disc Electric Lifting Magnet Solenoid

Feature:

- Electric lifting magnet

- Powerful and compact

- Smooth and flat surface

- Low consumption and reliable

- Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc

Note:TheKEY_TAB ForceKEY_TAB willKEY_TAB beKEY_TAB decreaseKEY_TAB dueKEY_TAB toKEY_TAB longKEY_TAB timeKEY_TAB workingKEY_TAB ,lowerKEY_TAB voltageKEY_TAB andKEY_TAB improperKEY_TAB SuckedKEY_TAB objectKEY_TAB ect.

ItKEY_TAB isKEY_TAB recommendedKEY_TAB thatKEY_TAB theKEY_TAB actualKEY_TAB forceKEY_TAB isKEY_TAB lessKEY_TAB thanKEY_TAB 80%KEY_TAB ofKEY_TAB theKEY_TAB suckedKEY_TAB forceKEY_TAB KEY_TAB onKEY_TAB theKEY_TAB nameKEY_TAB plate.

Specification:

- Voltage: DC 12V

- Current: 0.1A

- Power: 1.25W

- Force: 1.2kg / 2.65lb

- Duty-cycle (ED%) : 50%

- Electric time:Less than 7 minutes

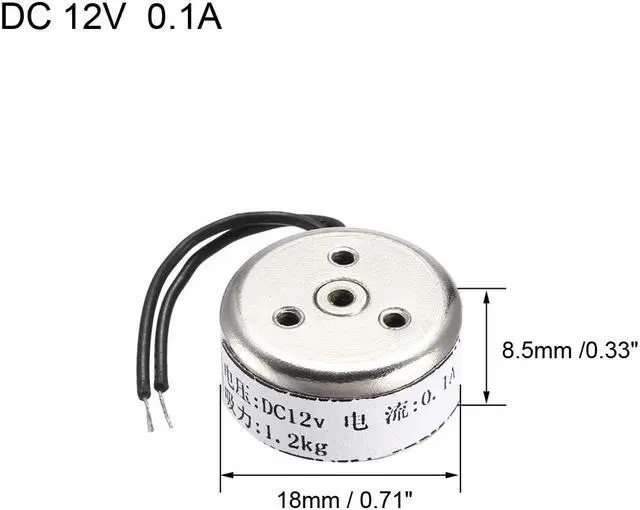

- Overall Size : 18 x 8.5mm / 0.71 inch x 0.33 inchD*H

- Lead Length : 25mm / 1 inch

Package Includes:

- 1 x Holding Electromagnet

Cautions for the use of electromagnets:

1.The object absorbed must be a good magnetic material.KEY_TAB KEY_TAB

2.The suction surface of the electromagnet must be smooth and clean.KEY_TAB KEY_TAB

3.The thickness of the object is 5mm best.KEY_TAB KEY_TAB

4.The contact surface of the object must be larger than the adsorption surface of the electromagnet.
