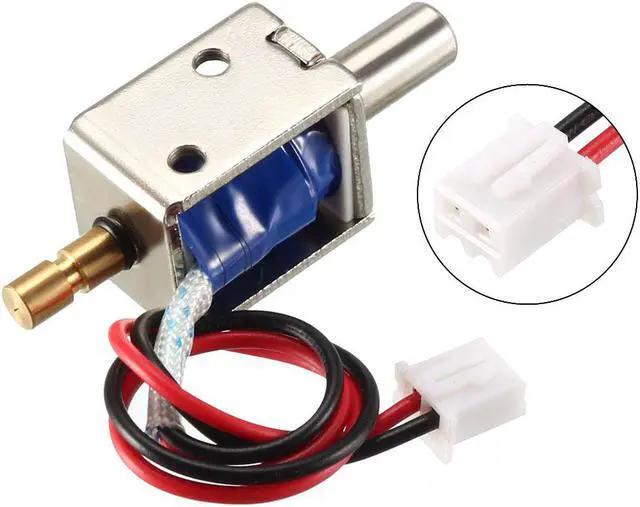

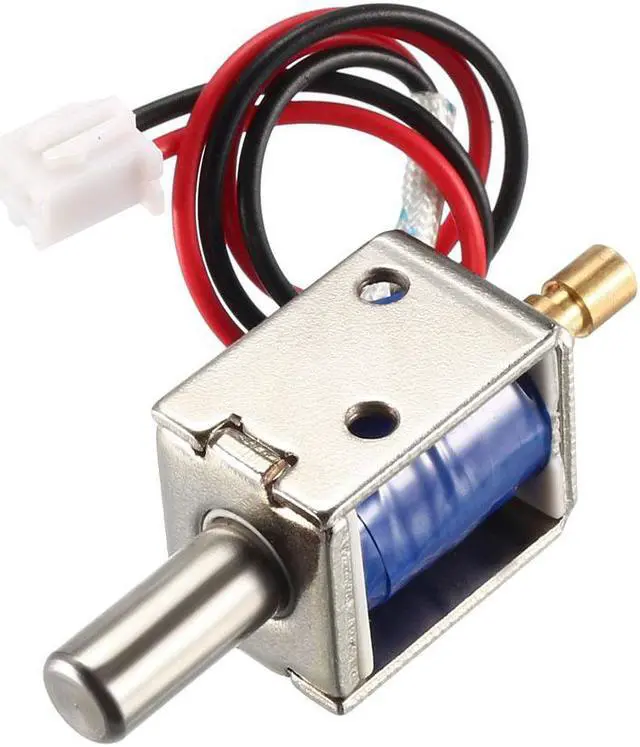

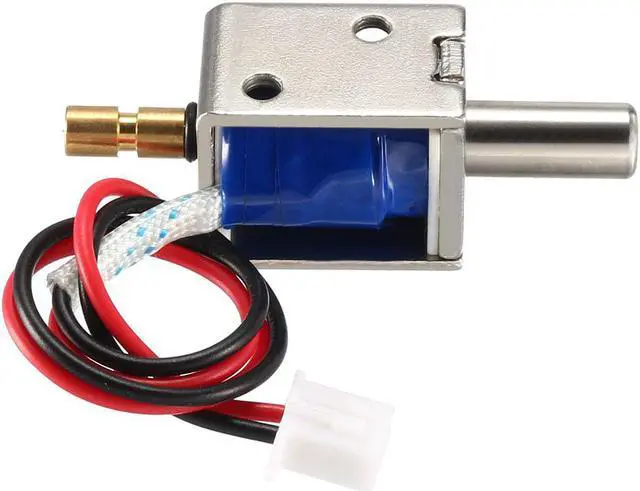

DC 12V 0.43A 4mm Mini Electromagnetic Solenoid Lock Push Pull Type for Electirc Door Lock

Description:

- Easy to install for the electric door lock or other automatic door lock systems with the mounting board.

- Widely used for the cabinet lock,locker locks,file cabinet locks ,luggage locks,electric locks,door locks,solenoid locks,drawer,newspaper boxes lock ,sauna lock,locker electromagnetic.

KEY_TAB

Specification:

- Voltage & Current : DC12V 0.43A

- Stroke & Force : 4mm, 0.8N

- Action Type: Push Pull

- Energized Forms: Intermittent

- Plunger Bar Dia: 6mm / 0.24 inch

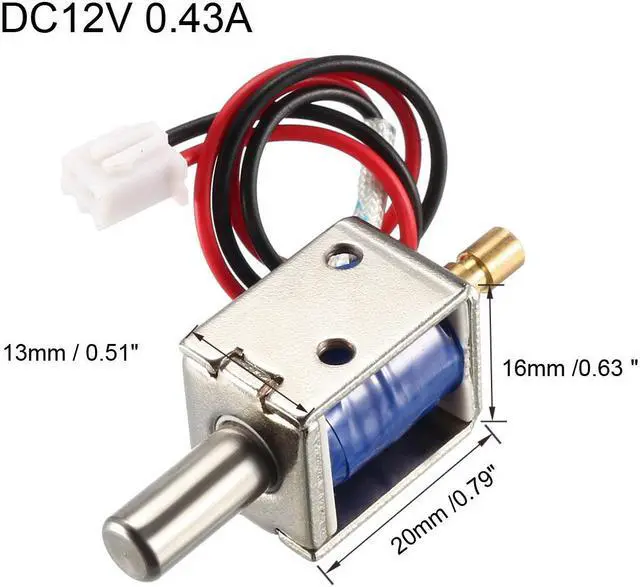

- Body Size: 20 x 16 x 13mm / 0.79 x 0.63 x 0.51 inch (L*W*H)

- Package Content : 1 x Electromagnet Solenoid Lock

KEY_TAB

Instructions for Use:

- When the circuits is charged, the lock tongue will pull back by 4mm and the door will be unlocked.

- After the circuits is powered off, the lock tongue will extend to lock the door.

- The red and black wires are the power cords of the electromagnetic lock, and the positive and negative electrodes are not distinguished.

- When it has been connected the wire and the current is available, the electric lock can control door's opening and closing.
