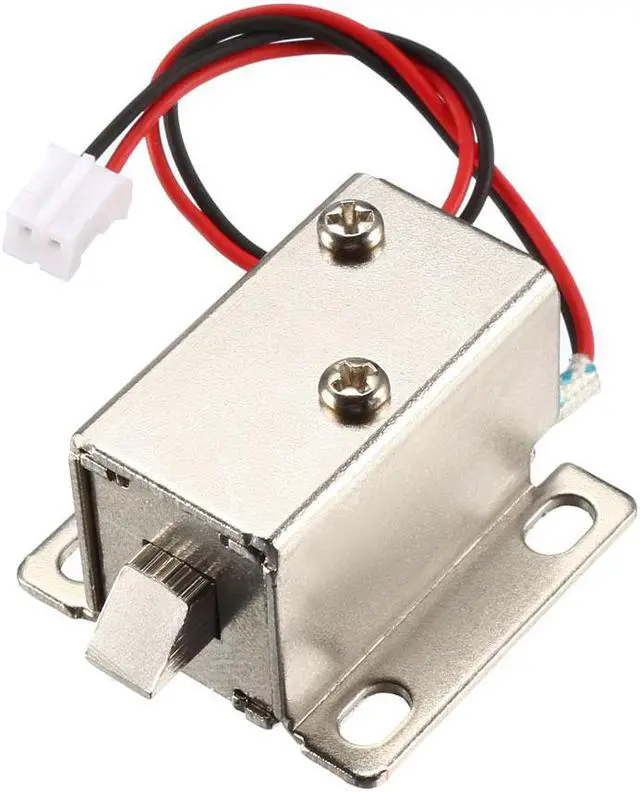

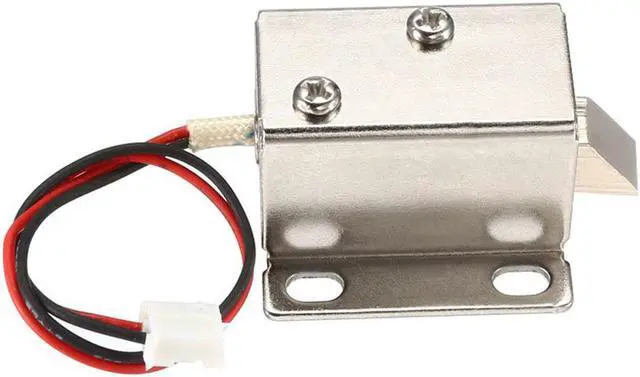

DC 24V 0.57A 6mm Mini Electromagnetic Solenoid Lock Assembly for Electirc Lock Cabinet Door Lock

Description:

- Easy to install for the electric door lock or other automatic door lock systems with the mounting board.

- Widely used for the cabinet lock,locker locks,file cabinet locks ,luggage locks,electric locks,door locks,solenoid locks,drawer,newspaper boxes lock ,sauna lock,locker electromagnetic.

KEY_TAB

Specification:

- Voltage & Current : DC24V 0.57A

- Stroke & Force : 6mm, 80g

- Action Type: Push Pull

- Energized Forms: Intermittent

- Lock Tongue Size: 6 x 5 x 5mm / 0.24 x 0.2 x 0.2 inch (L*W*H)

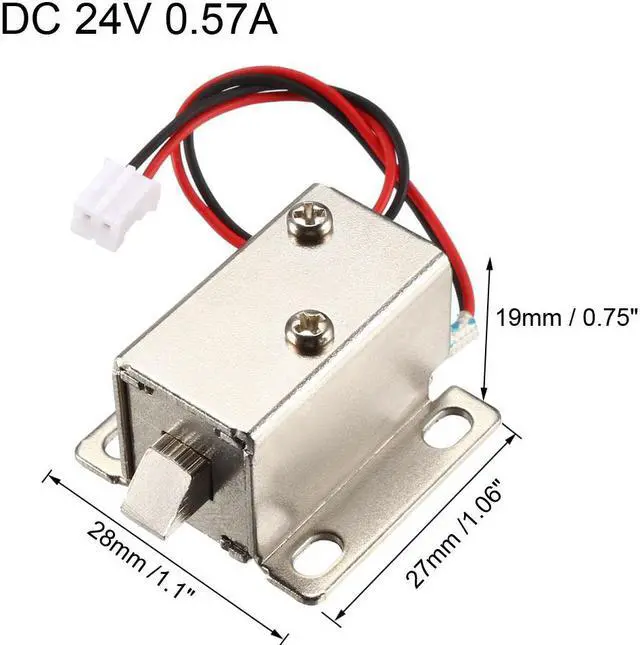

- Body Size: 27 x 28 x 19mm / 1.06 x 1.1 x 0.75 inch (L*W*H)

- Mounting Hole Size: 5 x 3mm / 0.2 x 0.12inch (L*W)

- Mounting Hole Distance: 18 x 21mm / 0.71 x 0.83 inch (L*W)

- Package Content : 1 x Electromagnet Solenoid Lock

KEY_TAB

Instructions for Use:

- When the circuits is charged, the lock tongue will pull back by 6mm and the door will be unlocked.

- After the circuits is powered off, the lock tongue will extend to lock the door.

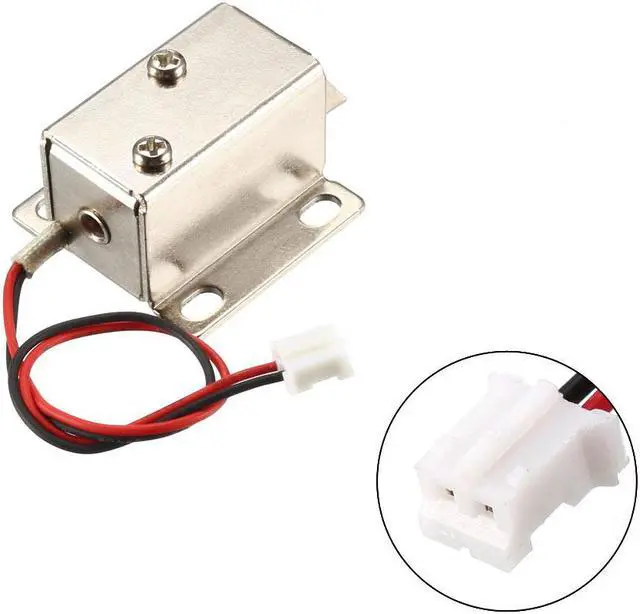

- The red and black wires are the power cords of the electromagnetic lock, and the positive and negative electrodes are not distinguished.

- When it has been connected the wire and the current is available, the electric lock can control door's opening and closing.
