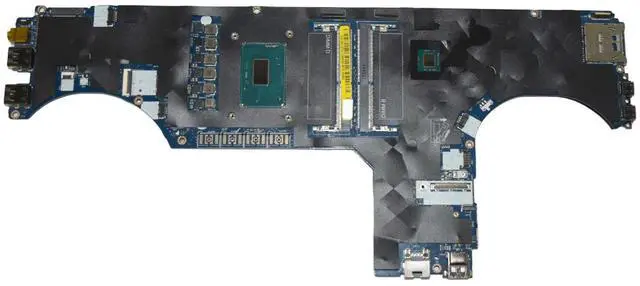

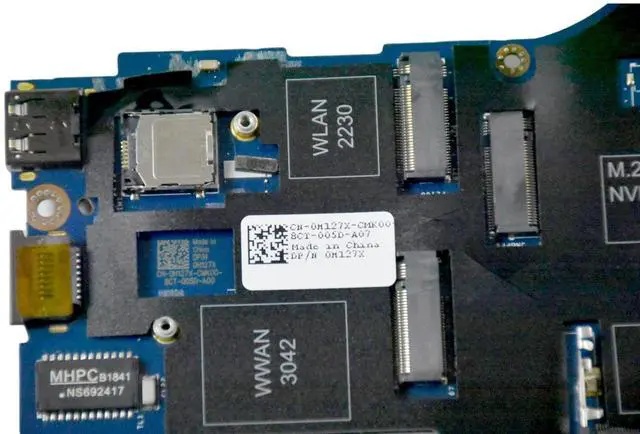

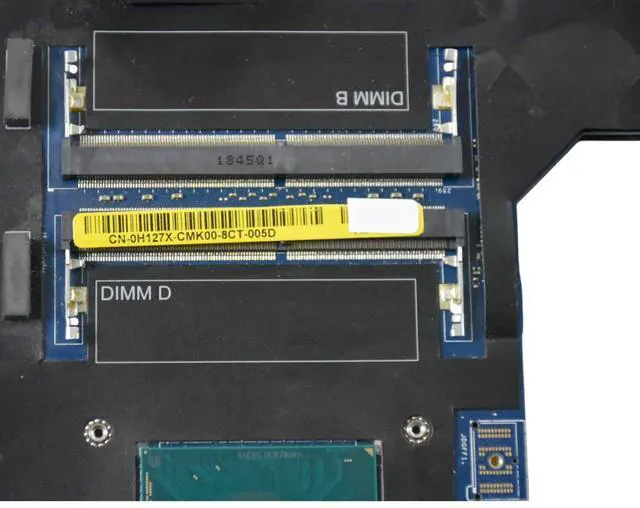

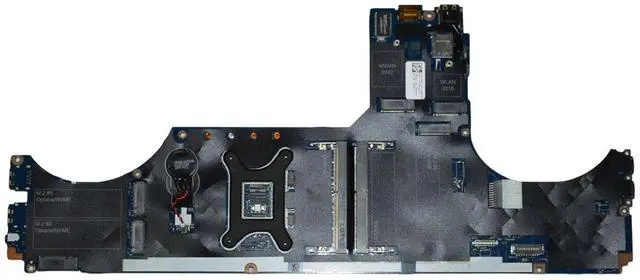

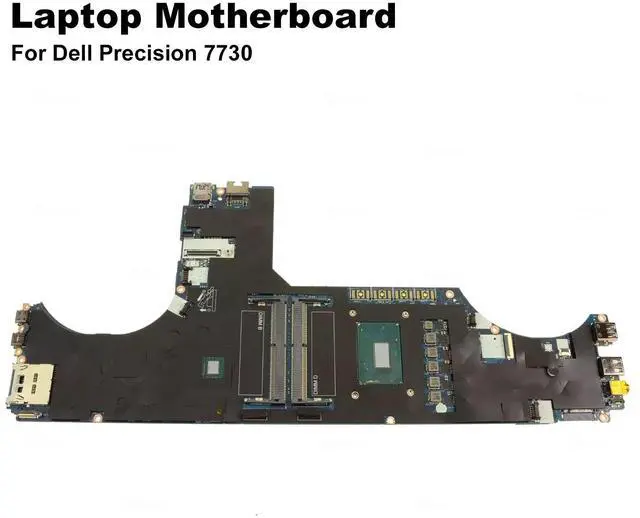

Dell Precision 7730 Laptop Motherboard with Intel Xeon E-2176M 2.70GHz 6-Core CPU DDR4 ECC Support H127X
- Brand: Dell
- Part Number: H127X
- MPN: H127X / 0H127X / LA-G921P
- Type: Laptop Motherboard
- Processor: Intel Xeon E-2176M 6 Cores / 12 Threads 2.70GHz Base, 4.40GHz Turbo Soldered
- CPU Socket: FCBGA1440 (non-replaceable, permanently attached)
- Chipset: Intel CM246 Integrated (SoC architecture)
- Graphics: Intel UHD Graphics P630 Integrated GPU (UMA)
- Memory Support: DDR4 ECC / Non-ECC RAM Up to 128GB 4 SODIMM slots (not included)
- Storage Support: Dual M.2 2280 NVMe SSD support (via onboard interfaces)
- Additional Storage: 1 x SATA interface for 2.5" drive (HDD/SSD, not included)
- Audio Codec: Realtek ALC3266 HD Audio Integrated onboard audio
- Form Factor Compatibility: Custom fit for Dell Precision 7730 Mobile Workstation
+
+
Overview
Specs
Reviews
Genuine Dell OEM motherboard (H127X / LA-G921P) designed for the Dell Precision 7730 mobile workstation. Includes a factory-soldered Intel Xeon E-2176M processor with 6 cores / 12 threads, base clock of 2.70GH z, and Turbo up to 4.40GH z. Features integrated Intel UHD Graphics P630 and supports DDR4 ECC/non-ECC RAM up to 128GB. Ideal for workstation-class tasks, CAD, rendering, and mobile engineering environments.
Processor:
Processor Model: Intel Xeon E-2176M
Cores/Threads: Hexa-core (6 cores) / 12 threads
Base Clock Speed: 2.7 GHz
Turbo Boost Frequency: Up to 4.4 GHz
Cache: 12 MB Intel Smart Cache
TDP (Thermal Design Power): 45W
Chipset:
Chipset: Intel CM246
Graphics:
Video Graphics: Supports dedicated graphics cards (video card not included). Compatible with NVIDIA Quadro GPUs designed for the Precision 7730 series.
Memory Support:
Memory Type: DDR4
Maximum RAM Capacity: Up to 128 GB (4 DIMM slots, up to 32 GB per slot)
Supported Speeds:
Up to 64GB 2666MHz DDR4 Non-ECC
Up to 128GB 2666MHz DDR4 Non-ECC
Up to 32GB 3200MHz SuperSpeed DDR4 Non-ECC
Up to 64GB 2666MHz DDR4 ECC
Storage Support:
Storage Interface:
Supports up to 3 M. 2 PCIe NVMe SSDs
1x 2.5 -inch SATA HDD/SSD bay
Connectivity:
Ports (onboard,
when assembled with a chassis):
Thunderbolt 3
USB 3.1 Gen 1
HDMI 2.0
Mini DisplayPort 1.4
RJ45 Ethernet port
Audio combo jack
Processor:
Processor Model: Intel Xeon E-2176M
Cores/Threads: Hexa-core (6 cores) / 12 threads
Base Clock Speed: 2.7 GHz
Turbo Boost Frequency: Up to 4.4 GHz
Cache: 12 MB Intel Smart Cache
TDP (Thermal Design Power): 45W
Chipset:
Chipset: Intel CM246
Graphics:
Video Graphics: Supports dedicated graphics cards (video card not included). Compatible with NVIDIA Quadro GPUs designed for the Precision 7730 series.
Memory Support:
Memory Type: DDR4
Maximum RAM Capacity: Up to 128 GB (4 DIMM slots, up to 32 GB per slot)
Supported Speeds:
Up to 64GB 2666MHz DDR4 Non-ECC
Up to 128GB 2666MHz DDR4 Non-ECC
Up to 32GB 3200MHz SuperSpeed DDR4 Non-ECC
Up to 64GB 2666MHz DDR4 ECC
Storage Support:
Storage Interface:
Supports up to 3 M. 2 PCIe NVMe SSDs
1x 2.5 -inch SATA HDD/SSD bay
Connectivity:
Ports (onboard,
when assembled with a chassis):
Thunderbolt 3
USB 3.1 Gen 1
HDMI 2.0
Mini DisplayPort 1.4
RJ45 Ethernet port
Audio combo jack
