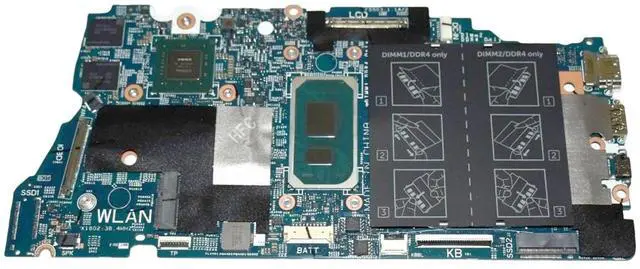

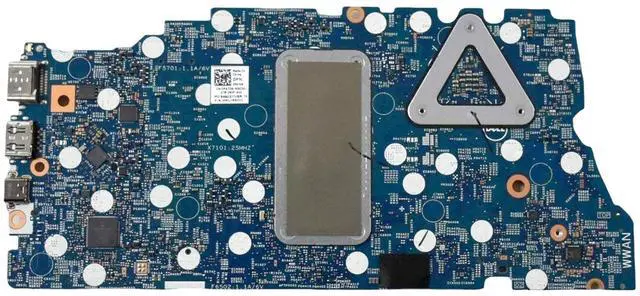

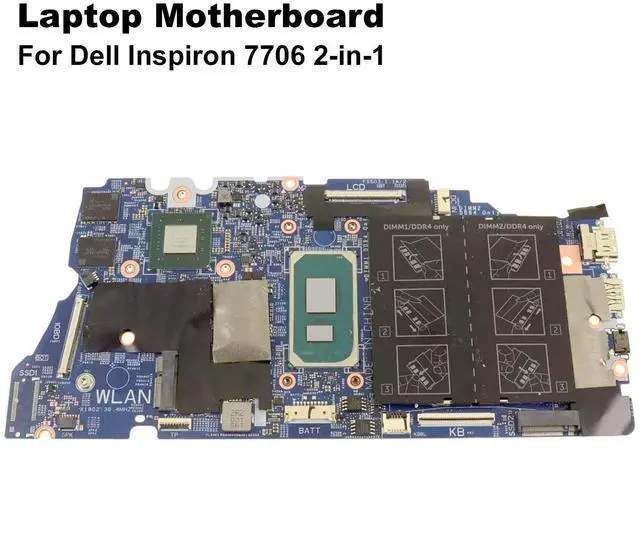

Dell Inspiron 7706 2-in-1 Motherboard Intel Core i7-1165G7 NVIDIA MX350 DDR4 P47D9

This Dell OEM P47D9 motherboard is a genuine system board sourced from a fully functional Dell Inspiron 7706 2-in-1 17" touchscreen laptop. It features a soldered Intel Core i7-1165G7 processor, offering efficient quad-core performance with a base frequency of 2.80GH z and Intel Turbo Boost up to 4.70GH z.
The motherboard includes soldered dual graphics solutions: Intel Iris Xe integrated graphics and a dedicated NVIDIA GeForce MX350 GPU, ensuring robust multitasking and multimedia capabilities. Built on Intels 10nm SuperFin Tiger Lake architecture, the chipset, graphics controller, and audio codec are fully integrated into the SoC for optimal efficiency and reliability.
This board supports dual-channel DDR4 memory via two onboard SODIMM slots (RAM not included) and offers compatibility with M. 2 NVMe SSDs and SATA drives depending on the specific laptop configuration. Ideal for repair, system rebuilds, or replacements, this unit includes only factory-soldered components. Removable parts such as RAM, SSD, Wi-Fi modules, and other accessories are not included.
Technical

Specifications

:
Processor & Performance:
CPU: Intel Core i7-1165G7 (Soldered)
Base Frequency: 2.80GH z
Turbo Boost Frequency: Up to 4.70GH z
Cores / Threads: 4 Cores / 8 Threads
Chipset: Integrated Intel SoC
Fabrication Technology: 10nm SuperFin
Graphics:
Integrated GPU: Intel Iris Xe Graphics
Discrete GPU: NVIDIA GeForce MX350 (Soldered)
Graphics Type: Dual-GPU Configuration (Integrated + Discrete)
Memory & Storage Support:
RAM Slots: 2 x DDR4 SODIMM Slots (Memory not included)
Maximum Memory Capacity: Up to 32GB DDR4 (varies by configuration)
Storage Interfaces: M. 2 PCIe NVMe SSD and SATA (varies by system setup)
