NexCOBOT Industrial motherboard | Single board computer ICES676S 12/13th Generation Intel® Core/ Pentium®/ Celeron Processors, Socket LGA 1700 , PCH H610 Dual Channel DDR5 262-pin SO DIMM, up to 64G

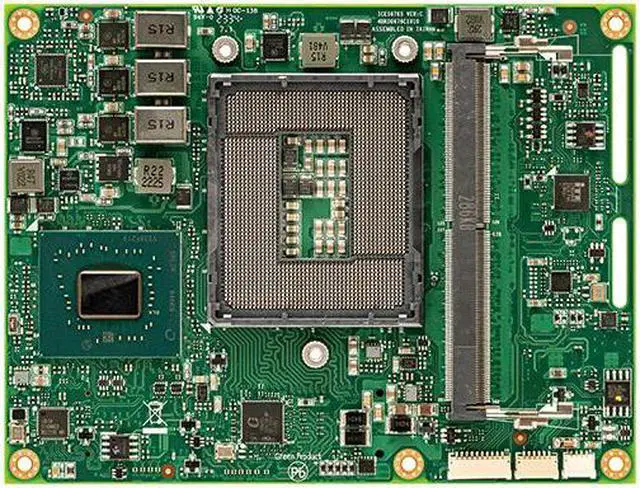

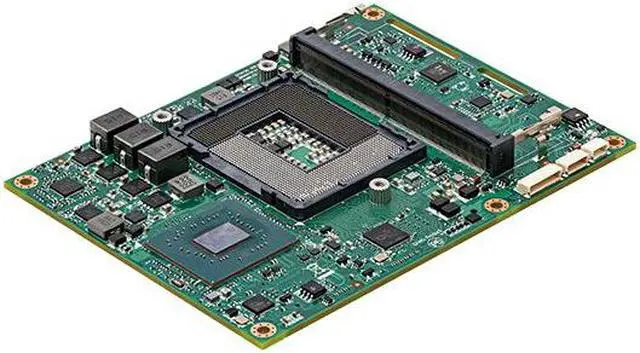

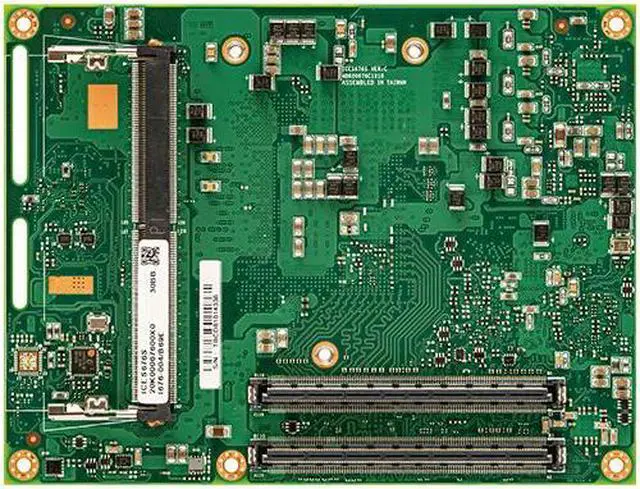

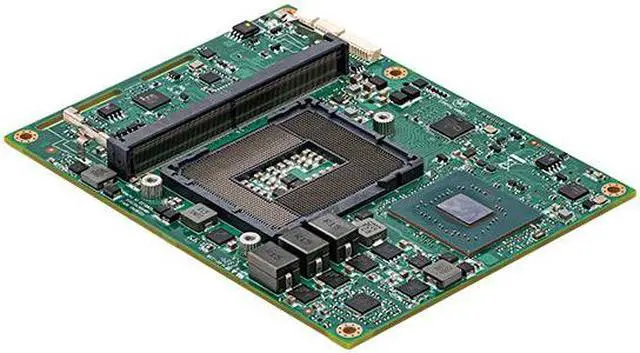

The ICES676S Serial is a COM Express Type 6-pinouts Basic module which featuring Intel^® 610 series PCH chipset supports 12/13th Generation Intelv Core/ Pentium^®/ Celeron processors 2 channel DDR5 with non-ECC SO-DIMM 4800MHZ up to 64GB. The ICES676S integrated Intel^® UHD Graphics engines supports or expands via PCI Express Graphic 1 x 16 lanes and support three DDI (Digital Display Interface) to follow the standard of PICMG COM3.0 specification. It allows type 6-pinout Carrier board to implement DDI and legacy VGA interface.

With the 125 x 95mm Type 6 COM Express modules. The high performance ICES676S COM Express Basic Module supports 1 x GBE LAN, 4 x USB3.1 GEN1, 8 x USB2.0, 4 x SATA3.0, 2 x UART(TX/RX), HD Audio, 8 bit DIO, TPM (Optional) ICEB 8060 as well as customized solution for your embedded projects.

AIoT Software free download https://www.aiotcloud.dev/en/community-version

Specifications

CPU / Chipset

• 12/13th Generation Intel^® Core/ Pentium^®/ Celeron Processors, Socket LGA 1700 , PCH H610

Main Memory

• Dual Channel DDR5 262-pin SO DIMM, up to 64GB 4800MHz, non ECC

Display

• Intel^® UHD Graphics 770 Xe graphics core


• 1 x VGA(default)/LVDS/eDP channel(optional) , resolution up to 1920x1080@60Hz


• DDI x 2 Port configurable to HDMI1.4/DVI/Display port (HDMI 1.4 up to 4096 x 2160@30Hz/24bpp, DVI up to 1920 x1200@60Hz, DP up to 4096 x 2304 @ 60Hz)

BIOS

• AMI (UEFI)

COM Express Connector

• AB :VGA( LVDS/eDP co-lay), 1 x GbE LAN, 8x PCIe x1, HD Audio, 4 x SATA III, 8 x USB2.0, LPC Bus, SM Bus/I2C, 2 x COM, GPIO 8bit


• CD : DDIB, DDIC, 1 x PCIe x16, 2 x PCIe x1, 4 x USB3.2 GEN1

Power Requirement

• +12VDC, +5Vsb


• Support both AT and ATX power supply mode

Dimensions

• 125mm x 95mm=4.92in x 3.74 in

Environment

• Board level operation temperature : 0°C to 60°C


• Storage temperature : -40C to 85C


• Relative humidty:

  0% to 90% (operating, non-condensing)

  0% to 90% (non-operating, non-condensing)

Certifications

• Meet CE / FCC Class B

Warranty

• 2 year global warranty
