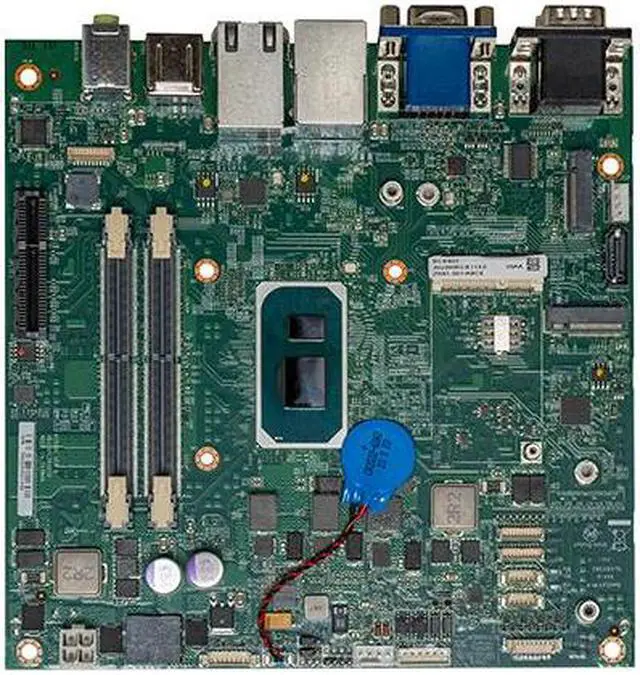

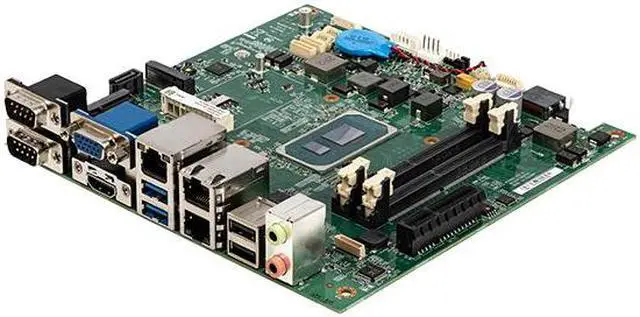

NexCOBOT Industrial Motherboard | Single board computer RCB601 Intel® Tiger Lake-UP3 11th Core i5 Processors DDR4-3200 SO-DIMM up to 64GB

RCB601 is equipped with Tiger Lake-UP3 11th generation Intel® Core™ i5 processor, with high-performance AI computing capabilities, High-performance architecture x86-64 for visual recognition applications.

The I/O of various devices can be connected to various devices. Supports real-time I/O for environmental sensors (GPIO, COM).

Instant messaging software communicates between software components and devices.

RCB601 has rich IO interfaces, which can easily meet the diversified needs of robots, instead of being limited to simple handling robots AMR is suitable for application services in different fields of various industrial enterprises, various manufacturing industries, building parks, medical institutions, ecommerce logistics related industrial services.

The introduction of AMR can not only greatly improve work efficiency and reduce the fixed cost of operating personnel! It also conforms to current affairs applications such as "assisted labor-saving handling", "human-machine collaborative operation", "AMR/AGV", "IoT Internet of Things concept" and "epidemic.

AIoT Software free download https://www.aiotcloud.dev/en/community-version

Specifications

CPU

11th Generation Intel® Core™ I5 Processors

i5-1145G7E (4C8T, 1.5GHz, up to 4.1GHz, TDP-up 28W) optional

Main Memory

Support dual channel DDR4 with non-ECC SO-DIMM 3200 MHZ up to 64 GB

Display Option

1 x VGA (resolution up to 1920 x 1080@60Hz)

1 x HDMI 1.4b (resolution up to 3840 x 2160@30Hz)

Tip: Multiple display : (VGA+HDMI).

System

4 x USB3.2 (Gen1), 4 x USB2.0

3 x RS232, 1 x RS232/422/485

Realtek HDA Codec

1 x Front panel header, 8 bit digital I/O(4In/4Out), 2 x DI/DO

WDT, SMBus, Onboard TPM.

1 x Fan connector.

Storage

1 x SATA 3.0, 1 x SATA power connector (+5V).

1 x M.2 2242/2280 Key B (support SATA/PCIe).

Expansion Slot

1 x Full size mPCIe x 1 with nano SIM (support PCIe/USB2.0 Interface)

1 x M.2 3052/3042 Key B (for LTE 5G),(support PCIe/USB3.2 Gen1) with nano SIM

1 x PCIe x 4

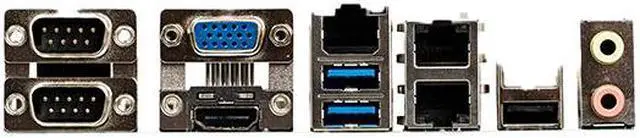

Rear I/O

2 x USB3.2 (Gen1), 2 x USB2.0

1 x VGA, 1 x HDMI

2 x DB9 (COM 1:RS232/422/485, COM2: RS232).

3 x GbE LAN

> LAN1 : Intel® I219-LM

> LAN2,3 : Intel® I226V

1 x 2 ports HD Audio Jack (Mic-in, Line-out).

Internal I/O

2 x USB2.0.

2 x COM ports: COM3, COM4: RS232

1 x Front panel header, 8 bit digital I/O(4In/4Out)

2 x DI/ DO, WDT, SMBus

HA Audio:

- 1 x Line-out, 1 x Mic-in

1 x 4Pin DC In (+24V)

Power Requirement

1 x 4-pin (2x2) ATX Power connector

- Input power DC 24V

Support both AT and ATX power supply mode

Dimensions

6.7”x6.7” (170mm x 170 mm)

Environment

Board level operation temperature: 0°C to 60°C

Storage temperature: -40C to 85C

Relative humidity:

0% to 90% (operating, non-condensing)

0% to 90% (non-operating, non-condensing)

Certifications

CE/FCC Class A

Support OS

Windows 10 (64bit)

Ubuntu 18.04.05/Kernel 5.4

OS Support Lists

Windows 10 , Ubuntu 21.04.0/Kernel 5.8

Weight Information

1Kg

Warranty

2 year global warranty
