Overview

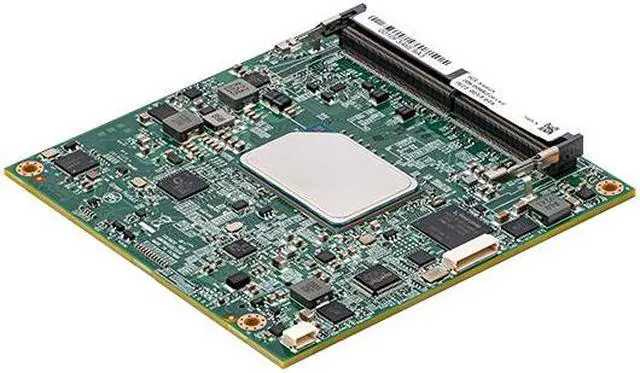

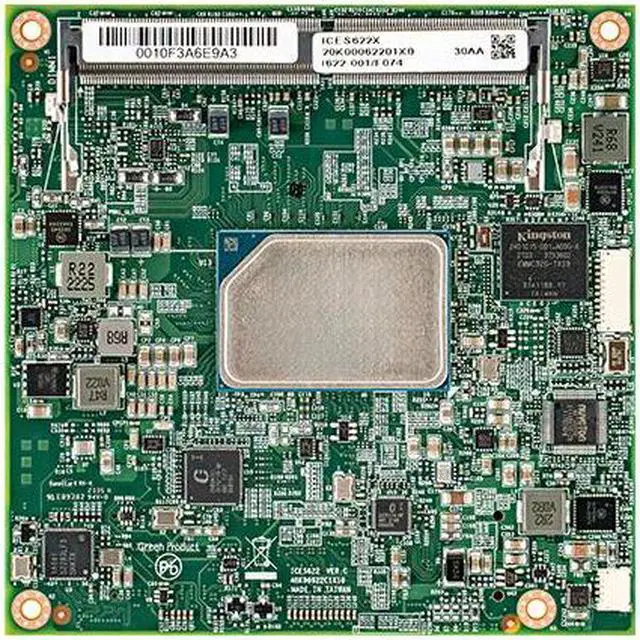

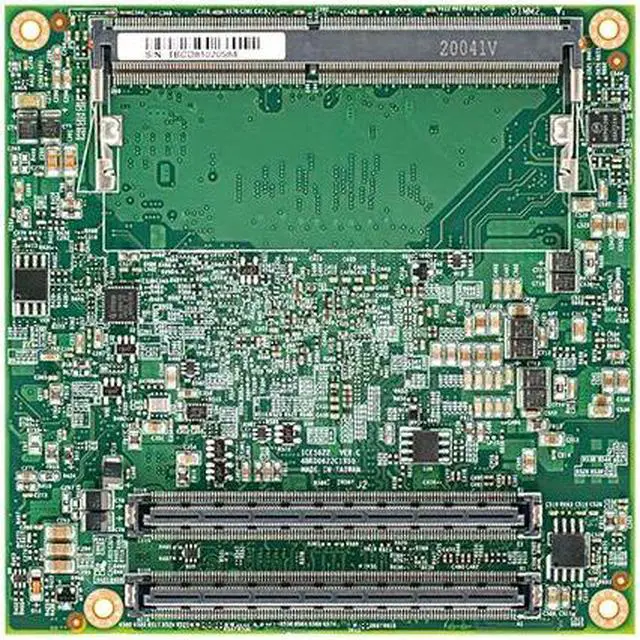

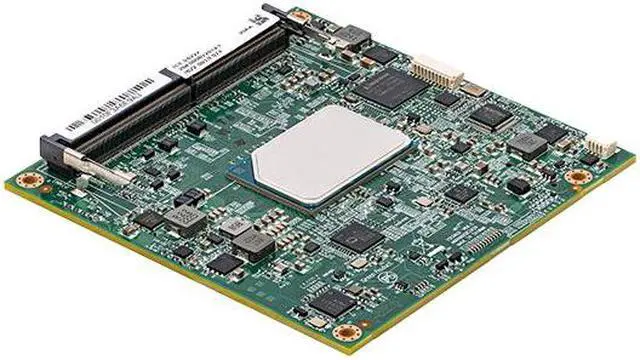

The ICES622X is a COM Express Type 6 compact size module that features Intel® Atom X6000 processor, and two DDR4 SO-DIMM memory socket without ECC support, up to 32GB 3200MHz. The ICES622X integrates with Intel^® Gen11 LP Graphic to support dual displays of VGA resolution up to 1920 x 1200 resolutions and 2DPs link with HDMI1.4a/DP1.2 configurations. The high performance ICES622X COM Express module supports SATA, USB2.0 & USB3.2/VGA/DP (HDMI)/PCIex1.

AIoT Software free download https://www.aiotcloud.dev/en/community-version

Specifications

CPU Support

• Intel^® Atom X6000 Firmly processor

Main Memory

• Two 260-pin SODIMM up to 32GB non ECC

BIOS

• AMI (UEFI)

Display Option

• Intel^® Gen11 LP Graphics


• 1 x VGA connector (resolution up to 1920x1080@60Hz)


• 1 x LVDS connector(resolution up to 1920x1080@60Hz)


• DDI 1/2 Port configurable to HDMI1.4/DVI/Display port


• 1.4 HDMI up to 4096 x 2160@30Hz/24bpp, DVI up to 1920 x1200@60Hz, DP up to 4096 x 2304 @ 60Hz)

COM Express Connector

• AB :LVDS:(LVDS/eDP co-lay), VGA:(VGA/DDI port2 co-lay), 1 x GbE LAN, 6x PCIe x1, HD Audio, 2 x SATA III, 8 x USB2.0, LPC Bus, SM Bus/I2C, 2 x COM, GPIO 8bit


• CD : DDI1, DDI2, 2 x USB3.2

Power Requirement

• +12VDC, +5Vsb


• Support both AT and ATX power supply mode

Dimensions

• 95mm x 95mm

Environment

• Board level operation temperature : -40C to 85C


• Storage temperature : -40C to 85C


• Relative humidity:

  0% to 90% (operating, non-condensing)

  0% to 95% (non-operating, non-condensing)

Certifications

• Meet CE / FCC Class B
