NexAIoT Industrial PC | Factory automation NISE Hi-Performance Line NISE3800E-OLS Intel® Core i5-6500TE 2.3GHz 2 x 8G DDR4 2400 SO-DIMM

Integrated with 6th & 7th generation Intel^® Core i5 processors, NISE 3800 series is the fanless PC designed for industrial applications which demand high CPU and graphics performance. NISE 3800 supports up to 32G DDR4 memory and have several options on storage devices like M.2, HDD, mSATA or SSD. NISE 3800 supports wide range of DC input from +9V to 30V DC input, and can be operated in an extended operating temperature range between -5 to 55 Celsius degree. For extended module availability, NISE 3800 also designed two internal mini-PCIe sockets to support IoT applications (integrate with optional GbE LAN, Wi-Fi, 4G LTE module) and common communication applications (integrate with optional GPIO, RS232/422/485 module).

AIoT Software free download https://www.aiotcloud.dev/en/community-version

NEXCOMs NISE 3800 series of fanless computers consolidates high computing power, enhanced expandability and connectivity for industrial requirements. Supporting 6th and 7th Intel® Core, Pentium®, and Celeron® processors paired with Intel® Q170 Chipset, the NISE 3800 series delivers advanced processing and powerful image manipulation. Offering superior connectivity and function expansions with maximized endurance and signal quality, the series easily adapts to control CNC machinery, improve machine inspection, and facilitate edge server solutions.

The fanless computers NISE 3800 are meant to smooth the path for automatic optical inspection machines. Intel® HD Graphics engine allows the NISE 3800 to conduct 2D and 3D visuals to fulfill different speeds and precision requirements. Equipped with ten USB3.0 and three GbE LAN ports, the NISE 3800 series is effortlessly connected to high speed cameras to process images for Automatic Optical Inspection applications requiring high computing and graphic performanc.

The NISE 3800 series represents an excellent IoT Edge Server solution. In edge computing, the fanless computers gather data from all connected devices on the factory floor to analyze in real-time. Then, they transmit required data to a remote location reducing network traffic. And finally, with RAID 0 and 1 support, they secure data storage locally increasing availability and redundancy.

Specifications

CPU Support

• Intel® Core i5-6500TE 2.3GHz

Main Memory

• 2 x 8G DDR4 2400 SO-DIMM

Display Option

• Three independent display

  - HDMI + DP+ DVI-D


• Dual independent display

  - HDMI + DP

  - HDMI + DVI-D

  - DP + DVI-D

Front I/O Interface Status LEDs

• 3 x LAN active LEDs


• 2 x GPO status/COM1/2 TX/RX LEDs


• 1 x HDD access LEDs

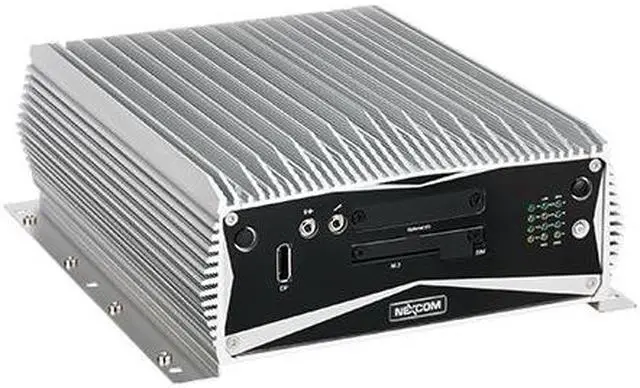

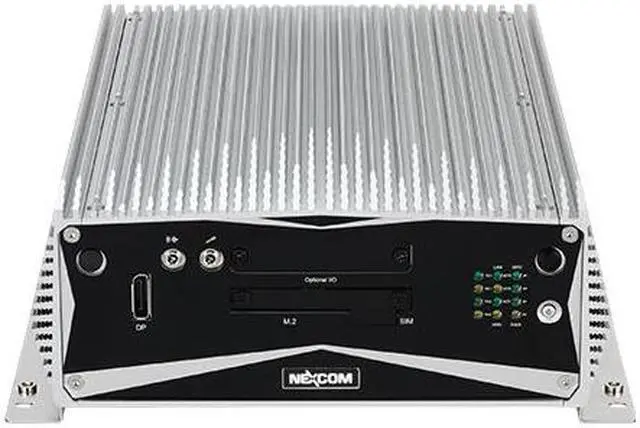

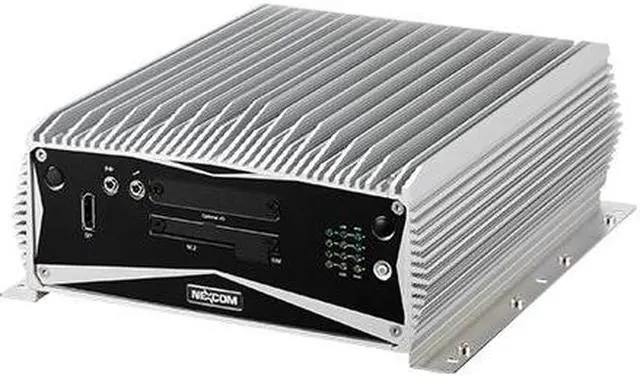

Front I/O Interface

• 1 x ATX power on/off switch


• 1 x DP


• 1 x Line-out and 1 x Mic-in


• 2 x Antenna holes


• 1 x External M.2 2242 Key M socket


• 1 x SIM card holder

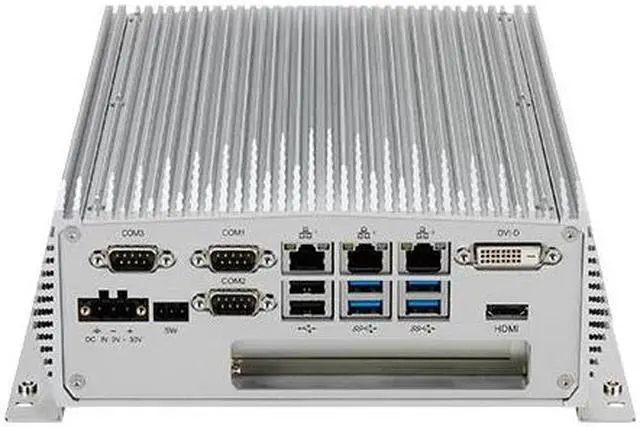

Rear I/O Interface

• 3 x DB9

  - COM1/2: RS232/422/485 auto flow control

  - COM3: RS232


• 4 x USB 3.0 ports (900mA per each)


• 2 x USB 2.0 ports (500mA per each)


• 1 x DVI-D port


• 1 x HDMI port


• 3 x Intel® I210-IT GbE LAN ports; support WoL, teaming and PXE


• 1 x 2-pin remote power on/off switch


• +9V to 30V DC input

Storage Device

• 1 x mSATA (256G preinstalled)


• 1 x 2.5 HDD (SATA 3.0)

Expansion Slot

• One PCIe x4 expansion slot

  - Add-on card length: 169mm max.

  - Power consumption: 10W/slot max.


• 2 x Internal mini-PCIe socket support optional


• Wi-Fi/3.5G/mSATA/Fieldbus

Power Requirements

• AT/ATX power mode (default: ATX power mode)


• Power input: +9 to +30V DC


• Power adapter: optional AC to DC power adapter (24V DC, 120W)

Dimensions

• 215 mm(W) x 272mm (D) x 93mm (H) without wall mount bracket (8.5" x 10.7" x 3.7")

Construction

• Aluminum and metal chassis with fanless design

Environment

• Operating temperature:

  Ambient with air flow: -5°C to 60°C, uses wide temperature memory and storage (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)


• Storage temperature: -20°C to 85°C


• Relative humidity: 10% to 93% (non-condensing)


• Shock protection:

  - HDD: 20G, half sine, 11ms, IEC60068-2-27

  - M.2: 50G, half sine, 11ms, IEC60068-2-27


• Vibration protection with HDD condition:

  - Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64

  - Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6

Certifications

• CE approval- EN61000-6-2- EN61000-6-4


• FCC Class A


• UKCA

OS Support Lists

• Windows 7 32-bit and 64-bit


• Windows 8.1 32-bit and 64-bit


• Windows 10 64 bits

Weight Information

• Gross weight: 5.9kg


• Net weight: 4.5kg
