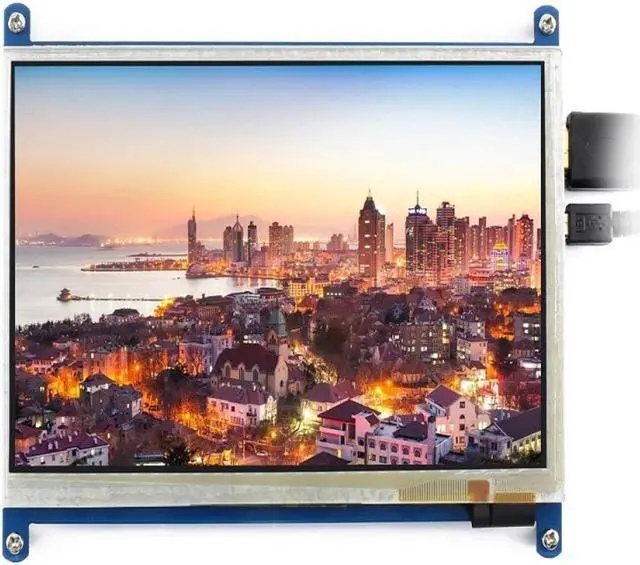

Waveshare 800*480 7" Capacitive Touch Screen LCD type B for Raspberry Pi Black Computer Monitor Supports Windows 10/8.1/8/7

Demo Board Type:ARM
Certification:CE
Origin:CN(Origin)
Model Number:7inch HDMI LCD (B)
Size:7inch
Resolution:800*480
Display Port:HDMI
Consumption:Low Power
Touch Type:Capacitive
Touch Points:5-Points
Touch Port:USB

DESCRIPTION
7" HDMI Touch Display
Connection Examples
Working With Raspberry Pi 4
Working With Raspberry Pi 3B+
Working With Raspberry Pi Zero W
Working With Mini PC
Display
Touch Control
1) up to 5-points touch, depending on the operating system.
Demystifying Design Details
EMI and ESD protection, in compliance with CE certification
VCOM voltage adjustment for optimizing display effect
USB protocol translator, converting the touch signal into standard multi-points touch protocol to achieve smooth multi-points touch control
USB and power input solder pads, breakout USB interface, easy for connecting external power supply
Backlight adjustment solder pads for PWM signal input, so as to control the backlight brightness, increasing the lifetime of the display
Appearance And Dimensions
PACKAGE CONTENT
Weight:
0.318 kg
7inch HDMI LCD (B) x1
HDMI cable x1
HDMI to Micro HDMI Adapter x1
USB type A plug to micro B plug cable x1
RPi screws pack (4pcs) x1
Quick start sheet x1
