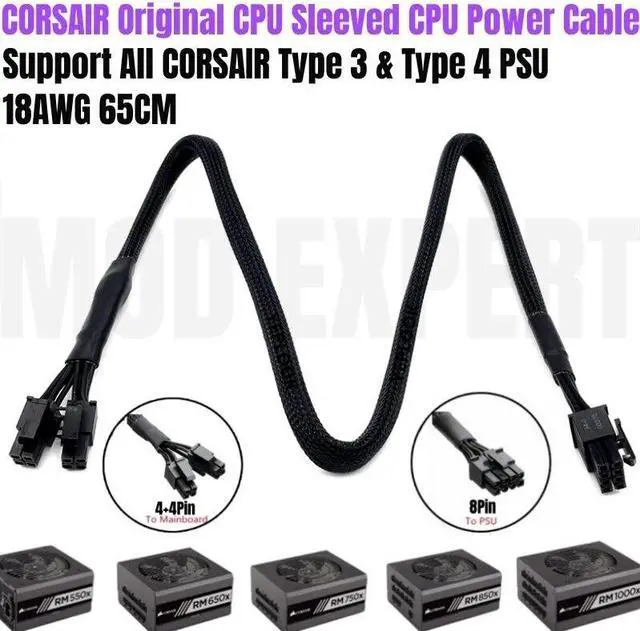

YEPLOOK PSU 8Pin to 4+4Pin CPU Cable Sleeved Net 60CM 18AWG for Corsair RM650x RM750x RM850x RM1000x GOLD Type 4 Modular Power Supply

YEPLOOK PSU 8Pin to 4+4Pin CPU Cable Sleeved Net 60CM 18AWG for Corsair RM650x RM750x RM850x RM1000x GOLD Type 4 Modular Power Supply

*Pre-Purchase Notes:

1. All cables are New.

2. All pictures are for illustration purposes only, actual products may vary according to new production date and batch.

3. Different Brands & Series PSUs generally use unique pinouts, mix using may cause damage. Please check compatiblity in the below list or chat with us before you buy to ensure proper operation.

Description

Interface: PSU 8Pin to CPU 4+4Pin

Cable Gauge: UL1007 18AWG standard tin-coating copper wire with premium Sleeved Net.

Cable Length: 60 CM

Adavantages:

1. Suitable for chassis wiring.

2. High current terminal & up to 10A

3. Easy to bend with good cable management.

4. FLEXIBLE & DURABLE to prevent corrosion and provide a long lifespan.

5. The 4Pin CPU cable can supply up to 155 watts & the 8-pin CPU cable can supply up to 235 watts.

CPU 8Pin male end to plug into the power connector of power supply (8Pin male connector is ATX 8 pin, not pci-e 8 pin. )

EPS 8Pin (4+4Pin) male end to plug into the Motherboard. (Detachable EPS 8Pin (4+4P) could be used as EPS ATX 8Pin or P4 ATX 4Pin by sliding on/off the 4Pin. )

The cable does not work with GPU graphics card. CPU 8Pin and EPS 4+4Pin male cannot be used interchangeably!

Fully Compatible: Guaranteed support Corsair All TYPE 4 Modular Power Supplies, also backward compatible with TYPE 3.

Type 3:

CORSAIR AXi: AX760i, AX860i, AX1200i, AX1500i.

CORSAIR HXi: HX750i, HX850i, HX1000i, HX1200i

CORSAIR HX Gold: HX650, HX750, HX850, HX1050

CORSAIR RM: RM450, RM550, RM650, RM750, RM850, RM1000 (Old & Yellow label).

CORSAIR CX-M: CX850M, CX750M, CX600M, CX500M, CX450M, CX430M.

CORSAIR CX: CX550, CX650, CX750.

CORSAIR CS-M: CS850M, CS750M, CS650M, CS550M, CS450M.

CORSAIR TX-M: TX850M, TX750M, TX650M, TX550M.

Type 4:

CORSAIR RMx: RM550x RM650x RM750x RM850x RM1000x.

CORSAIR RMi: RM550i RM650i RM750i RM850i RM1000i.

CORSAIR RMe: RM550e RM650e RM750e RM850e RM1000e.

CORSAIR RM (2019): RM450, RM550, RM650, RM750, RM850, RM1000 Platinum Version.

CORSAIR SF: SF450, SF600, SF700.

CORSAIR HX Platinum: HX750, HX850, HX1000, HX1200 Platinum Version.

CORSAIR AX1600i.

Not for CORSAIR Type 1 and Type 2 power, and other brands and models. Please Check with us if your power is not in the list.

Package List: 1x CPU Power Cable PSU 8Pin to 4+4Pin Sleeved Cable
