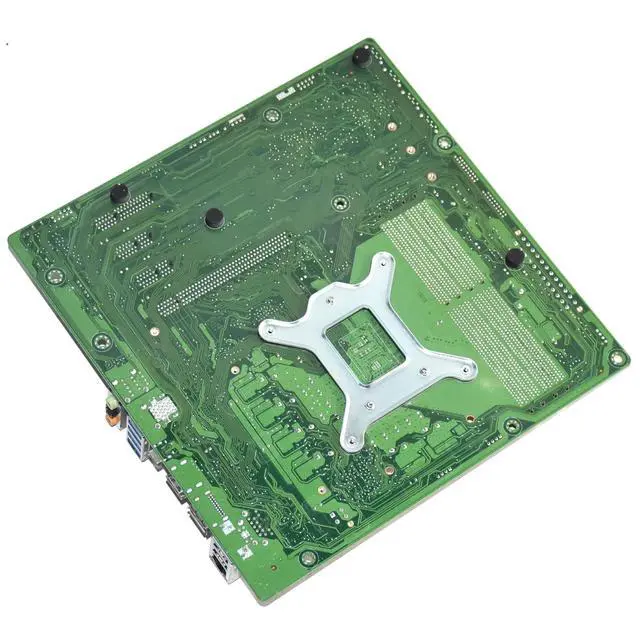

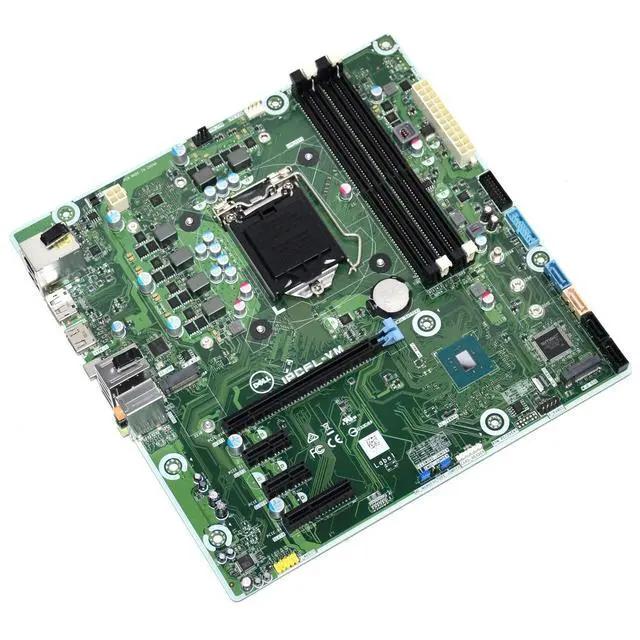

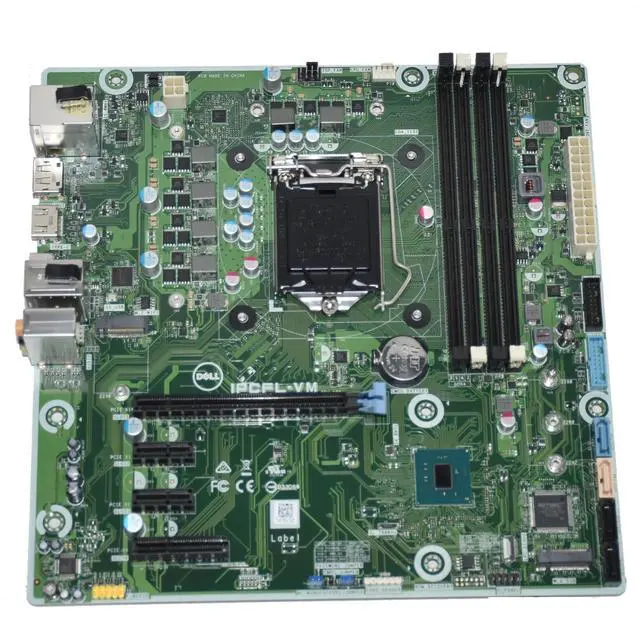

Dell XPS 8930 Motherboard Intel Z370 Socket LGA1151 DDR4 IPCFL-VM DF42J T2HR0

Brand: Dell

Part Number: T2HR0

MPN: T2HR0 / 0T2HR0 / DF42J / IPCFL-VM

Type: Desktop Motherboard

Compatible Brand: For Dell

Compatible Product Line: For Dell XPS

Compatible Model: For Dell XPS 8930

CPU Support

Socket: Intel LGA 1151

Chipset: Intel Z370

Supported CPUs:

8th Gen Intel Core only (Coffee Lake)

Intel Core i3 (non-K)

Intel Core i5 / i5K

Intel Core i7 / i7K

Memory

Type: DDR4 UDIMM (Non-ECC, Unbuffered)

Slots: 4 × DIMM

Max RAM: 64 GB

Speeds:

Up to 2400 MHz with Core i3

Up to 2666 MHz with Core i5/i7

Storage Options

SATA Ports: 4 × SATA III (6 Gbps)

M.2 Slots:

1 × M.2 2280: NVMe or SATA SSD (bootable)

1 × M.2 2230: For Wi-Fi/Bluetooth module only

Expansion Slots

1 × PCIe x16 (for GPU)

1 × PCIe x4

1 × PCIe x1

Power Connectors

1 × 24-pin ATX main power

1 × 8-pin CPU power

Internal Headers

Front panel header (power switch, HDD LED, etc.)

1 × USB 3.0 header

1 × USB 2.0 header

1 × CPU fan header

23 system fan headers

Rear I/O Ports

4 × USB 3.1 Gen 1

2 × USB 2.0

1 × RJ-45 Gigabit Ethernet

1 × HDMI out (from CPU iGPU)

1 × DisplayPort (from CPU iGPU)

1 × PS/2 combo port

Audio (Realtek ALC codec):

Line-in

Line-out

Microphone
