Alphacool VPP Apex PC Water Cooling Pump - PWM Speed Control, 2500-4500 RPM, 340L/h, SATA Power With 4-pin PWM Connector, D5 Compatible

The Alphacool Apex VPP is a powerful pump that is compatible with the most popular D5/VPP tops and reservoirs. Via the 4-pin fan connector, the speed of the pump can be read and controlled via PWM signal. The Apex VPP is supplied with power via the SATA connector.
Features Alphacool's Apex VPP doesn't use a spherical bearing and relies on a ceramic axle. The motor's coils have been moved from the inside to the outside. These changes have the effect that the pump is fundamentally more stable and smoother running, and any vibrations that arise have been significantly reduced. Another positive side effect is that power consumption has been almost halved as a result.

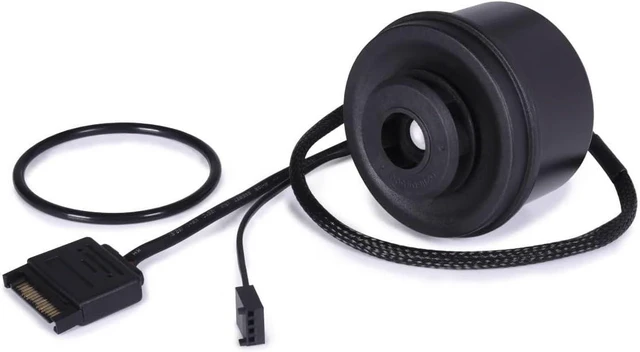

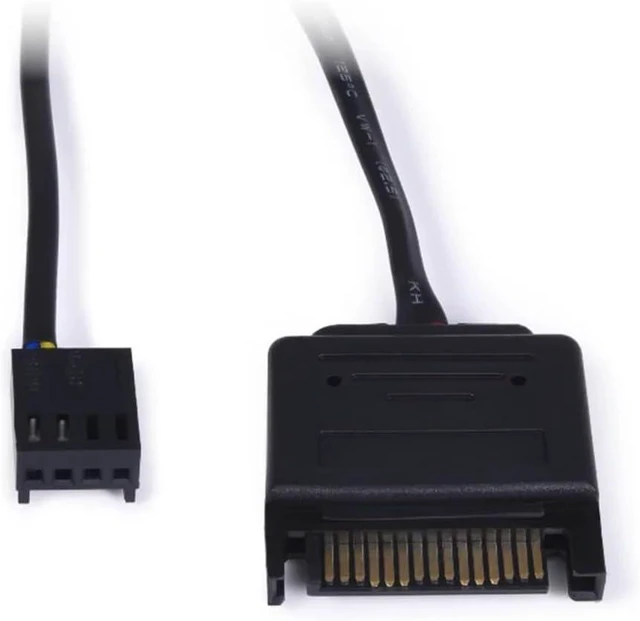

Power supply Compared to Alphacool's Eispumpe, the power is not supplied via a 4-pin Molex connector. Instead, the Apex VPP pump is connected to the power supply using a SATA connector.

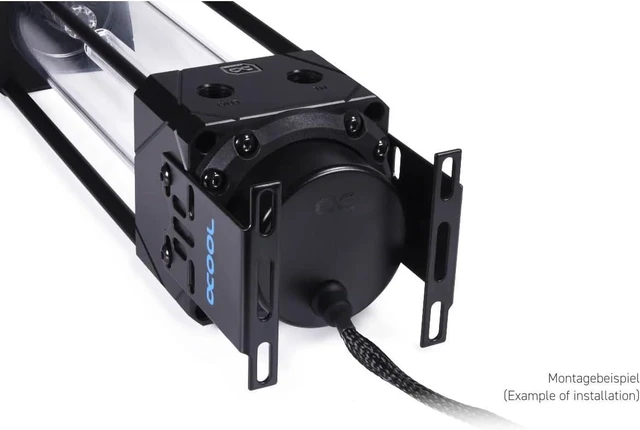

Control The Apex VPP pump has a 4-pin fan connector that connects to the motherboard or to an external controller. This allows you to control the speed range of the pump via PWM and read out the RPM signal. Compatibility The Apex VPP pump is compatible with the most popular D5/VPP pump tops and reservoirs.
Note on application: Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in premature pump failure.
Dimensions (L x W x H) 65 x 65 x 41mm Connections 4-Pin PWM | SATA Power Rotational speed 2500 - 4500 RPM Cable lengths 4-Pin PWM - 48cm | SATA - 48cm Operating voltage 8-13V DC / 14W IP32 Starting voltage 12V DC Maximum pumping head 4.25m Maximum flow rate 340L/h Maximum working temperature 60°C Weight 276g Power consumption: 14W See More Product information Technical data
