$16.84
Ships from Hong Kong.
Meet Your Seller

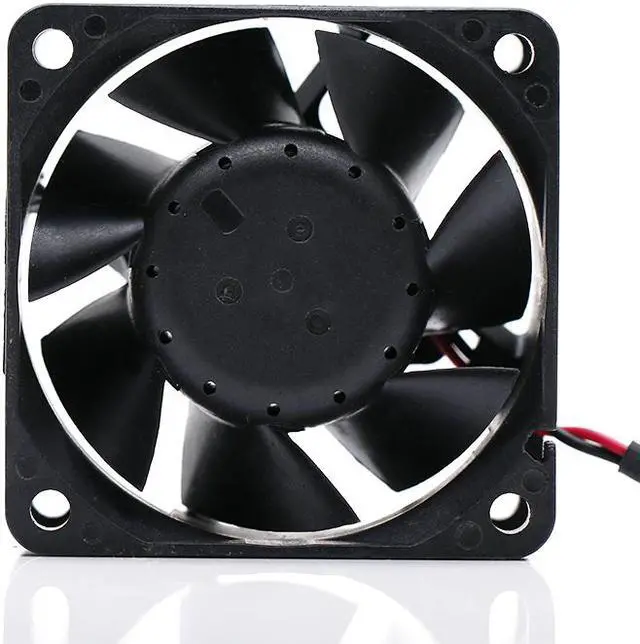

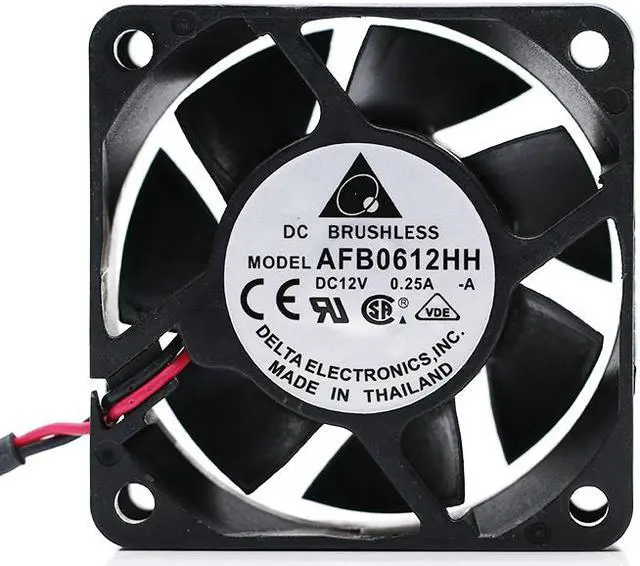

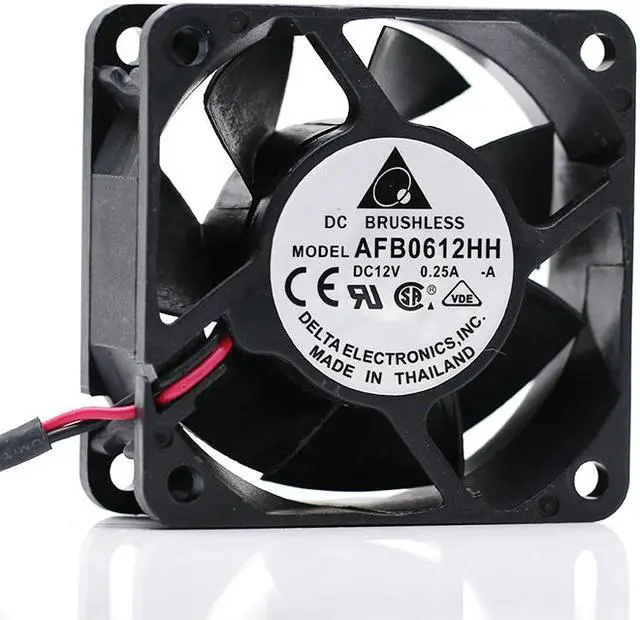

1pcs Delta AFB0612HH 6025 6CM 0.25A double ball bearing cooling fan 60*60*25mm
- Item #: 9SIV0MWE0F0105
- Mfr. Part #: 19707-hhsw2MpRt
- UNSPSC: 40101604
- Hydro Bearing
+
+
Overview
Specs
Reviews

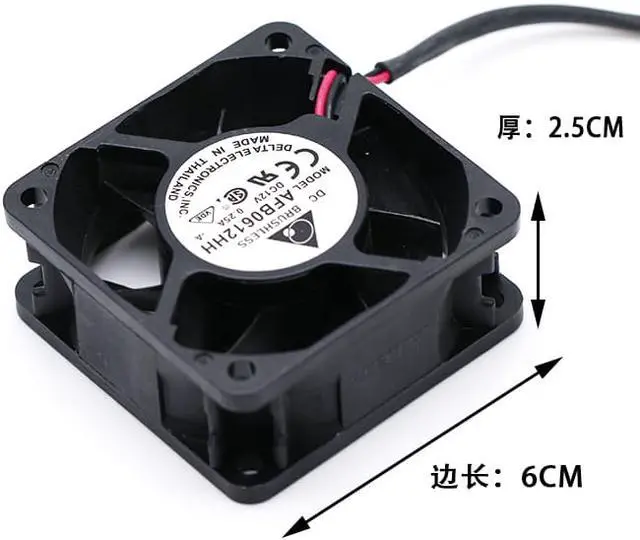

[appearance size]: 60 × 60 × 25mm[rated voltage]: DC12V[voltage
range]: dc 7.0 v- 14.0 v[input power]: 0.25A
(nominal current) [rated speed]: 5000 r. p.
m[temperature range]: - 10..
70 ° C[life expectancy]: L10 life expectancy 40000 hours at 25 °
C[bearing structure]: maintenance
double ball bearing[rotation direction]: the wind is discharged from the bracket rotates counterclockwise facing the rotor[wiring mode]: + Red Black Blue (- foo speed measuring line also has - roo stop alarm, please note it when shooting)[maximum air volume]: 17.1
m3 / h[motor protection]: fault level protection locked rotor current protection[minimum wind pressure]: 0..
105 pa[noise index]: 32.5
dB (a) [material]: fiberglass reinced plastic, PBT shell, PA blade, with
environmental protection certification[function description]: electronic exchange outward rotor DC fan, complete electronic reversing component
range]: dc 7.0 v- 14.0 v[input power]: 0.25A
(nominal current) [rated speed]: 5000 r. p.
m[temperature range]: - 10..
70 ° C[life expectancy]: L10 life expectancy 40000 hours at 25 °
C[bearing structure]: maintenance
double ball bearing[rotation direction]: the wind is discharged from the bracket rotates counterclockwise facing the rotor[wiring mode]: + Red Black Blue (- foo speed measuring line also has - roo stop alarm, please note it when shooting)[maximum air volume]: 17.1
m3 / h[motor protection]: fault level protection locked rotor current protection[minimum wind pressure]: 0..
105 pa[noise index]: 32.5
dB (a) [material]: fiberglass reinced plastic, PBT shell, PA blade, with
environmental protection certification[function description]: electronic exchange outward rotor DC fan, complete electronic reversing component
