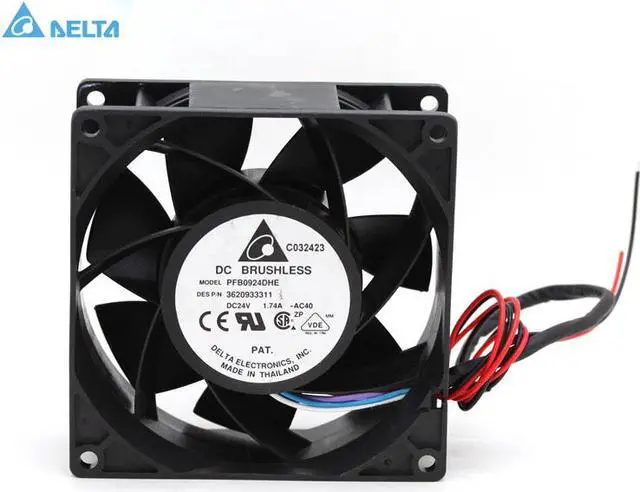

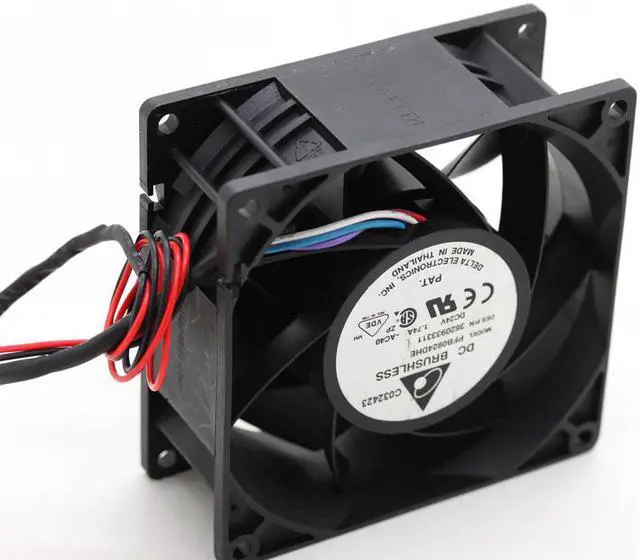

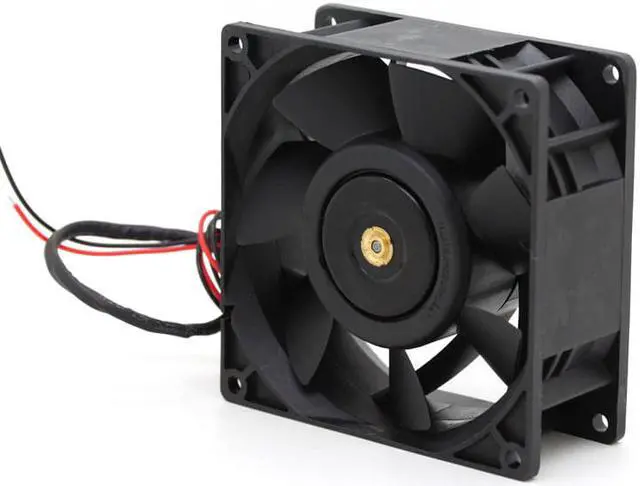

delta PFB0924DHE 9038 9238 9cm 24V 1.74A Server Inverter Cooling fan P/N:3620927311
- Item #: 9SIV0MWE0F1506
- Mfr. Part #: 21206--ofgT50Hk
- UNSPSC: 40101604
+
+
Overview
Specs
Reviews
: deltaProduct
Model]:
PFB0924DHE[Dimensions]: 92 × 92 × 38mm[Rated
Voltage]: DC24V[Voltage
Range]: DC 12.0 - 26.5V [Input
Power: 34.8W [Input
Current: 1.74A [Rated
Speed: 8000RPM
Temperature range: -25..
60 ° C[Life expectancy: 25 ° C L10 life expectancy of 40, 000
hours[Bearings]: maintenance-
double ball bearing[Rotation]: wind discharged from the stent, the face of the rotor counterclockwise rotation[Wiring]: +
red - blue signals: white
speed control: Purple[Maximum
air flow: 297.4 m3 / h 175.03CFM [Minimum pressure: 0...
192Pa[Noise indicators: 66.5 dB[Material
Material: Glass fiber reinced plastic, PBT housing, PA leaves, environmental certification[Function
Description]: electronically commutated external rotor DC fans, the
complete electronic parts[Weight]: 250g
Model]:
PFB0924DHE[Dimensions]: 92 × 92 × 38mm[Rated
Voltage]: DC24V[Voltage
Range]: DC 12.0 - 26.5V [Input
Power: 34.8W [Input
Current: 1.74A [Rated
Speed: 8000RPM
Temperature range: -25..
60 ° C[Life expectancy: 25 ° C L10 life expectancy of 40, 000
hours[Bearings]: maintenance-
double ball bearing[Rotation]: wind discharged from the stent, the face of the rotor counterclockwise rotation[Wiring]: +
red - blue signals: white
speed control: Purple[Maximum
air flow: 297.4 m3 / h 175.03CFM [Minimum pressure: 0...
192Pa[Noise indicators: 66.5 dB[Material
Material: Glass fiber reinced plastic, PBT housing, PA leaves, environmental certification[Function
Description]: electronically commutated external rotor DC fans, the
complete electronic parts[Weight]: 250g
