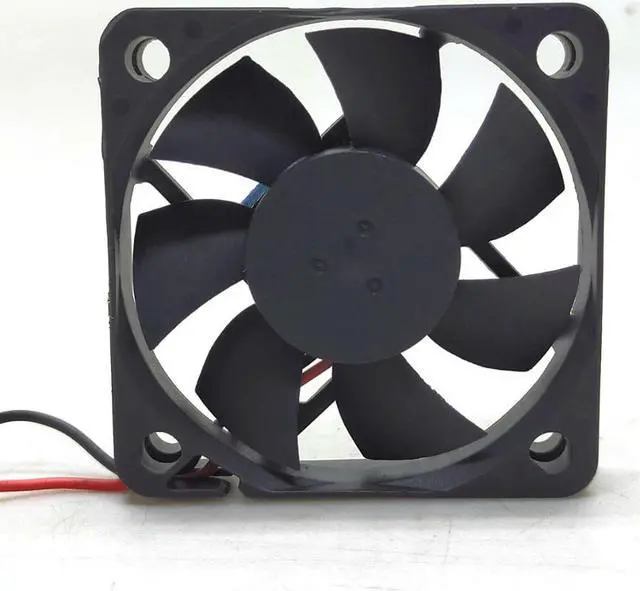

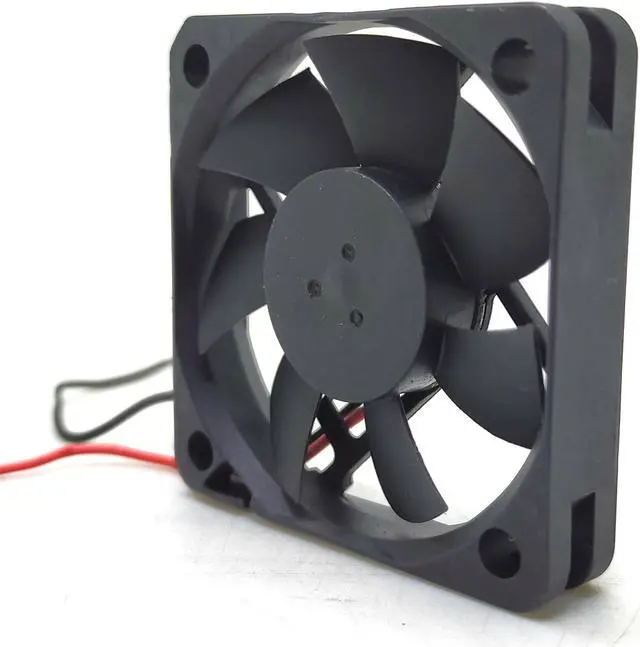

50mm fan Sunon 12V/24V 3D Printer Small Cooling Magnetic Suspension Bearing 5010 DC Fan Cooling Extruder Hotend

Note: Many stores sell counterfeit shoddy products profit. When you need to select products, you should consider not only the price, but also the credibility of the store. The SUNON fans we promise to sell are all genuine. You acquire a qualitative durable radial fan from SUNON () with an operating voltage of 12V (see tech. Data). These fans are much more suitable component cooling than axial fans, since radial fans can generate a significantly higher air pressure. Common axial fans are either too loud, large or cannot transport the air to the exit of the air duct / fuct. The cable length of the fans is almost 30cm no plug was installed. The fan has a third pin fan control / reading the speed (cable not available / installed). A series connection is possible (only with very high-quality radial fans), whereby 2 fans can be operated with 24V. Each fan is individually balanced, so that a very quiet running behavior can be guaranteed (this is the high price)! SAFE - This fan meets UL, CSA, TUV, CE guidelines has been approved by all to ensure a safe productive work environment

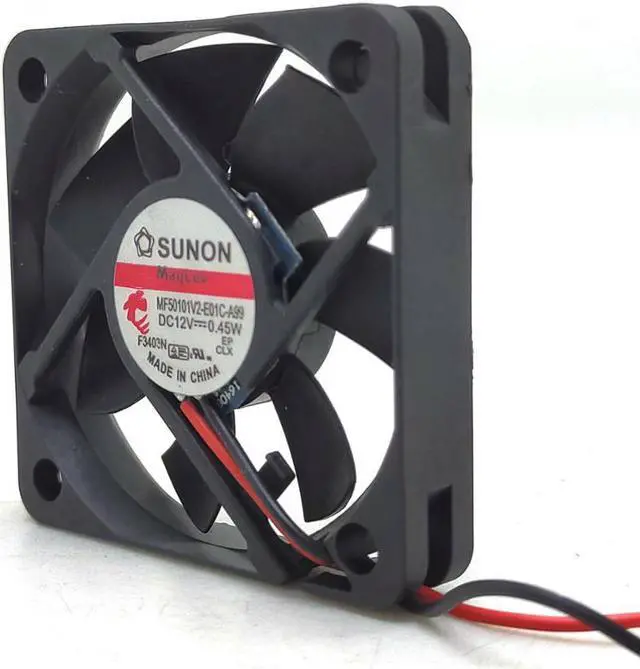

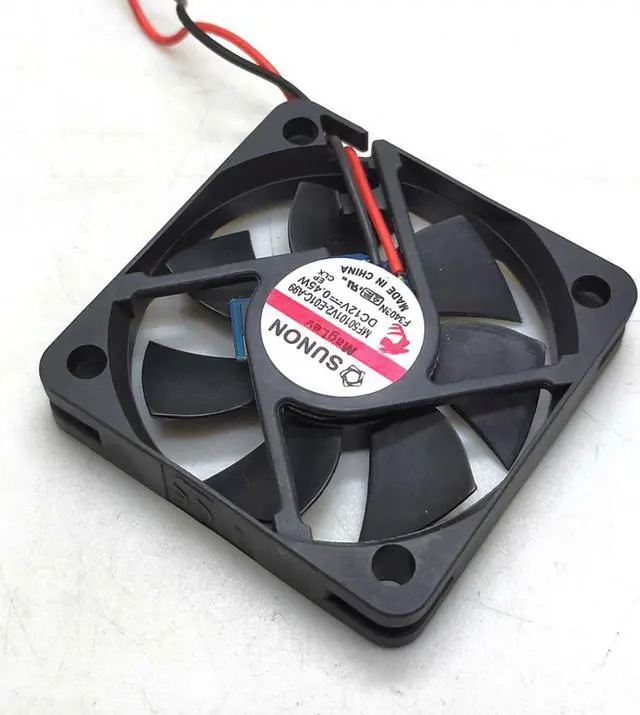

MF50101V2-E01C-A99 MF50101V2-E01C-A99Fan specification:
50x50x10Voltage: 12V
(voltage operation range: 8.5
- 13.5 v)Power: 0.45
wCurrent: 0.037
amb (± 10%)Air volume: 7.8 cfm (cubic foot)
Speed: 4600rpmWind
pressure: 0.07
inch-h2oNoise value: 21.4
dbaTemperature range: - 10.. 70 ° C (optimum temperature range)
Outgoing way: lead (two-wire stard is red positive black negative, special customized three-wire fan is red black positive negative unchanged yellow line is special signal line) enclosure)Fan material: 94vo flame retardant

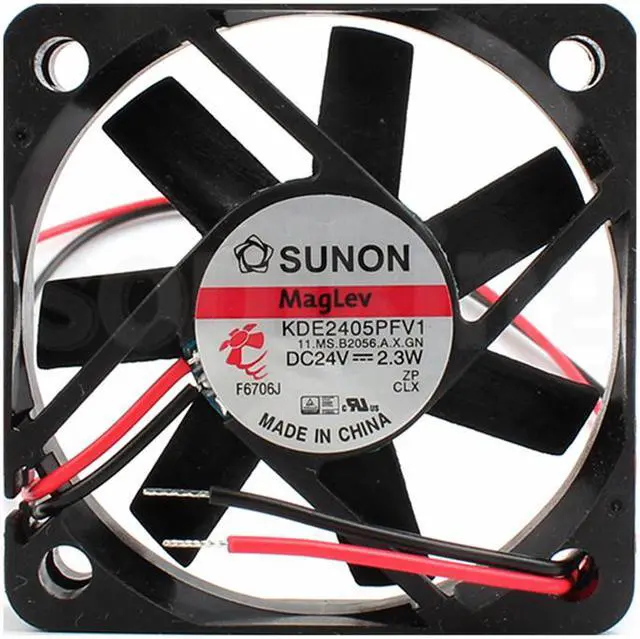

PBT plastic injectionBearing structure: Maglev bearing (use the attraction between the magnetic guide element the magnet to attract the whole fan blade rotor, so that the whole rotor fan blade can achieve the purpose of axis suspension between the bearings hanging in the air after running) KDE2405PFV1 Jianzhun kde1205pfv 2.11. ms. a.
gnFan specification:
50x50x10Voltage: 12V
(voltage operation range: 8.5
- 13.5 v)Power: 0.45
wCurrent: 0.037
amb (± 10%)Air volume: 7.8 cfm (cubic foot)
Speed: 4600rpmWind
pressure: 0.07
inch-h2oNoise value: 21.4
dbaTemperature range: - 10.. 70 ° C (optimum temperature range)
Outgoing way: lead (two-wire stard is red positive black negative, special customized three-wire fan is red black positive negative unchanged yellow line is special signal line) enclosure)Fan material: 94vo flame retardant
PBT plastic injectionBearing structure: Maglev bearing (use the attraction between the magnetic guide element the magnet to attract the whole fan blade rotor, so that the whole rotor fan blade can achieve the purpose of axis suspension between the bearings hanging in the air after running)
