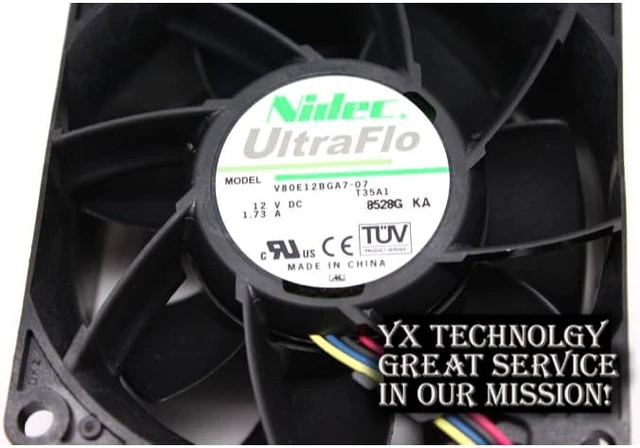

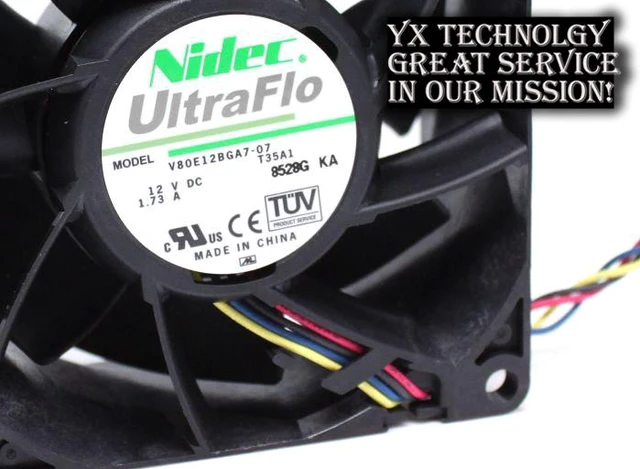

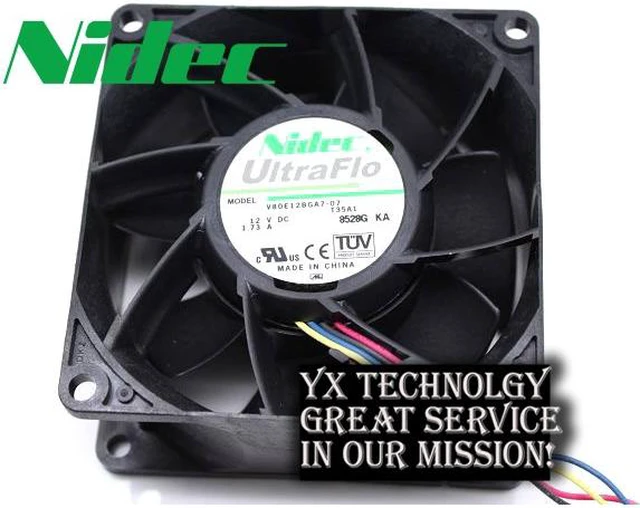

Nidec 80 * 80* 38mm 8038 double ball bearing fan high speed server V80E12BGA7-07 nidec

MODEL:
V80E12BGA7-07Origin: China
Dimension: 80 * 80* 38mm
Rated voltage: 12V
Working voltage: 10.2 - 13.8V
Rated current: 1.73A
Input power: 20.76W
Speed: 9000RPM ± 5% supports PWM intelligent speed
Plugs: standard interface board 4P, line length is about 40 cm
Fan frame: injection molding, glass fiber +VO PBT+30% grade flame retardant;
Blades: injection molding, glass fiber +VO PBT+30% grade flame retardant;
Fan rotation direction: from the fan blade direction to counterclockwise;
Operating temperature: -10 c to + 70 degrees Celsius;
Storage temperature: -40 degrees c to + 70 degrees Celsius;
Bearings: high-precision double ball bearing;
Power range: rated power supply plus or minus 15%;
Insulation resistance: more than 500 mohm;
Withstanding voltage: eign exchange leakage current 0.5 mA 500V/1 minutes;
Operating life time: when the ambient temperature is 25 degree 80, 000 hours. The fan is fan violence, Super air flow, sound is very large, the fan support the PWM technology of intelligent temperature control. Special fan, please carefully consider bee you take it. The fans are suitable use in devices such as computer room or server, due to fan support PWM temperature control technology, is also a very good choice overclocking players. A large quantity of excellent price
