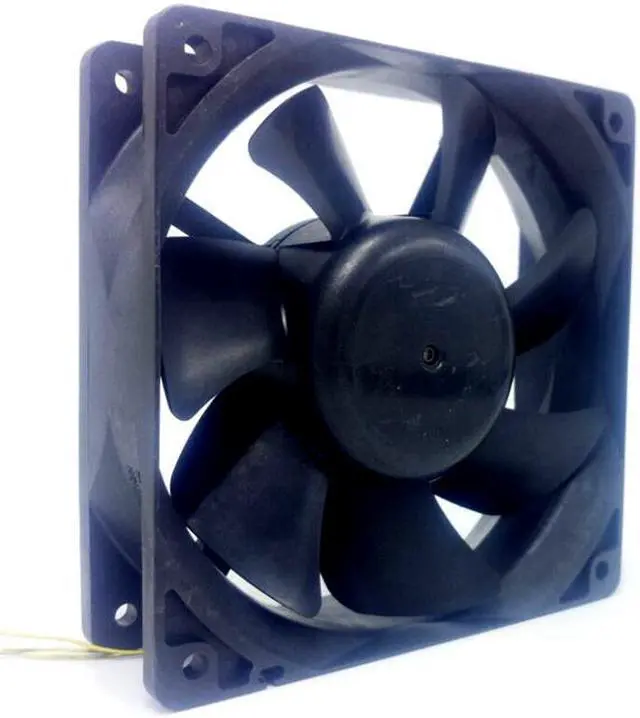

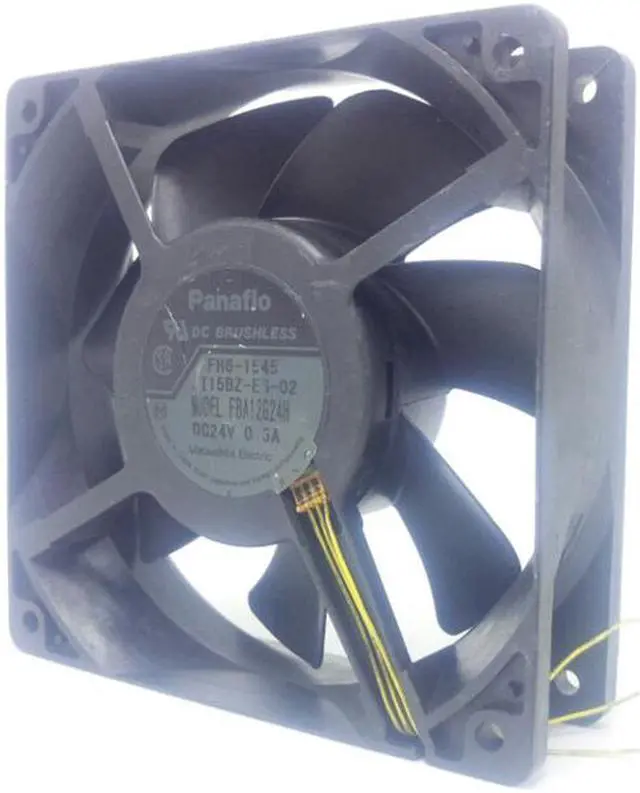

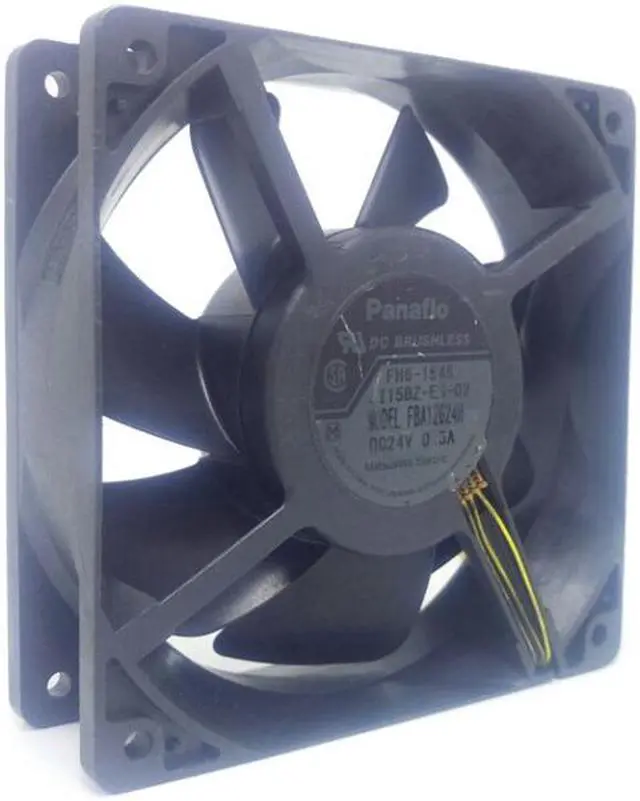

Original Panaflo 24V 0.3A 12CM 12038 Industrial Control Inverter Cooling Fan FBA12G24H 3-wire
- Item #: 9SIV0MWARA8136
- Mfr. Part #: FBA12G24H y
- UNSPSC: 40101604
- [rated voltage ] : DC24V
- [Voltage range] : DC16.0-28.0V
- [Input Power ] : 0.30A
- [rated speed ] : 2500 r.p.m
- [Temperature range] : -10 .. 70 °C
- [ Life expectancy ] : L10 life expectancy of 40,000 hours at 25 °C
- [ Bearing structure ] : Wear-resistant hydraulic bearing
- [ Direction of rotation ] : The wind is discharged from the bracket and rotates counterclockwise facing the rotor
- [Wiring method] : + red - black
- [Maximum air volume ] : 103.8CFM
- [ Motor Protection ] : Error protection and locked lock flow protection
- [Minimum wind pressure] : 0 .. 45Pa
- [Noise Indicator] : 41.5 dB(A)
+
+
Overview
Specs
Reviews
Panasonic (panaflo) 12038 120*120*38
[rated voltage ] : DC24V
[Voltage range] : DC16.0-28.0V
[Input Power ] : 0.30A
[rated speed ] : 2500 r.p.m
[Temperature range] : -10 .. 70 °C
[ Life expectancy ] : L10 life expectancy of 40,000 hours at 25 °C
[ Bearing structure ] : Wear-resistant hydraulic bearing
[ Direction of rotation ] : The wind is discharged from the bracket and rotates counterclockwise facing the rotor
[Wiring method] : + red - black
[Maximum air volume ] : 103.8CFM
[ Motor Protection ] : Error protection and locked lock flow protection
[Minimum wind pressure] : 0 .. 45Pa
[Noise Indicator] : 41.5 dB(A)
[rated voltage ] : DC24V
[Voltage range] : DC16.0-28.0V
[Input Power ] : 0.30A
[rated speed ] : 2500 r.p.m
[Temperature range] : -10 .. 70 °C
[ Life expectancy ] : L10 life expectancy of 40,000 hours at 25 °C
[ Bearing structure ] : Wear-resistant hydraulic bearing
[ Direction of rotation ] : The wind is discharged from the bracket and rotates counterclockwise facing the rotor
[Wiring method] : + red - black
[Maximum air volume ] : 103.8CFM
[ Motor Protection ] : Error protection and locked lock flow protection
[Minimum wind pressure] : 0 .. 45Pa
[Noise Indicator] : 41.5 dB(A)
