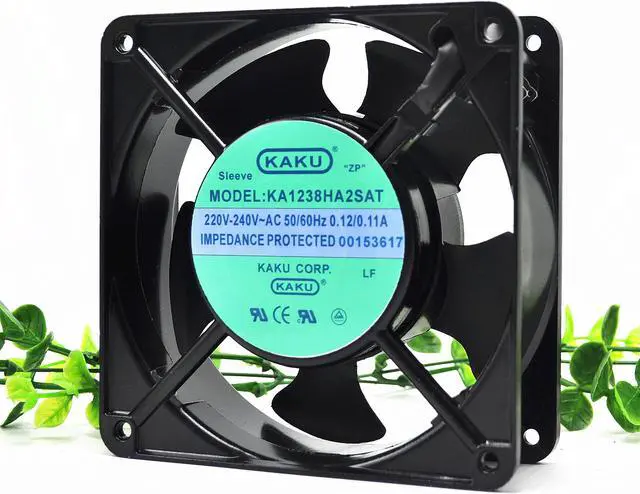

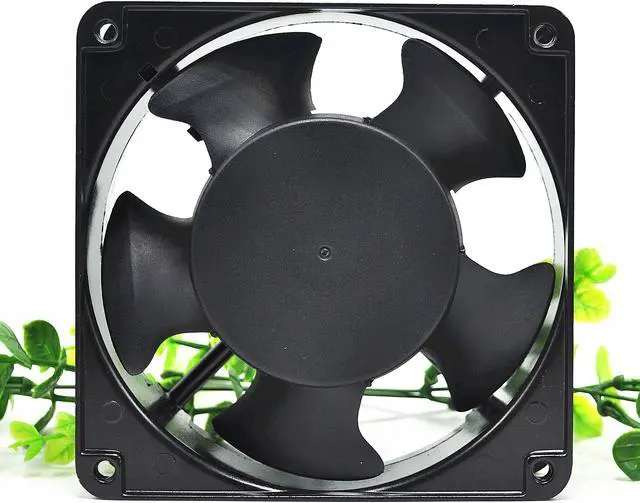

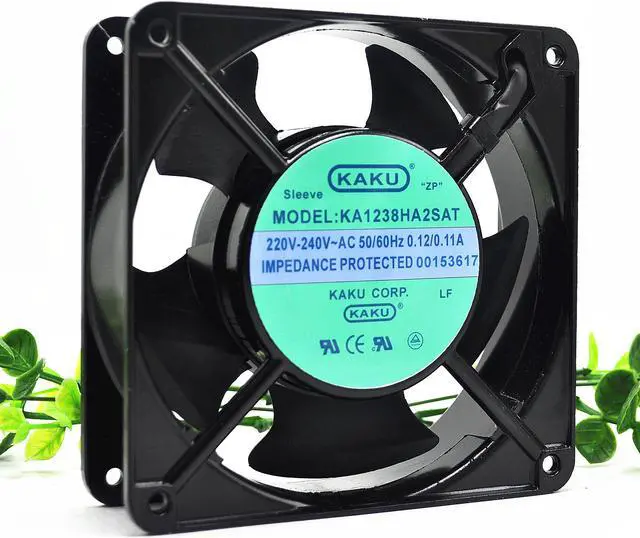

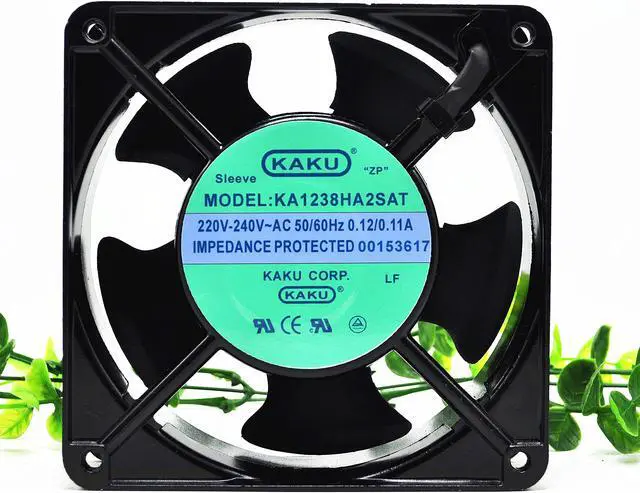

New original KAKU aluminum frame axial flow cooling fan KA1238HA2SAT 220V 12cm 12038 High temperature resistance fan
- Item #: 9SIV0MWARA7525
- Mfr. Part #: KA1238HA2SAT
- UNSPSC: 40101604
- Model number: KA1238HA2SAT
- Voltage: AC 220V Current: 0.12-0.11A
- Size: 120 * 120 * 38mm
- Frequency: 50/60 (Hz) Power: 23/21 (W)
- Speed: 2600/2900 (R / min)
- Air volume: 1.8 / 2.2 (M3 / min)
- Noise: 44/48 (dB-A)
- With packaging weight: 450 (g)
+
+
Overview
Specs
Reviews
Model number: KA1238HA2SAT
Voltage: AC 220V
Current: 0.12 - 0.11A
Size: 120 * 120 * 38mm
Frequency: 50/60 (Hz)
Power: 23/21 (W)
Speed: 2600/2900 (R / min)
Air volume: 1.8 / 2.2 (M3 / min)
Noise: 44/48 (dB-A)
With packaging weight: 450 (g)
Frame: Black-painted aluminum alloy die-casting anti-corrosion and moisture-proof structure;
Wind blade: one-shot injection molding, PBT + 30% glass wire + VO flame retardant;
Bearing: low noise bearing;
Insulation: The enameled wire adopts Class B insulation and has a temperature resistance of 120 degrees Celsius;
Insulation resistance: above 500 megohms;
Withstand voltage: leakage current 0.5 mA. Withstand voltage 1500V / 1 minute;
Operating voltage: 220V
(voltage range: 220V) Working environment temperature (? ): -10? ~ 45?
Voltage: AC 220V
Current: 0.12 - 0.11A
Size: 120 * 120 * 38mm
Frequency: 50/60 (Hz)
Power: 23/21 (W)
Speed: 2600/2900 (R / min)
Air volume: 1.8 / 2.2 (M3 / min)
Noise: 44/48 (dB-A)
With packaging weight: 450 (g)
Frame: Black-painted aluminum alloy die-casting anti-corrosion and moisture-proof structure;
Wind blade: one-shot injection molding, PBT + 30% glass wire + VO flame retardant;
Bearing: low noise bearing;
Insulation: The enameled wire adopts Class B insulation and has a temperature resistance of 120 degrees Celsius;
Insulation resistance: above 500 megohms;
Withstand voltage: leakage current 0.5 mA. Withstand voltage 1500V / 1 minute;
Operating voltage: 220V
(voltage range: 220V) Working environment temperature (? ): -10? ~ 45?
