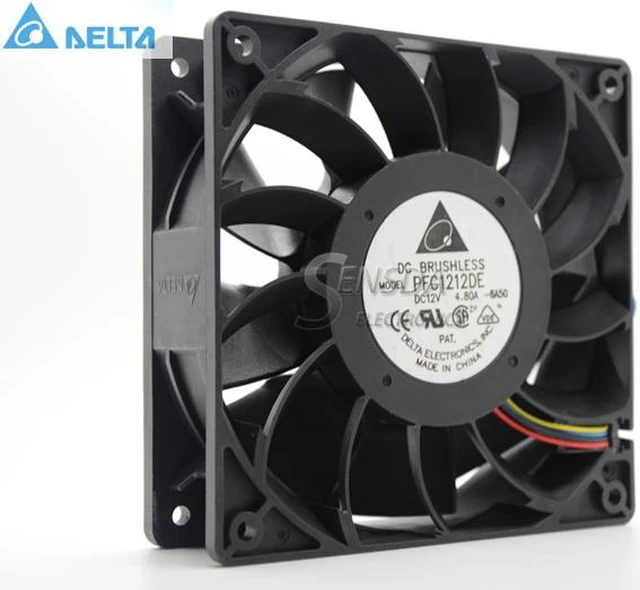

120x120x38mm 12v Ball Bearing Fan PFC1212DE 12038 1238 120mm 4.80A High RPM Speed Air FLow Miner Cooling Fans
- Item #: 9SIV0MWD484619
- Mfr. Part #: 392e2381-de89-d29f-5
- UNSPSC: 40101604
+
+
Overview
Specs
Reviews
:
MODEL:
PFC1212DEDimensions: 120 × 120 × 38MM;
Voltage: DC12V;
Current: 4.8A;
Air volume: 252.85CFM;
Power: 57.6W;
Number of revolutions: 7500RPM;
Fan frame: plastic injection molding, PBT +30% glass fiber + VO grade flame retardant;
Blade: plastic injection molding, PBT +30% glass fiber + VO grade flame retardant;
Fan rotation: from the fan direction is counter-clockwise;
Operating temperature: -10 degrees Celsius to +70 degrees Celsius;
Storage temperature: -40 degrees Celsius to +70 degrees Celsius;
Bearing: high precision ball bearings;
Power range: plus or minus 15% of the rated power;
Insulation resistance: > 500 megohms;
Withstanding voltage: Department of leakage current 0.5 mA 500V / 1 minute;
Working life: an ambient temperature of 25 degrees when 80, 000 hours.
MODEL:
PFC1212DEDimensions: 120 × 120 × 38MM;
Voltage: DC12V;
Current: 4.8A;
Air volume: 252.85CFM;
Power: 57.6W;
Number of revolutions: 7500RPM;
Fan frame: plastic injection molding, PBT +30% glass fiber + VO grade flame retardant;
Blade: plastic injection molding, PBT +30% glass fiber + VO grade flame retardant;
Fan rotation: from the fan direction is counter-clockwise;
Operating temperature: -10 degrees Celsius to +70 degrees Celsius;
Storage temperature: -40 degrees Celsius to +70 degrees Celsius;
Bearing: high precision ball bearings;
Power range: plus or minus 15% of the rated power;
Insulation resistance: > 500 megohms;
Withstanding voltage: Department of leakage current 0.5 mA 500V / 1 minute;
Working life: an ambient temperature of 25 degrees when 80, 000 hours.
