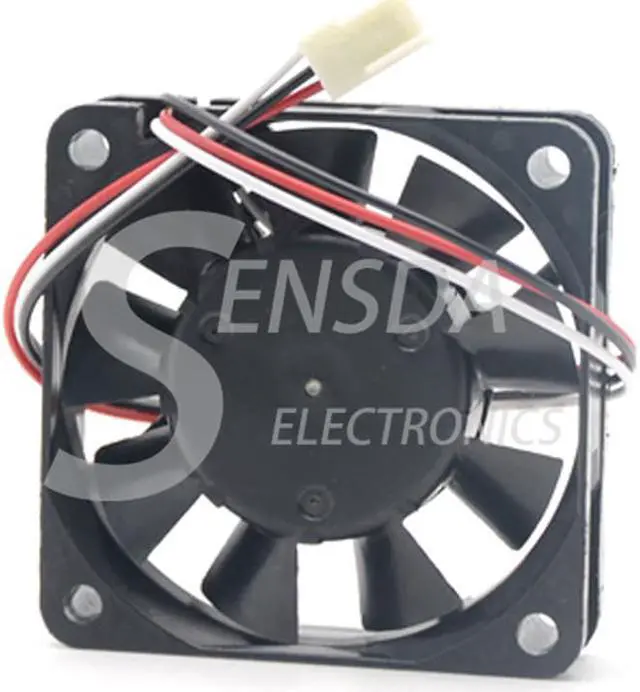

Main image of 2406KL-05W-B59 dc 24V 0.13A 6cm 6015 60*60*15 MM 3 wires converter cooling fan

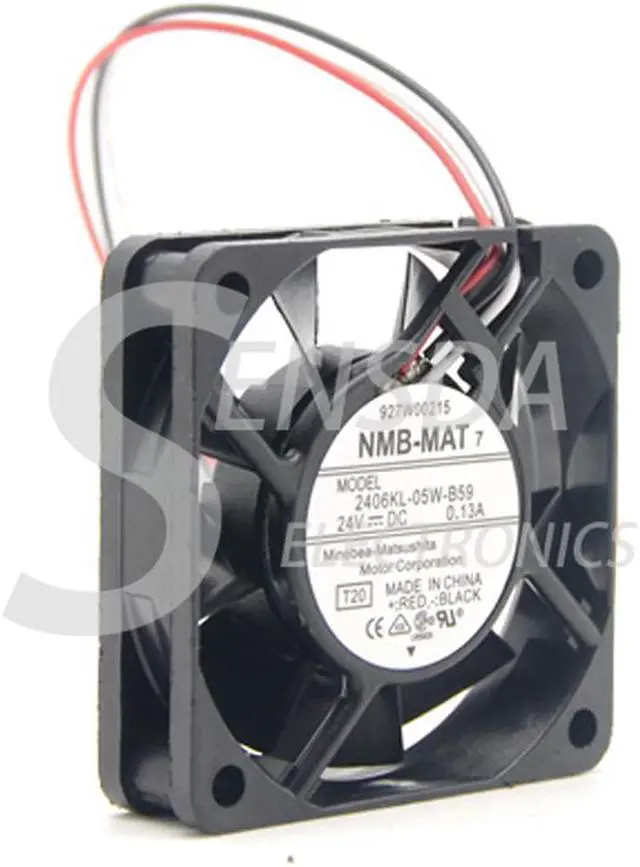

Alt view image 2 of 2 - 2406KL-05W-B59 dc 24V 0.13A 6cm 6015 60*60*15 MM 3 wires converter cooling fan

Visit SXDOOL Electronics Global Store

2406KL-05W-B59 dc 24V 0.13A 6cm 6015 606015 MM 3 wires converter cooling fan

Be the first to review this product...

Overview

Specs

Reviews

[Dimension]:
60x60x15mm[Rated]:
DC24V[Range]: DC
12.0 - 26.5V [Power]: 0.13A
(nominal current) [Speed]: 4600 r. p.
m[Temperature range]: -10...
70 °C[Life expectancy]: 25 ° c L10 life expectancy of 50, 000
hours[Bearing]: maintenance- double ball bearing[Direction of rotation]: air discharged from the bracket, facing
the rotor counterclockwise[Connection]: +
Red-Black: yellow
(white) 3-wire terminals[Protection]: overload protection, fault-protected and locked-rotor locks flow protection[Maximum air volume]: 18.3
CFM[Minimum air pressure]: 0.
51.2 Pa[Noise indicators]: 34.0
dB (a) [Material material]: glass-fibre reinced plastic, PBT housings, PA blade, environmental
certificationPower: 3.12WS
peed: 4600RPM
Airflow: 18.3CFM 0.52 cubic meters / minutePressure: 51.2
paNoise: 34DBA
Temperature: -20
~ 75Life: 50, 000
hoursNW: 45G

Model
Brand	XCLIO
