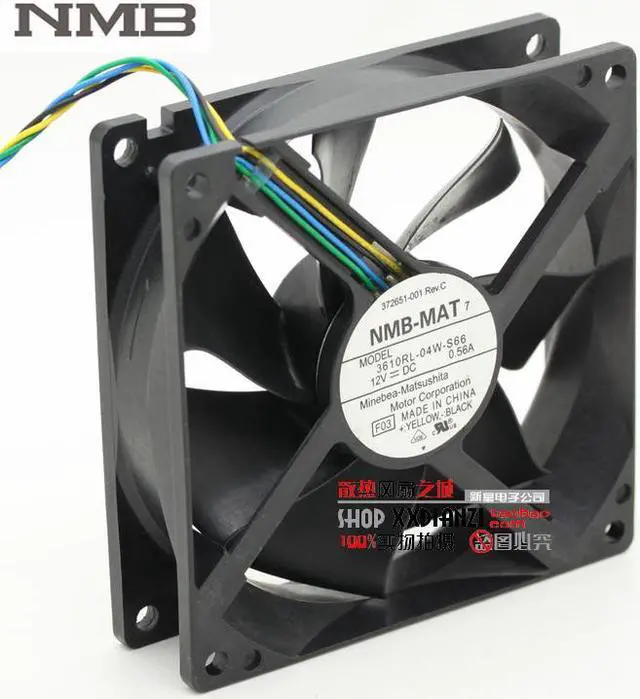

3610RL-04W-S66 9225 9cm DC 12V 0.56A PWM intelligent speed 92*92*25mm dc brushless fan
- Item #: 9SIV0MWD464159
- Mfr. Part #: 37e561d0-0d7a-faea-3
- UNSPSC: 40101604
- 25mm
+
+
Overview
Specs
Reviews
Operating voltage range: 4.5 ~ 13.2 (V)
DC DCRated voltage: 12.0 (V DC DC)
Current Rating: 0.56 ± 10% (AMP)
Input Power: 6.72 (W)
Bearing: Seal oily bearing ( patent reverse disassembly)
Noise level: 40% 16.6 ± 10% (dBA) 70% 29.0 ± 10% (dBA) 100% 41.5 ± 10% (dBA)
Lifetime value: 40000 (hours h / 25 degrees)Materials: PBT resin + 30% glass fiber + VO grade flame retardant polyester materialWeight: 105 g (g) Number seven bladesSize 92 (L) × 92 (width) × 25 (H) (mm mm)
Hole center distance: - Parallel pitch 82.5 mm / diagonal pitch 116.8 mmInterface: Motherboard common 4-pin / 3-pin compatible (supports motherboard supports speed PWM motherboard temperature) Speed supportPWM temperature control board support
DC DCRated voltage: 12.0 (V DC DC)
Current Rating: 0.56 ± 10% (AMP)
Input Power: 6.72 (W)
Bearing: Seal oily bearing ( patent reverse disassembly)
Noise level: 40% 16.6 ± 10% (dBA) 70% 29.0 ± 10% (dBA) 100% 41.5 ± 10% (dBA)
Lifetime value: 40000 (hours h / 25 degrees)Materials: PBT resin + 30% glass fiber + VO grade flame retardant polyester materialWeight: 105 g (g) Number seven bladesSize 92 (L) × 92 (width) × 25 (H) (mm mm)
Hole center distance: - Parallel pitch 82.5 mm / diagonal pitch 116.8 mmInterface: Motherboard common 4-pin / 3-pin compatible (supports motherboard supports speed PWM motherboard temperature) Speed supportPWM temperature control board support
