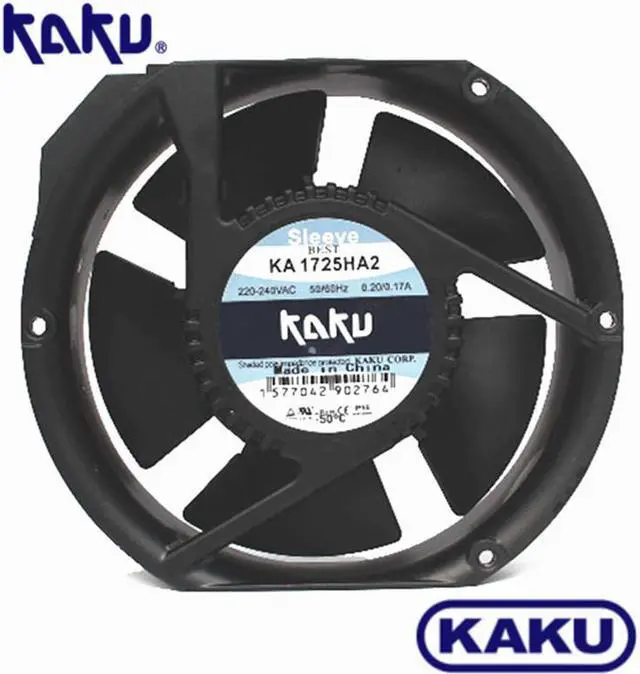

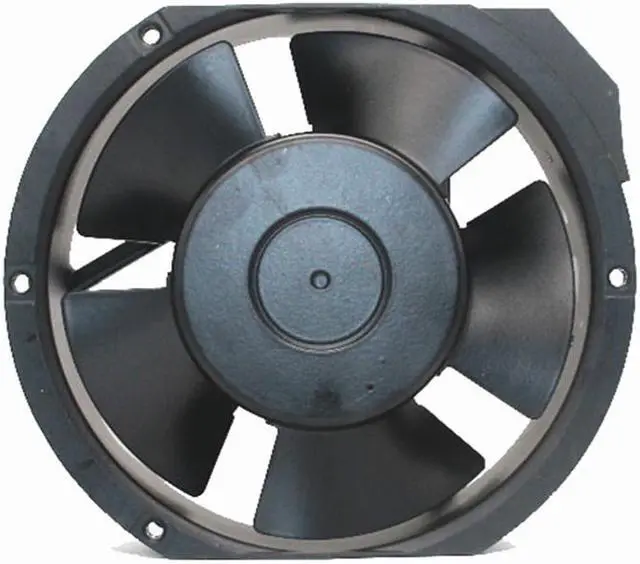

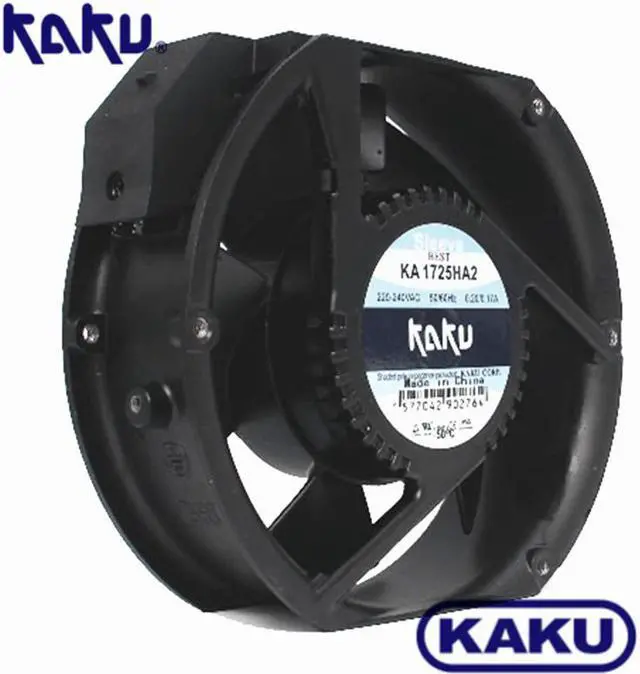

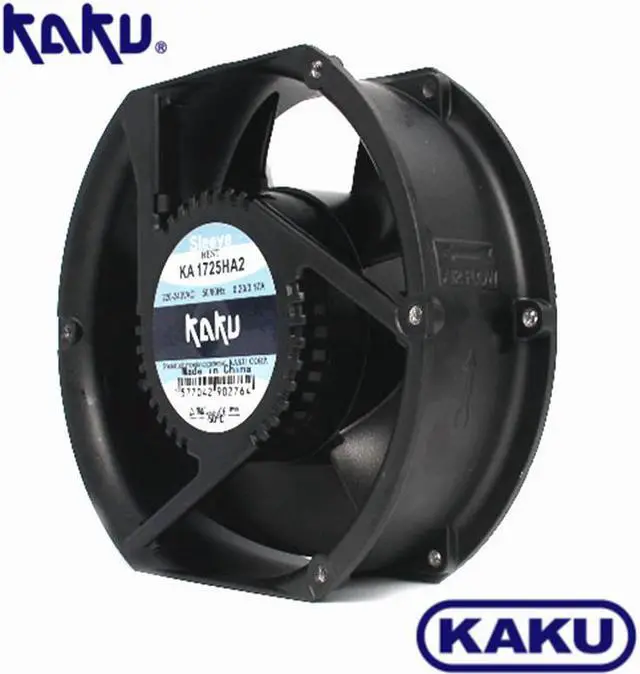

NEW original KA1725HA2 17251 220V KAKU fan card solid waterproof fan cooling fan
- Item #: 9SIV0MWDCM7618
- Mfr. Part #: KA1725HA2 CO
- UNSPSC: 40101604
- Frame: black painted aluminum alloy die-casting anti-corrosion and moisture-proof structure;
- Wind blade: one-time injection molding, PBT+30% glass wire+VO grade flame retardant;
- Bearing: low noise imported ball bearing;
- Insulation: The enameled wire adopts Class B insulation, with a temperature resistance of 120 degrees Celsius;
- Connection method: terminal type
- Insulation resistance: more than 500 megohms;
- Withstand voltage: leakage current 0.5mA. Withstand voltage 1500V/1 minute;
- Operating voltage: 220V (voltage range: 185V~245V) Fan rotation direction: clockwise from the direction of the fan blades; wind out from the direction with the brand.
- Operating environment temperature (?): -20?~75? B: (ball bearing)
- Life: working environment temperature 40? B: (ball bearing) 60000 (hours)
+
+
Overview
Specs
Reviews

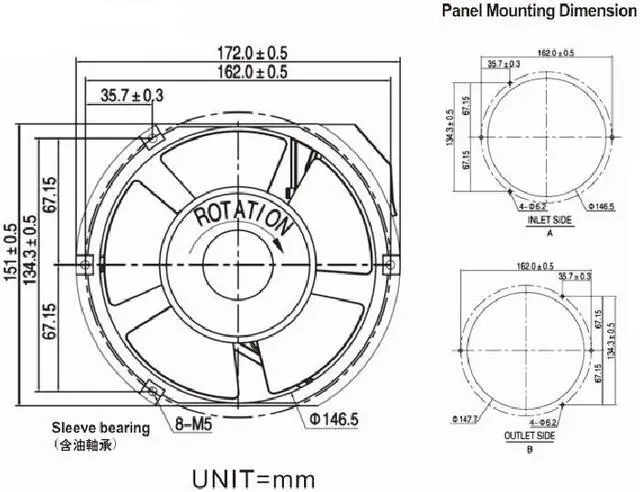

Specification size: 172x150x51mm
Brand: KAKU
Model number: 17251
Bearing structure:
B: BALL (ball bearing)
Voltage: AC 220~240V
Work rate: 38/35 (W)
Frequency: 50/60 (Hz)
Speed: 2700-3100 (R/min)
Air volume: 5.37 / 6.88 (M3/min)
Noise: 56/61 (dB-A)
Life: 30000H
Weight: 950 (g)

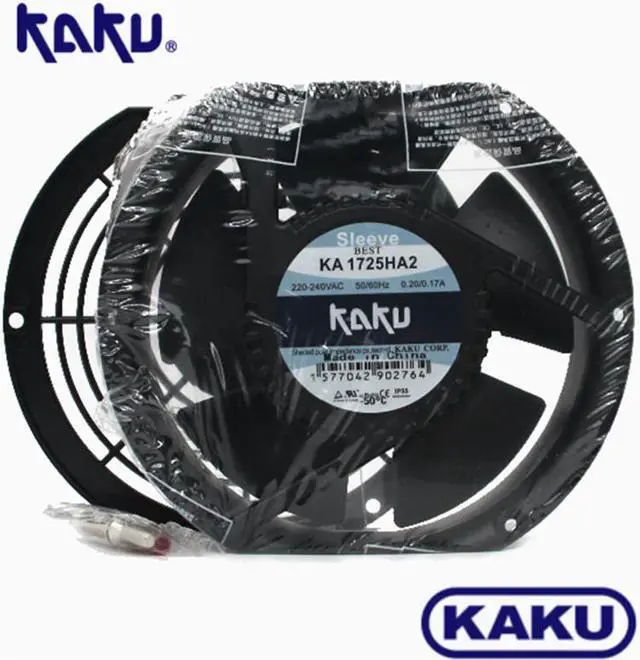

Packing: 1X fan, 1X protective net, screws;
Frame: black painted aluminum alloy die-casting anti-corrosion and moisture-proof structure;
Wind blade: one-time injection molding, PBT+30% glass wire+VO grade flame retardant;
Bearing: low noise imported ball bearing;
Insulation: The enameled wire adopts Class B insulation, with a temperature resistance of 120 degrees Celsius;
Connection method: terminal type
Insulation resistance: more than 500 megohms;
Withstand voltage: leakage current 0.5 mA. Withstand voltage 1500V/1 minute;
Operating voltage: 220V
(voltage range: 185V~245V)
Fan rotation direction: clockwise from the direction of the fan blades; wind out from the direction with the brand. Operating environment temperature (? ): -20? ~75?
B: (ball bearing)
Life: working environment temperature 40?
B: (ball bearing) 60000 (hours)
Brand: KAKU
Model number: 17251
Bearing structure:
B: BALL (ball bearing)
Voltage: AC 220~240V
Work rate: 38/35 (W)
Frequency: 50/60 (Hz)
Speed: 2700-3100 (R/min)
Air volume: 5.37 / 6.88 (M3/min)
Noise: 56/61 (dB-A)
Life: 30000H
Weight: 950 (g)
Packing: 1X fan, 1X protective net, screws;
Frame: black painted aluminum alloy die-casting anti-corrosion and moisture-proof structure;
Wind blade: one-time injection molding, PBT+30% glass wire+VO grade flame retardant;
Bearing: low noise imported ball bearing;
Insulation: The enameled wire adopts Class B insulation, with a temperature resistance of 120 degrees Celsius;
Connection method: terminal type
Insulation resistance: more than 500 megohms;
Withstand voltage: leakage current 0.5 mA. Withstand voltage 1500V/1 minute;
Operating voltage: 220V
(voltage range: 185V~245V)
Fan rotation direction: clockwise from the direction of the fan blades; wind out from the direction with the brand. Operating environment temperature (? ): -20? ~75?
B: (ball bearing)
Life: working environment temperature 40?
B: (ball bearing) 60000 (hours)
