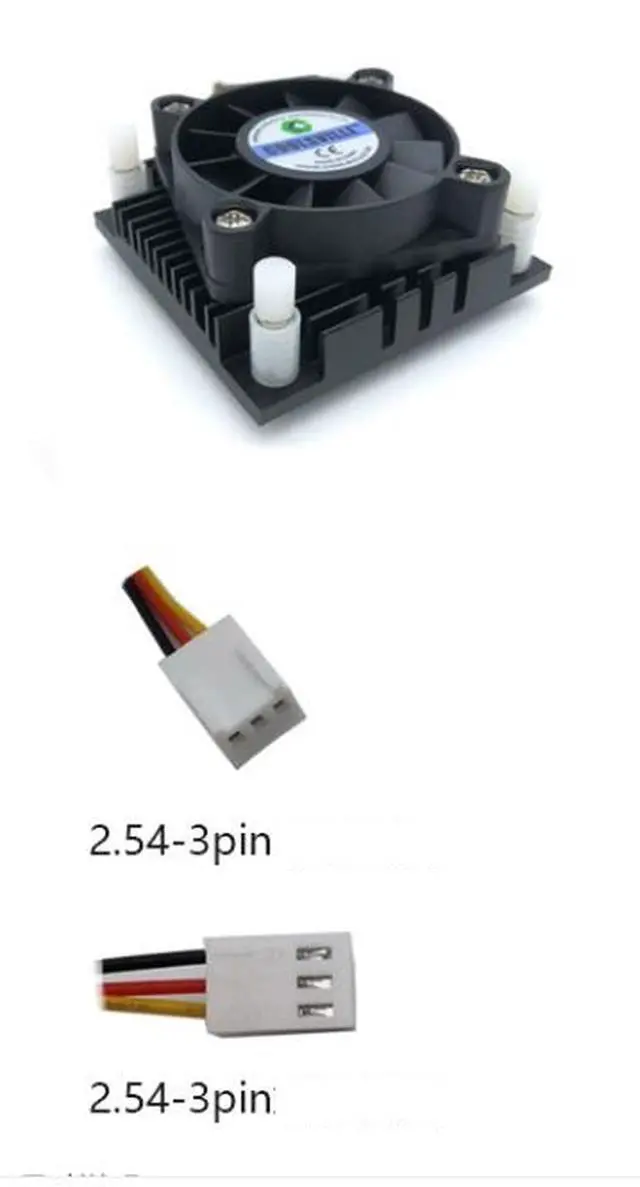

North and South Bridge cooling 50X50X20mm hole pitch 41*41mm with 12V double ball DC fan 40x40x10mm
- Item #: 9SIV0MWE0F6762
- Mfr. Part #: NS5020C
- UNSPSC: 40101604

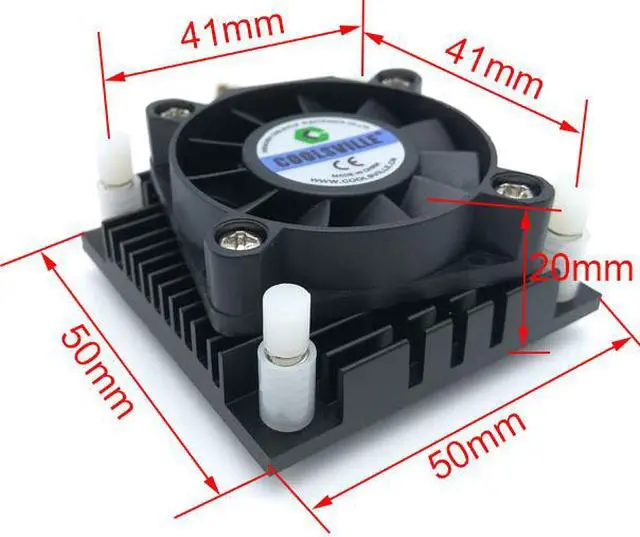

- North and South Bridge cooling 50X50X20mm
- hole pitch 41*41mm with 12V
- double ball DC fan 40x40x10mm
+
+
Overview
Specs
Reviews
name heat sink Material Al 6063-T5 Craft Aluminum extrusion profile processing size 50x50x20 mm Hole distance 41x41 mm Mounting hole diameter 3.1 mm Buckle length 22mm Surface treatment
Anodizing DC fan parameters: Rated voltage 12V Rated current 0.1A (Max) Power consumption 1.2W (Max) Rated speed 5300- 5900RPM noise 24.42 dB-A wire
Red: +;
Black: -;
Yellow: FG, the length of the outer frame is 150 mm Fan terminal 2.54 /3 pin
Anodizing DC fan parameters: Rated voltage 12V Rated current 0.1A (Max) Power consumption 1.2W (Max) Rated speed 5300- 5900RPM noise 24.42 dB-A wire
Red: +;
Black: -;
Yellow: FG, the length of the outer frame is 150 mm Fan terminal 2.54 /3 pin
