    Corning CCH-CS12-3C-P00RE Pigtailed Fiber Optic Splice Cassette, 12 Fiber, SC UPC Simplex Singlemode (OS2), Single-Fiber (250 um)

    • Item #: 9SIVG3PKFB2086
    • Mfr. Part #: CCH-CS12-3C-P00RE
    • UNSPSC: 26121604
    Be the first to review this product...
    • Part Number CCH-CS12-3C-P00RE
    • Product Description CCH Pigtailed Splice Cassette, 12 F, SC UPC simplex, Single-mode (OS2), single-fiber (250 µm)
    • Cable Type 250 µm
    • Access Type Front access
    • Technology Fusion Splice
    • Mounting Type CCH Housings, Wall-Mountable
    • Application Data Center, Enterprise Networks
    • Fiber Count 12
    • Number of pigtails 12
    • Pigtail Length 2 m (6.56 ft)
    • Adapter Color Front Blue
    • Connector Configuration SC
    • Polish UPC
    • Housing Type Cassettes
    • Panel or Module Type CCH
    • Splice Protectors Type Heat Shrink, Mass Fusion
    • Number of Adapters 12
    • Number of Splice Protectors 12
    • Number of Ports 12
    • Manage cable slack for a CCH panel in a modular footprint
    • Fast, easy and reliable initial routing, and quick, simple reaccess for moves, adds and changes (MACs)
    • Includes everything needed to convert a CCH housing for modular routing and/or splicing
    • Easy ordering and field installation
    • Modular splice capability
    • Manage all splices inside the housing
    Choking Hazard Small parts. Not for children under 3 years.
    +
    +
    Overview
    Specs
    Reviews

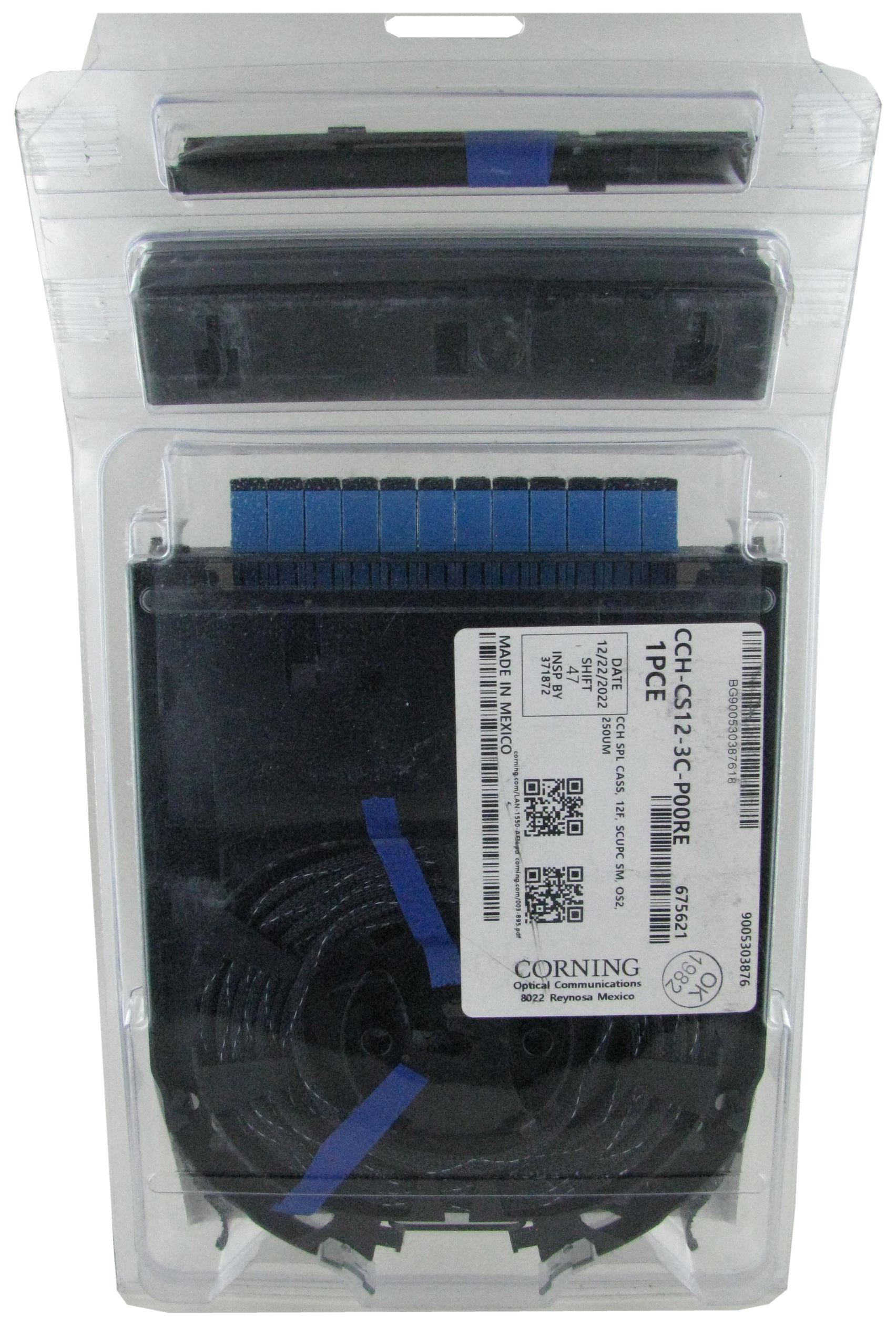

    Corning CCH-CS12-3C-P00RE 12-fiber SC UPC OS2 pigtailed splice cassette
    CCH-CS12-3C-P00RE
    SC UPC simplex - 12 fibers - OS2

    A modular pigtailed splice cassette with blue SC UPC simplex connections. Confirm the connector style and OS2 fiber type match your installation.

    Organized fiber splicing in a modular cassette

    CCH-CS12-3C-P00RE

    CCH-CS12-3C-P00RE combines pigtailed connectivity and splice management in a modular cassette. This configuration supports 12 fibers with SC UPC simplex connections for OS2 single-mode fiber.

    Technical details

    CCH-CS12-3C-P00RE specifications

    Manufacturer: Corning
    Model: CCH-CS12-3C-P00RE
    Fiber count: 12
    Connections: SC UPC simplex
    Fiber type: OS2 single-mode
    Configuration: 250 um single fiber

    Fit and package contents

    Check before ordering

    Includes one new pigtailed splice cassette assembly. Choose compatible Corning CCH hardware and matching fiber, connector and polish types. Fusion splicing requires suitable tools and installation procedures. The rack housing is sold separately.

    Corning CCH Pigtailed Splice Cassette, 12 F, SC UPC simplex, Single-mode (OS2), single-fiber (250 µm)
    Part Number: CCH-CS12-3C-P00RE

    CCH pigtailed splice cassettes enable faster field splicing and easy modular management of connectorization within the housing.

    The CCH pigtailed splice cassettes are preloaded and pre-routed for quick fusion splicing of either individual or ribbon fiber pigtails, using the same space-saving platform as the standard CCH splice cassette.

    The pre-routed pigtailed cassettes reduce field labor by streamlining the features and components of the pigtail cassette to allow for efficiencies in the field. They are prepped with a 2 meter pigtail assembly with all pre-existing CCH panel connector options. The pigtailed cassettes have 900 µm at the connector panel for added durability and colored 250 µm for ease of splicing as well as having strain relief pre-applied to the assemblies from the manufacturing facility.

    With the pigtailed cassette, the field will also enjoy the elimination of individual splice trays or separate splice housings, as well as allowing splicing to be done away from the rack housing in a suitable workspace as needed. The modular design makes it easy to access the fiber in an individual cassette without disturbing the other fibers in the housing.

    Each cassette is shipped with the pigtailed CCH adapter panel of choice, one rail for use with CCH-01U/2U/3U housings, and two rails used with CCH-04U housings. Grommets and cable ties for additional strain relief and protective braided tubing for incoming cable are also included. Splicing cassettes ship with the appropriate quantity and type of heat-shrink splice protectors.
