    Corning CCH-CP12-A9-P03RH Pigtailed Fiber Optic Panel with 6 LC Duplex OS2 SM Singlemode Adapters

    • Item #: 9SIVG3PKFX9554
    • Mfr. Part #: CCH-CP12-A9-P03RH
    • UNSPSC: 26121604
    Be the first to review this product...
    • Product Number CCH-CP12-A9-P03RH
    • Product Type Panels and Modules
    • Fiber Category Single-mode (OS2)
    • Cable type stubbed MIC® Cable subunit
    • Application Data Center, Enterprise Networks
    • RoHS Free of hazardous substances according to RoHS 2011/65/EU
    • Number of Adapters per Panel 6
    • Fiber Count 12
    • Pigtail Length 3 m (9.84 ft)
    • Design - Adapter
    • Housing Color Blue
    • Housing Material Composite
    • Adapter Style Standard
    • Adapter Type LC duplex
    • Insert Ceramic
    • Housing Color Blue
    • Specifications - Connector A
    • Polish UPC
    • Ordering Information
    • Package Contents CCH Adapter Panel with 3 m pigtail; installation guide
    +
    +
    Overview
    Specs
    Reviews

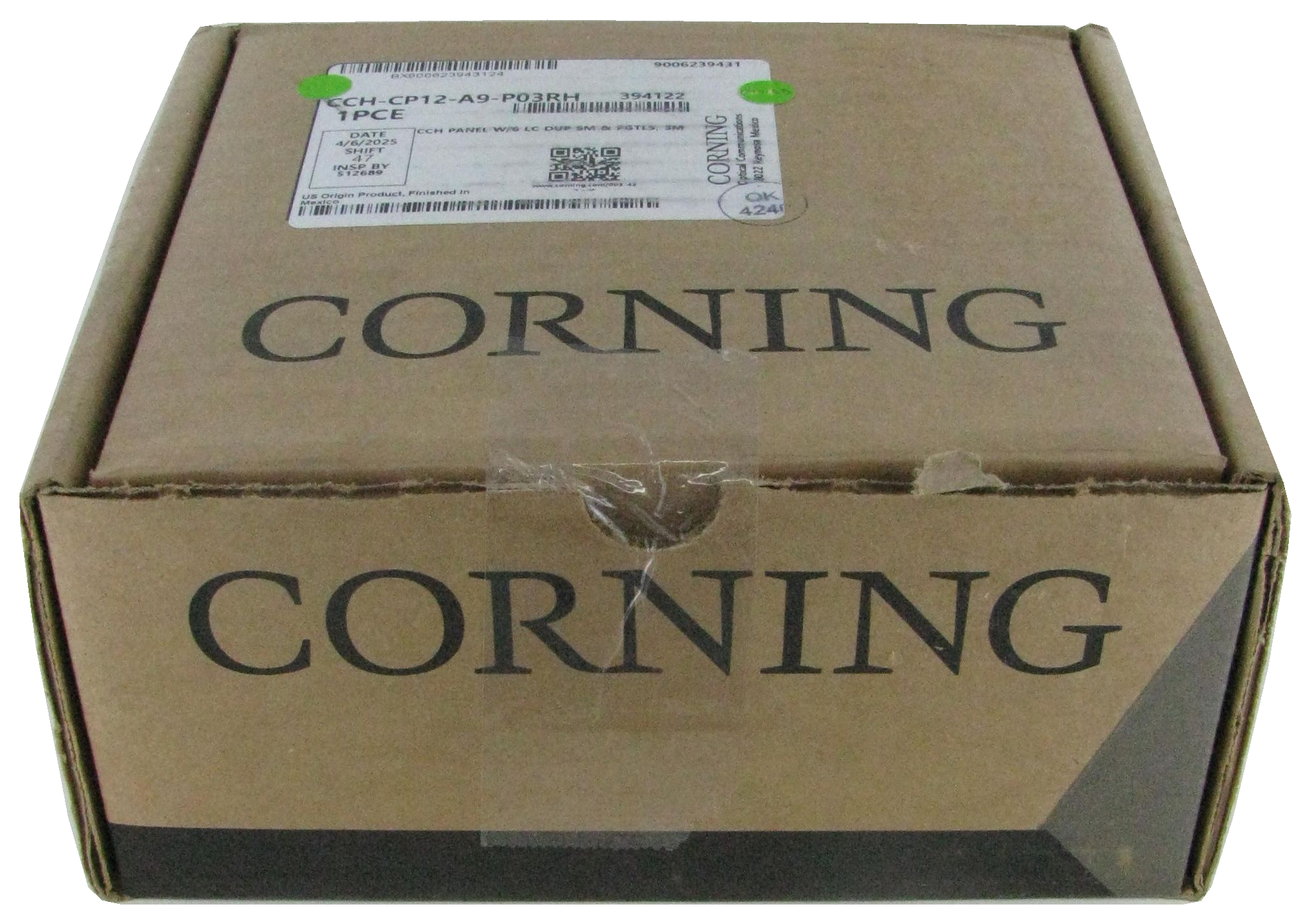

    CCH-CP12-A9-P03RH product and packaging
    Pigtailed connectivity for CCH installations
    CCH-CP12-A9-P03RH

    CCH-CP12-A9-P03RH combines a CCH adapter panel with pigtails for fiber termination. This configuration supports 12 fibers with Six LC UPC duplex adapters connections for OS2 single-mode fiber.

    Technical details

    CCH-CP12-A9-P03RH specifications

    Manufacturer: Corning
    Model: CCH-CP12-A9-P03RH
    Fiber count: 12
    Connections: Six LC UPC duplex adapters
    Fiber type: OS2 single-mode
    Configuration: 3 m pigtail

    Fit and package contents

    Check before ordering

    Includes one new pigtailed adapter panel assembly. Choose compatible Corning CCH hardware and matching fiber, connector and polish types. Fusion splicing requires suitable tools and installation procedures. The rack housing is sold separately.

    Corning Closet Connector Housing (CCH) Panel, pigtailed, LC Connectors, Duplex, UPC, 12 F, Single-mode (OS2)
    Part Number: CCH-CP12-A9-P03RH

    Corning closet connector housing (CCH) pigtail panels are CCH panels (CCH-CP) with factory-terminated and -tested pigtails installed. They accommodate all industry-standard connector adapter types including the LC, ST® compatible, SC, SC duplex, FC and MT-RJ, as well as the keyed LC. Depending on connector type, they are available in 6-, 8-, 12-, 16- and 24-fiber capacities. Pigtail panels provide easier routing than pigtail modules when the pigtails will be routed and spliced within the same housing. Available with both ribbon and 900 µm tight-buffered MIC® cable types, each CCH pigtail panel is factory terminated and tested. Each module is shipped assembled with adapters and connectorized pigtails installed to the customers specifications.
