    Corning CCH-CS12-AE-P00RE Pigtailed Fiber Optic Splice Cassette, 12 Fiber, LC UPC Duplex Shuttered Singlemode OS2

    • Item #: 9SIVG3PKGD4547
    • Mfr. Part #: CCH-CS12-AE-P00RE
    • UNSPSC: 26121604
    Be the first to review this product...
    • Product Number CCH-CS12-AE-P00RE
    • Product Type Rack-Mountable Hardware
    • Fiber Category Single-mode (OS2)
    • Cable Type 250 µm
    • Technology Fusion Splice
    • Mounting Type CCH Housings, Wall-Mountable
    • Standards
    • RoHS Free of hazardous substances according to RoHS 2011/65/EU
    • Fiber Count 12
    • Connector Configuration LC duplex
    • Polish UPC
    • Panel or Module Type CCH
    • Splice Protectors Type Heat Shrink Splice Protection
    • Number of Splice Protectors 12
    • Adapter Type LC duplex
    • Specifications - Connector A
    • Polish UPC
    • Height 35 mm (1.38 in)
    • Width 162 mm (6.38 in)
    • Depth 200 mm (7.87 in)
    Choking Hazard Small parts. Not for children under 3 years.
    +
    +
    Overview
    Specs
    Reviews

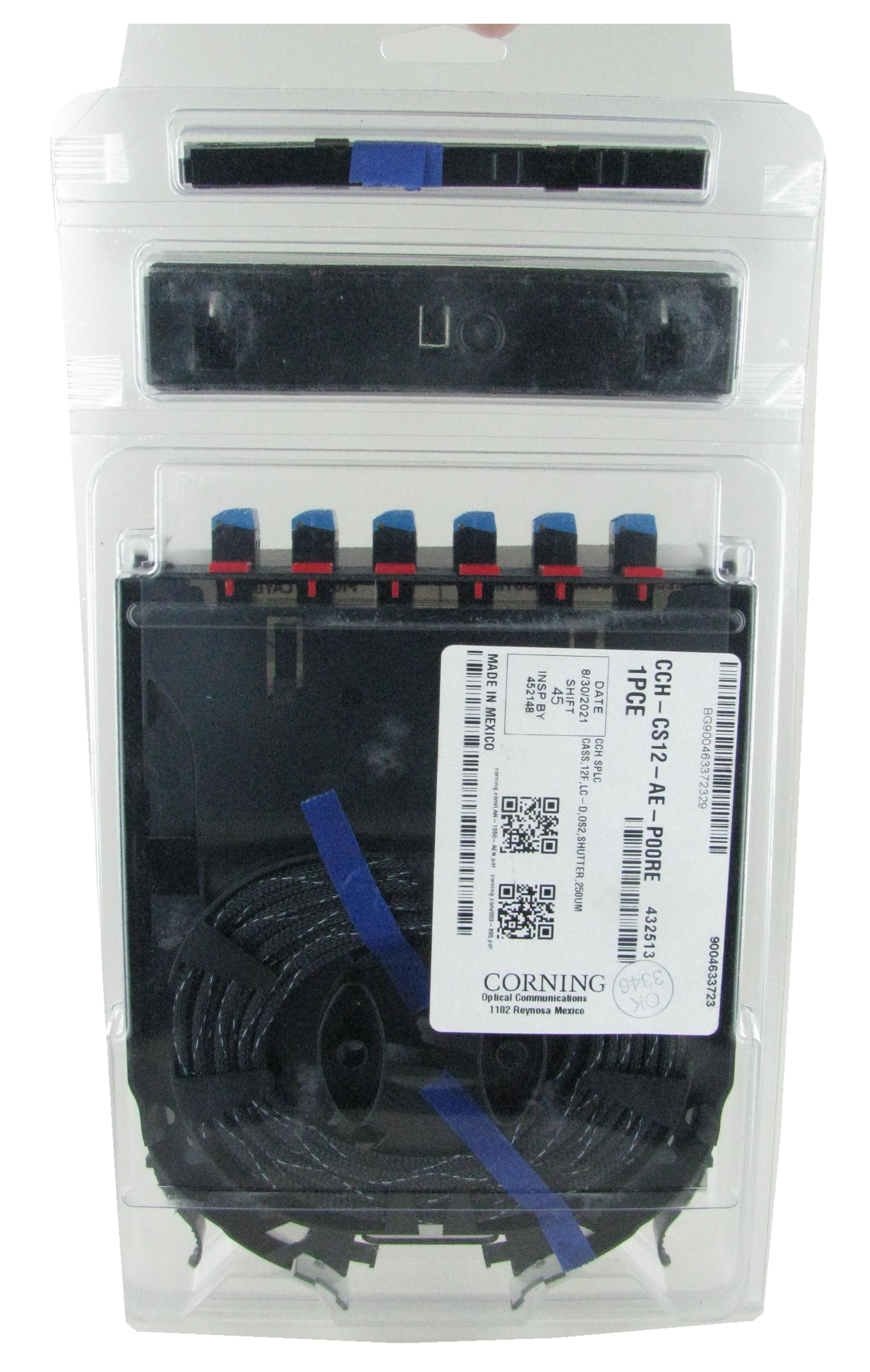

    CCH-CS12-AE-P00RE product and packaging
    Organized fiber splicing in a modular cassette
    CCH-CS12-AE-P00RE

    CCH-CS12-AE-P00RE combines pigtailed connectivity and splice management in a modular cassette. This configuration supports 12 fibers with Shuttered LC UPC duplex connections for OS2 single-mode fiber.

    Technical details

    CCH-CS12-AE-P00RE specifications

    Manufacturer: Corning
    Model: CCH-CS12-AE-P00RE
    Fiber count: 12
    Connections: Shuttered LC UPC duplex
    Fiber type: OS2 single-mode
    Configuration: 250 um single fiber

    Fit and package contents

    Check before ordering

    Includes one new pigtailed splice cassette assembly. Choose compatible Corning CCH hardware and matching fiber, connector and polish types. Fusion splicing requires suitable tools and installation procedures. The rack housing is sold separately.

    Corning CCH Pigtailed Splice Cassette, 12 F, LC UPC duplex shuttered, Single-mode (OS2)
    Part Number: CCH-CS12-AE-P00RE

    CCH pigtailed splice cassettes enable faster field splicing and easy modular management of connectorization within the housing.

    The CCH pigtailed splice cassettes are preloaded and pre-routed for quick fusion splicing of either individual or ribbon fiber pigtails, using the same space-saving platform as the standard CCH splice cassette.

    The pre-routed pigtailed cassettes reduce field labor by streamlining the features and components of the pigtail cassette to allow for efficiencies in the field. They are prepped with a 3m pigtail assembly with all pre-existing CCH panel connector options. The pigtailed cassettes have 900 µm at the connector panel for added durability and colored 250 µm for ease of splicing as well as having strain relief pre-applied to the assemblies from the manufacturing facility.

    With the pigtailed cassette, the field will also enjoy the elimination of individual splice trays or separate splice housings, as well as allowing splicing to be done away from the rack housing in a suitable workspace as needed. The modular design makes it easy to access the fiber in an individual cassette without disturbing the other fibers in the housing.

    Each cassette is shipped with the pigtailed CCH adapter panel of choice, one rail for use with CCH-01U/2U/3U housings, and two rails used with CCH-04U housings. Grommets and cable ties for additional strain relief and protective braided tubing for incoming cable are also included. Splicing cassettes ship with the appropriate quantity and type of heat-shrink splice protectors.
