    Corning CCH-CS12-E7-P00TE Pigtailed Fiber Optic Splice Cassette, 12 Fiber, SC Duplex Multimode (OM3/OM4), 250 um

    • Item #: 9SIVG3PKVA8256
    • Mfr. Part #: CCH-CS12-E7-P00TE
    • UNSPSC: 26121604
    Be the first to review this product...
    • Product Number CCH-CS12-E7-P00TE
    • Product Type Cassettes
    • Fiber Category 50 µm MM (OM3/OM4)
    • Cable Type 250 µm
    • Technology Fusion Splice
    • Mounting Type Wall-Mountable
    • Application Data Center, Enterprise Networks
    • RoHS Free of hazardous substances according to RoHS 2011/65/EU
    • Approvals and Listings Meets ANSI/TIA/EIA-568A and 606, Tested in accordance with Telecordia GR-3125, UL1863 - Communication Circuit Accessories
    • Temperature Range, Operation -40 °C to 65 °C (-40 °F to 149 °F )
    • Fiber Count 12
    • Connector Configuration SC
    • Housing Type CCH
    • Splice Protectors Type Heat Shrink, single fiber
    • Number of Splice Protectors 12
    • Adapter Type SC
    Choking Hazard Small parts. Not for children under 3 years.
    +
    +
    Overview
    Specs
    Reviews

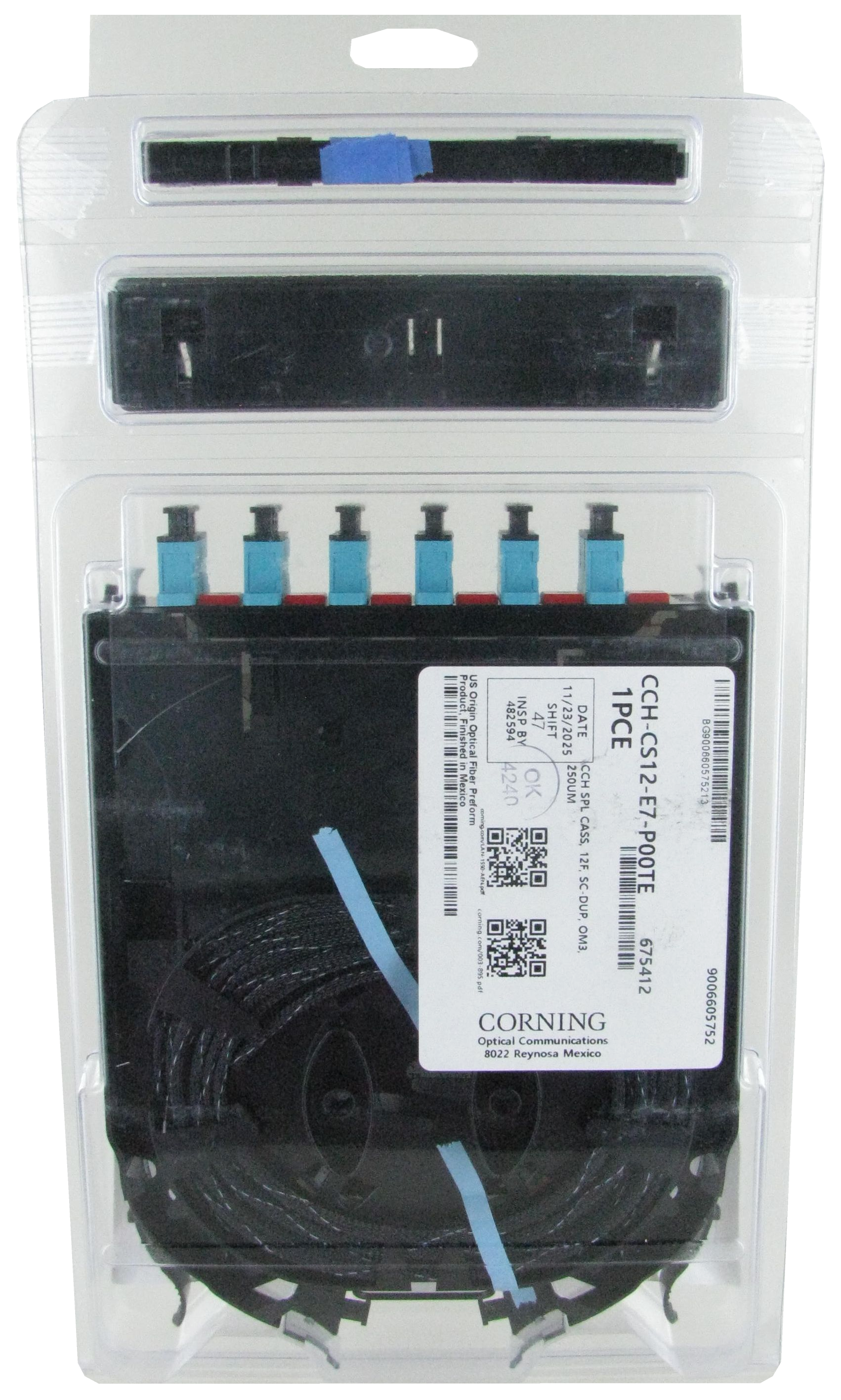

    Corning CCH-CS12-E7-P00TE 12-fiber SC duplex OM3 pigtailed splice cassette
    CCH-CS12-E7-P00TE
    SC duplex - 12 fibers - OM3

    A pigtailed splice cassette with 12 fibers and aqua SC duplex connections. The package identifies this model as OM3; confirm the fiber specification and SC interface match your installation.

    Organized fiber splicing in a modular cassette

    CCH-CS12-E7-P00TE

    CCH-CS12-E7-P00TE combines pigtailed connectivity and splice management in a modular cassette. This configuration supports 12 fibers with SC duplex connections for 50 um OM3 multimode fiber.

    Technical details

    CCH-CS12-E7-P00TE specifications

    Manufacturer: Corning

    Model: CCH-CS12-E7-P00TE

    Fiber count: 12

    Connections: SC duplex

    Fiber type: 50 um OM3 multimode

    Configuration: 250 um single fiber

    Fit and package contents

    Check before ordering

    Includes one new pigtailed splice cassette assembly. Choose compatible Corning CCH hardware and matching fiber, connector and polish types. Fusion splicing requires suitable tools and installation procedures. The rack housing is sold separately.

    Corning CCH Pigtailed Splice Cassette, 12 F, SC duplex, aqua, 50 µm multimode (OM3/4)


    Part Number: CCH-CS12-E7-P00TE


    CCH pigtailed splice cassettes enable faster field splicing and easy modular management of connectorization within the housing. The CCH pigtailed splice cassettes are preloaded and pre-routed for quick fusion splicing of either individual or ribbon fiber pigtails, using the same space -saving platform as the standard CCH splice cassette. The pre -routed pigtailed cassettes reduce field labor by streamlining the features and components of the pigtail cassette to allow for efficiencies in the field. They are prepped with a 2 meter pigtail assembly with all pre-existing CCH panel connector options. The pigtailed cassettes have 900 m at the connector panel for added durability and colored 250 m for ease of splicing as well as having strain relief pre -applied to the assemblies from the manufacturing facility. With the pigtailed cassette, the field will also enjoy the elimination of individual splice trays or separate splice housings, as well as allowing splicing to be done away from the rack housing in a suitable workspace as needed. The modular design makes it easy to access the fiber in an individual cassette without disturbing the other fibers in the housing. Each cassette is shipped with the pigtailed CCH adapter panel of choice, one rail for use with CCH -01U/2U/3U housings, and two rails used with CCH -04U housings. Grommets and cable ties for additional strain relief and protective braided tubing for incoming cable are also included. Splicing cassettes ship with the appropriate quantity and type of heat -shrink splice protectors.
