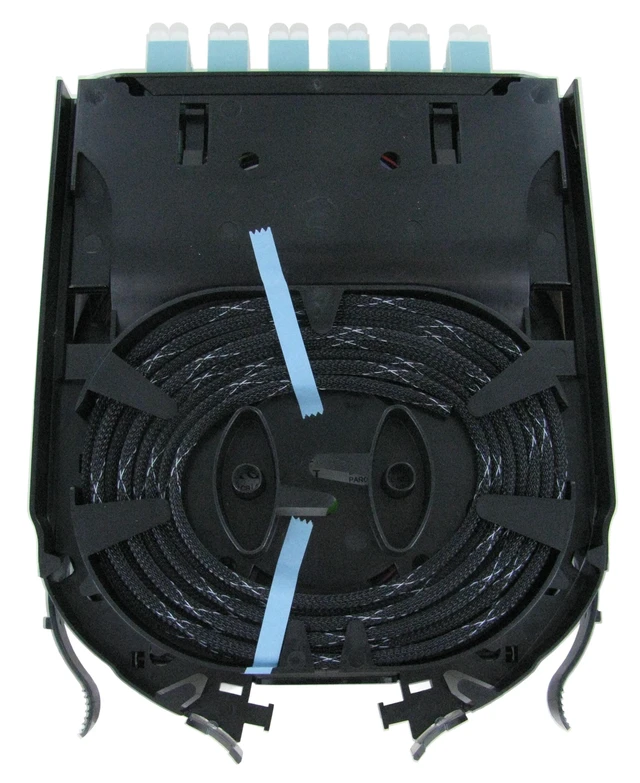

    Corning CCH-CS24-E4-P00TE Pigtailed Fiber Optic Splice Cassette, 24 Fiber, LC PC Duplex 50um Multimode (OM3), Single-Fiber (250 um)

    • Item #: 9SIVG3PKYF9598
    • Mfr. Part #: CCH-CS24-E4-P00TE
    • UNSPSC: 26121604
    Be the first to review this product...
    • Part Number CCH-CS24-E4-P00TE
    • Product Description CCH Pigtailed Splice Cassette, 24 F, LC PC duplex, 50 µm multimode (OM3), single-fiber (250 µm)
    • EAN Code 4056418151953
    • Manage cable slack for a CCH panel in a modular footprint
    • Fast, easy and reliable initial routing, and quick, simple reaccess for moves, adds and changes (MACs)
    • Includes everything needed to convert a CCH housing for modular routing and/or splicing
    • Easy ordering and field installation
    • Modular splice capability
    • Manage all splices inside the housing
    • 900 µm jacket at the connector panel
    • Added fiber protection at the connector
    • Colored 250 µm at splice point
    • Easy to identify and prep colored 250 µm for fast and easy splicing
    • Pre-prepped splice cassette
    • Saves time in the field with a ready to splice product
    Choking Hazard Small parts. Not for children under 3 years.
    +
    +
    Overview
    Specs
    Reviews

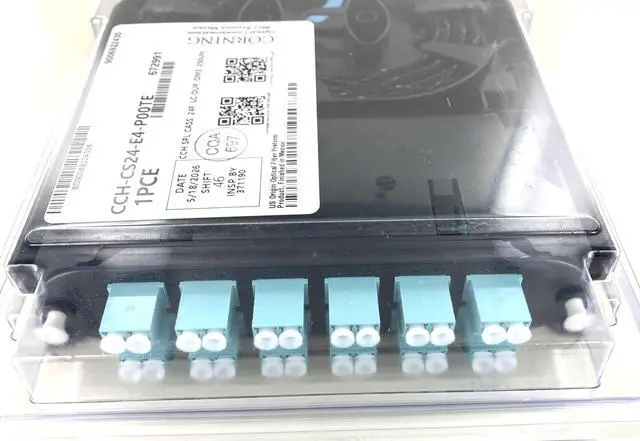

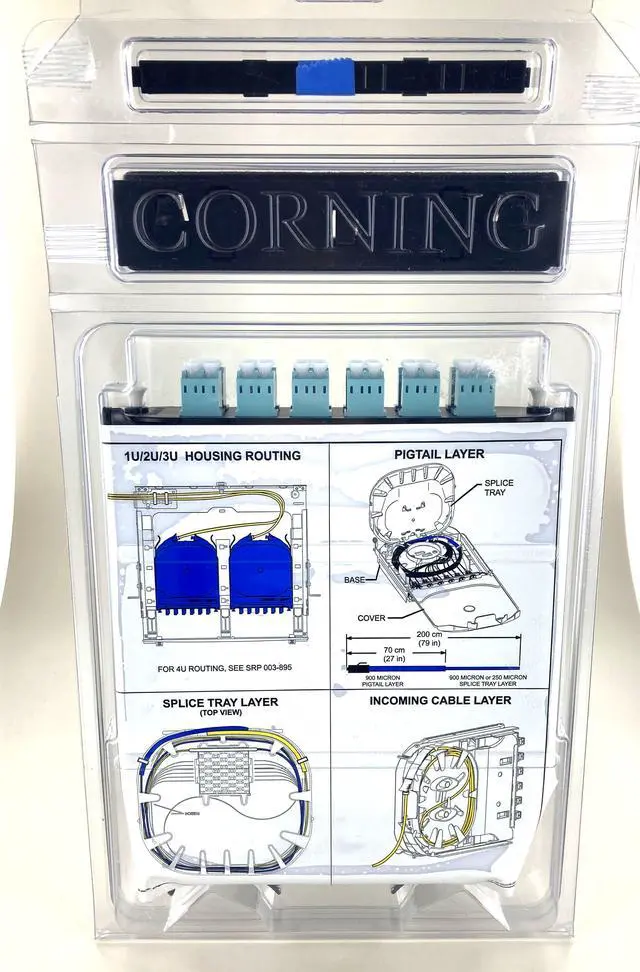

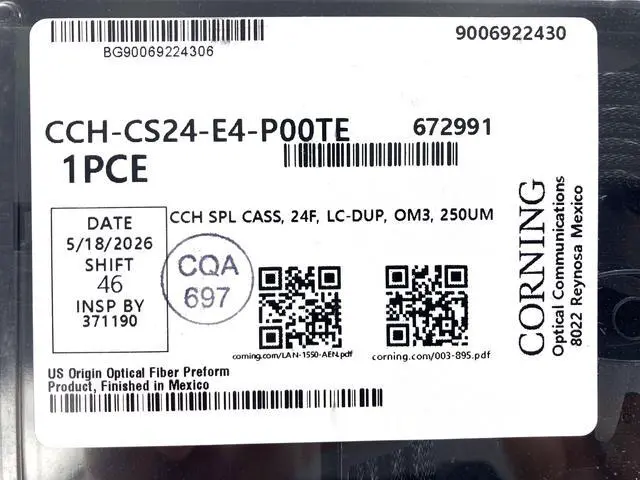

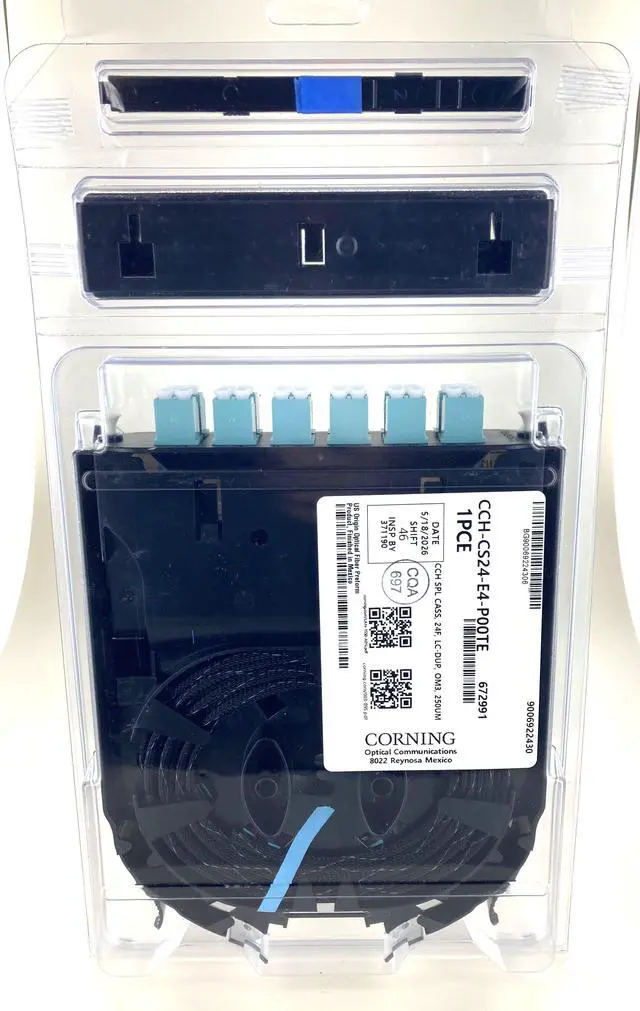

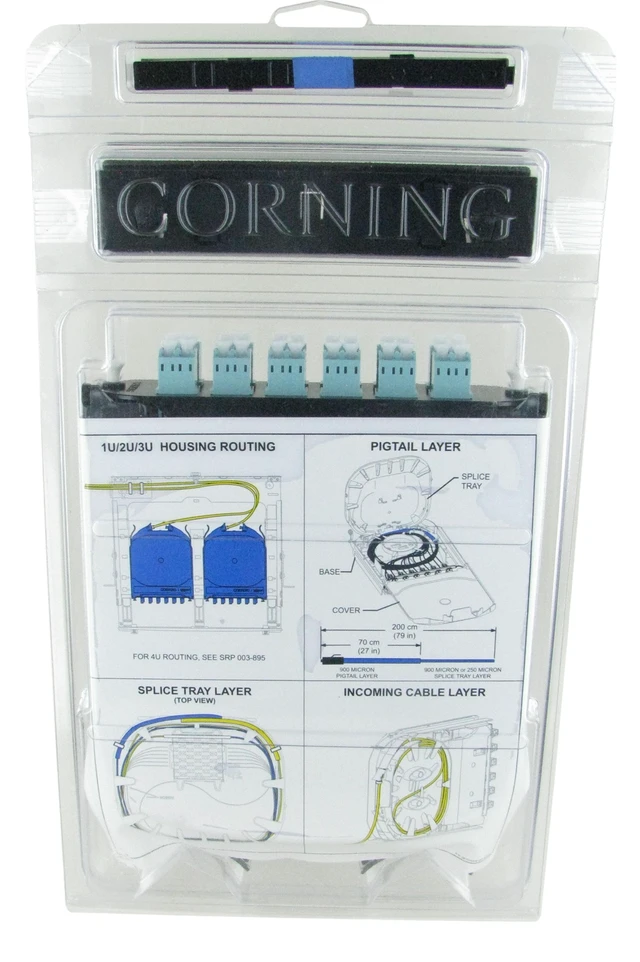

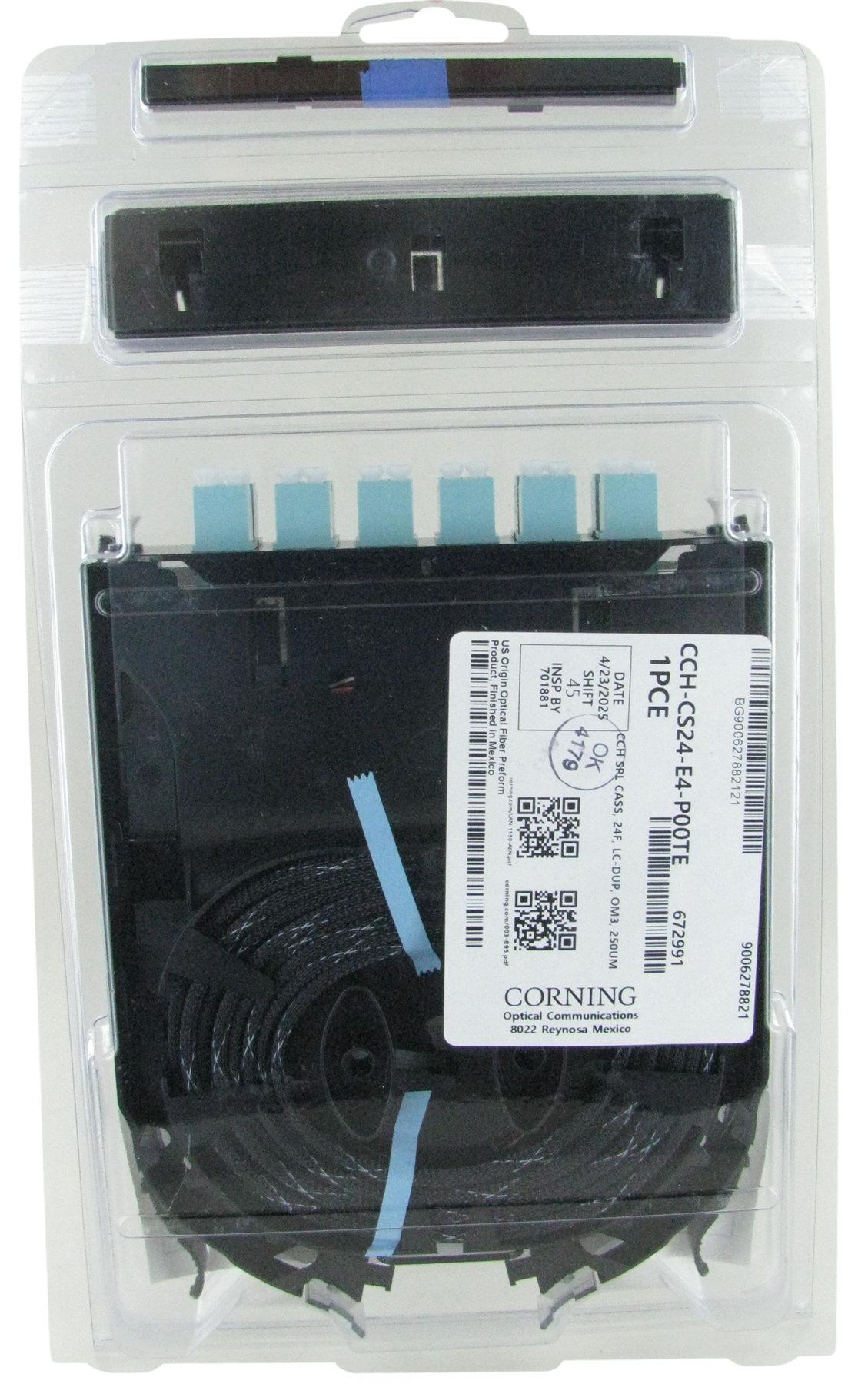

    CCH-CS24-E4-P00TE product and packaging
    Organized fiber splicing in a modular cassette
    CCH-CS24-E4-P00TE

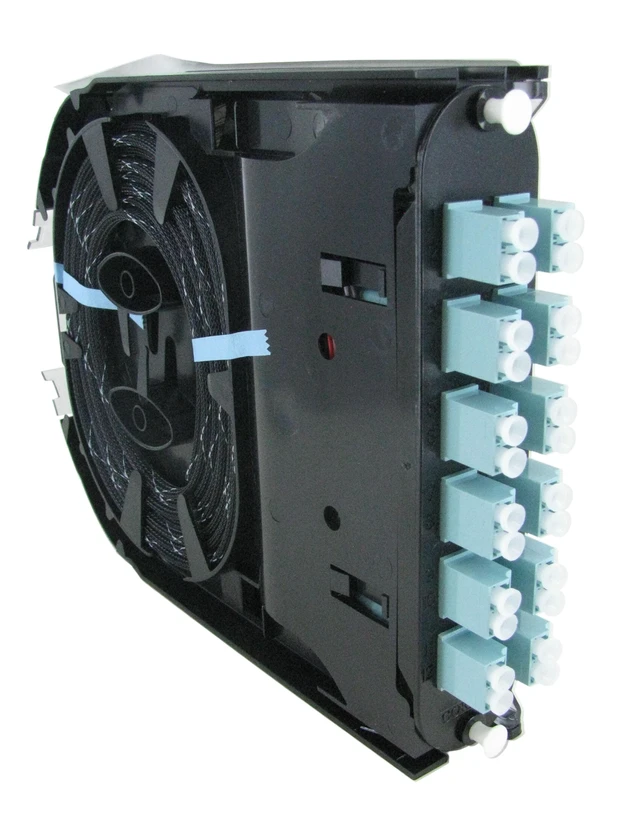

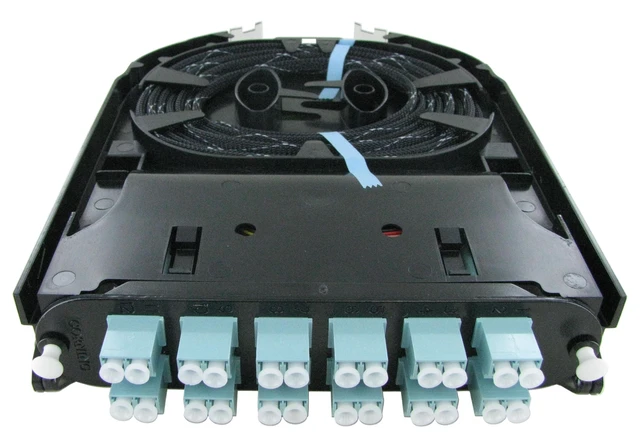

    CCH-CS24-E4-P00TE combines pigtailed connectivity and splice management in a modular cassette. This configuration supports 24 fibers with LC PC duplex connections for 50 um OM3 multimode fiber.

    Technical details

    CCH-CS24-E4-P00TE specifications

    Manufacturer: Corning
    Model: CCH-CS24-E4-P00TE
    Fiber count: 24
    Connections: LC PC duplex
    Fiber type: 50 um OM3 multimode
    Configuration: 250 um single fiber

    Fit and package contents

    Check before ordering

    Includes one new pigtailed splice cassette assembly. Choose compatible Corning CCH hardware and matching fiber, connector and polish types. Fusion splicing requires suitable tools and installation procedures. The rack housing is sold separately.

    Corning CCH Pigtailed Splice Cassette, 24 F, LC PC duplex, 50 µm multimode (OM3), single-fiber (250 µm)

    Part Number: CCH-CS24-E4-P00TE


    CCH pigtailed splice cassettes enable faster field splicing and easy modular management of connectorization within the housing.

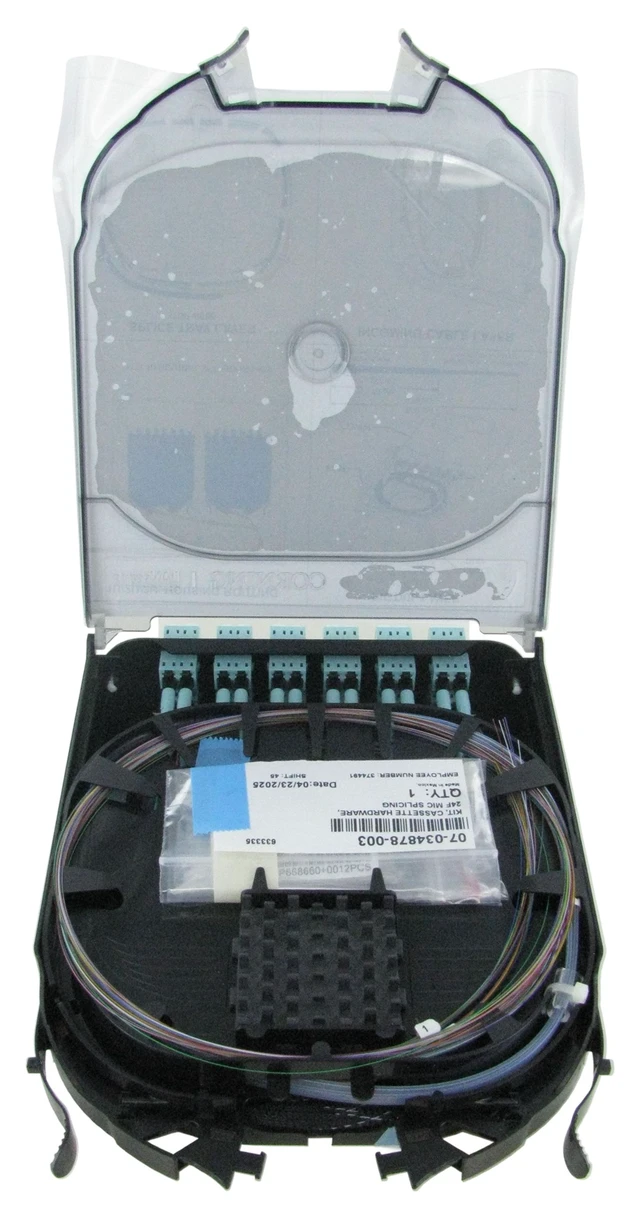

    The CCH pigtailed splice cassettes are preloaded and pre-routed for quick fusion splicing of either individual or ribbon fiber pigtails, using the same space-saving platform as the standard CCH splice cassette.

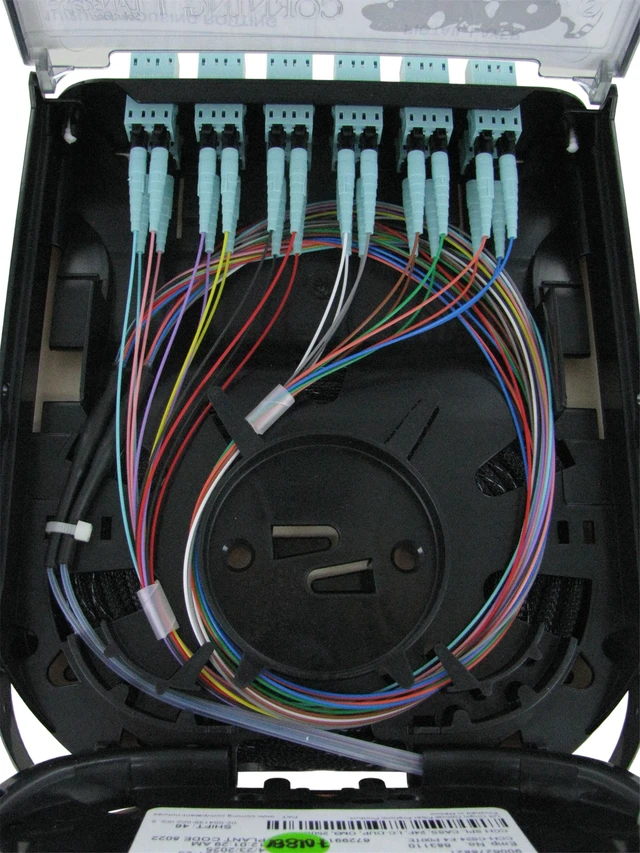

    The pre-routed pigtailed cassettes reduce field labor by streamlining the features and components of the pigtail cassette to allow for efficiencies in the field. They are prepped with a 2 meter pigtail assembly with all pre-existing CCH panel connector options. The pigtailed cassettes have 900 µm at the connector panel for added durability and colored 250 µm for ease of splicing as well as having strain relief pre-applied to the assemblies from the manufacturing facility.


    With the pigtailed cassette, the field will also enjoy the elimination of individual splice trays or separate splice housings, as well as allowing splicing to be done away from the rack housing in a suitable workspace as needed. The modular design makes it easy to access the fiber in an individual cassette without disturbing the other fibers in the housing.


    Each cassette is shipped with the pigtailed CCH adapter panel of choice, one rail for use with CCH-01U/2U/3U housings, and two rails used with CCH-04U housings. Grommets and cable ties for additional strain relief and protective braided tubing for incoming cable are also included. Splicing cassettes ship with the appropriate quantity and type of heat-shrink splice protectors.
