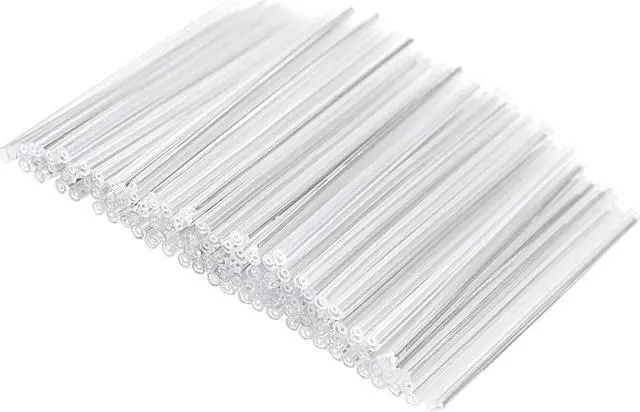

30mm 1.5mm OD Fiber Optic Sleeves, 2 Ends Pre-Shrunk Fiber Optic Fusion Splice Tube Protector Sleeves, Clear Heat Shrinkable Tubing 100pcs
- Item #: 9SIV0KKE634865
- Mfr. Part #: a20082800ux0106
- UNSPSC: 26121604
- [SIZE] Total Length: 30mm/1.18"; Heat Shrinkable Tube Initial Outer Diameter: 1.5±0.2mm; Heat Shrinkable Tube Outer Diameter after Shrinking: 1.35-1.45mm; Rod Number: 1
- [FEATURE] The clear sleeve design permits easy centering of splice before heating. And the preshrunk ends can prevent the rod from falling.

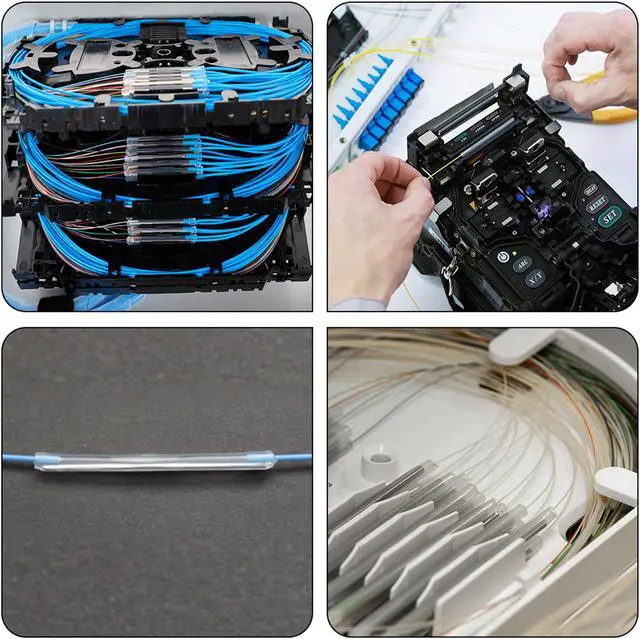

- [APPLICATION] Fiber optic fusion splice protector sleeves and shrinks evenly. Makes a great weather resistant seal.
- [MATERIAL] Consist of reinforcing stainless steel 304 rod, the outer layer heat shrinkable tube is made of EVA(Ethylene Vinyl Acetate) and the inner layer of heat fusion tubing is cross-linked by polyolefin.
- [FUNCTION]To rebuild the coating of fiber to provide mechanical strength at the fusion joint area and keep optical transmission properties.Resistant to heat shocks, no cracking dripping or flowing.
+
+
Overview
Specs
Reviews
Description:
1. High quality fiber optic fusion splice protector sleeves and shrinks evenly. Makes a great weather resistant seal.
2. The clear sleeve design permits easy centering of splice before heating.
3. Sealing structure makes the splice free from the effect of temperature and humidity of the environment.
4. Smooth, debarred stainless steel reinforcing member ends decrease the risk of fiber break during installation.
5.Single hole (2 ends preshrunk) ends eliminates improper fiber threading.
KEY_TAB
Specification:
Material: EVA, PE, 304 Stainless Steel
Main Color: Clear, Silver Tone
Rod Number: 1
Total Length: 30mm/1.18"
Length of Steel Rod: 29mm/1.14"
Diameter of Steel Rod: 0.5±0.02mm
Heat Shrinkable Tube Initial Outer Diameter: 1.5±0.2mm
Heat Shrinkable Tube Outer Diameter after Shrinking: 1.35-1.45mm
Thickness of Heat Shrinkable Tube: 0.2±0.05mm
Hot Melt Tube Inner Diameter: 0.5±0.1mm
Thickness of Hot Melt Tube: 0.2±0.05mm
Shrinking Temperature Range: 90-120 Celsius Degree
Working Temperature Range: -55 - 105 Celsius Degree
Max installation time: 60 seconds
Package Content: 100(+/-2%)pcs x Fiber Optic Splice Tube
