Fusion Splicer Automatic Focus JW4108S FTTH Fiber Optic Fusion Splicer 5 Inch Digital LCD Screen Fusion Splicer Machine Fiber Cleaver Kit
- Item #: 9SIVB0EJA51691
- Mfr. Part #: BEH08X6QE0
- UNSPSC: 26121604
- Faster Splicing & Heating: The fiber fusion splicer with a powerful high-speed motor allows quick 9 second splice time and 30 second heat time. It can continuously splice and heat about 200 times. Thus, it is time-saving in operation.
- 3-in-1 Fiber Holder: It is suitable for SM, MM, bare fiber, pigtail, rubber-insulated, and multi-fiber cables. Applicable Fibers: SM(G.652&G.657); MM(G.651); DS(G.657); NZDS(G.655). It features low splice loss, 0.025dB(SM), 0.01dB(MM), 0.04dB(DS/NZDS). It is fully qualified with FTTH projects, security monitoring, and other fiber cable splicing projects.
- Clear LCD & 5200 mAh Battery: With 5-inch high-resolution screen, the handheld fiber fusion splicer can get up to 300 times the focus magnifications when X/Y Axis is displayed separately. Due to the 5200 mah battery, the charging time is less than 3 hours.
+
+
Overview
Specs
Reviews
Humanization Tool Kit: The fiber fusion splicer offers excellent accessories, including fiber stripper, AC adapter, lithium battery, spare electrode, charger, cooling tray, operation manual CD, carrying case. The toolbox protects the fiber splicing tools and makes all accessories easy to store and easy to carry.

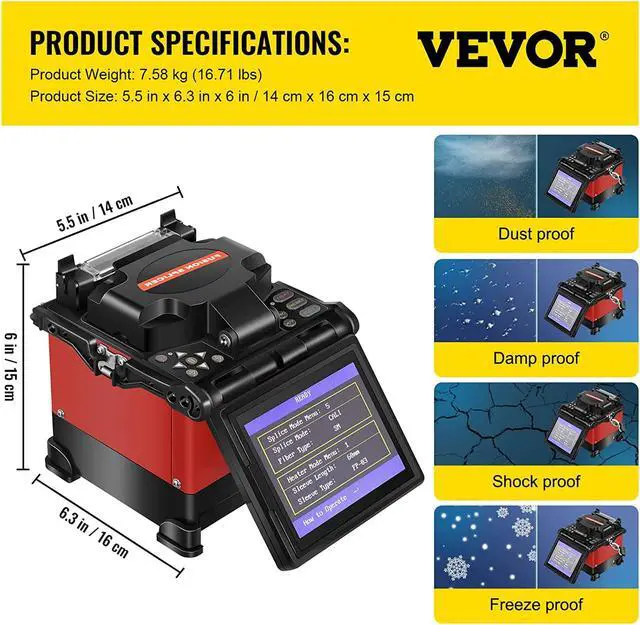

Various Application: Sturdy structures meet different working area requirements, dust-proof, shock-proof, and freeze-proof. The fusion machine is especially suitable for optical fiber and cable projects, maintenance scientific research, electric power, and other communications.

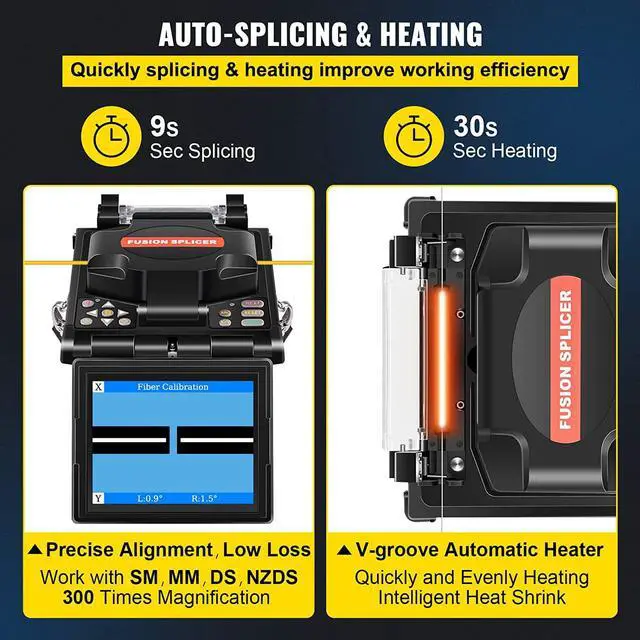

Excellent Splicing Performance
The fiber fusion splicer can complete the whole process of fiber fusion splicing automatically in just 9 seconds, heating in 30 seconds. The high-speed image processing technology unique precision positioning technology is applied while working.

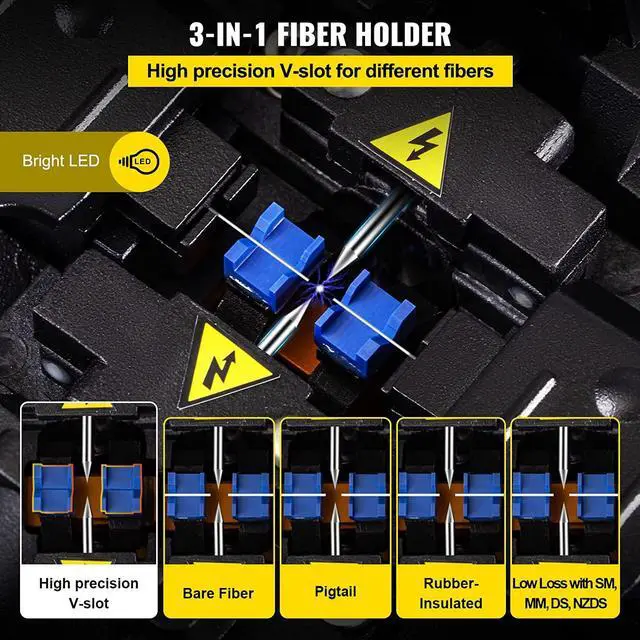

3 in 1 Fiber Holder
SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable.
Applicable splice machine fibers: SM( 0.02 db); MM( 0.01 db); DS( 0.04 db); NZDS( 0.04 db). It is fully qualified with FTTH project, security monitoring and other fiber cable splicing projects.

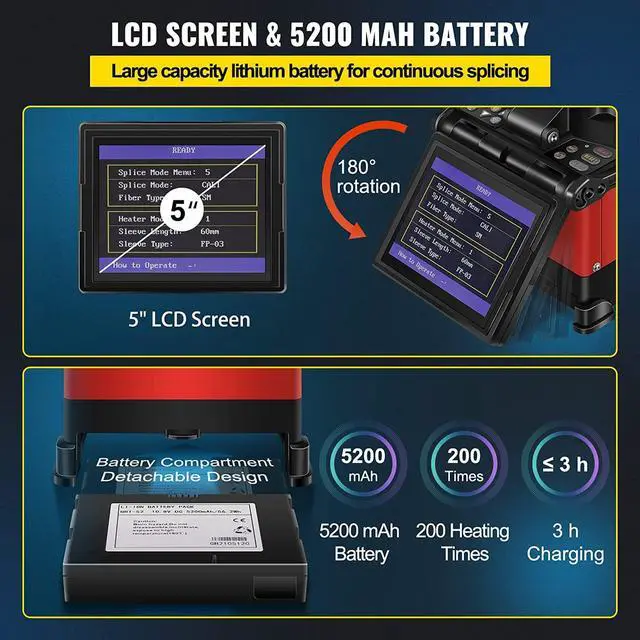

High-Resolution Screen
The fusion splicing machine adopts 5-inch high-resolution LCD screen. The X/Y axis X/Y axis or a separate display shows at the same time, 300/200 times magnification. You can easily and clearly observe the X axis and Y axis direction of the optical fiber.
fiber fusion splicer
Fiber Fusion Splicer Machine,
AI-7C fiber fusion splicer
Dependable Power Supply
5200 mah high-capacity lithium battery features charging time 3 hours, continuous splicing and heating about 200 times. Built-in power meter and VFL effectively measure connection loss, verify continuity and help assess fiber link transmission quality.

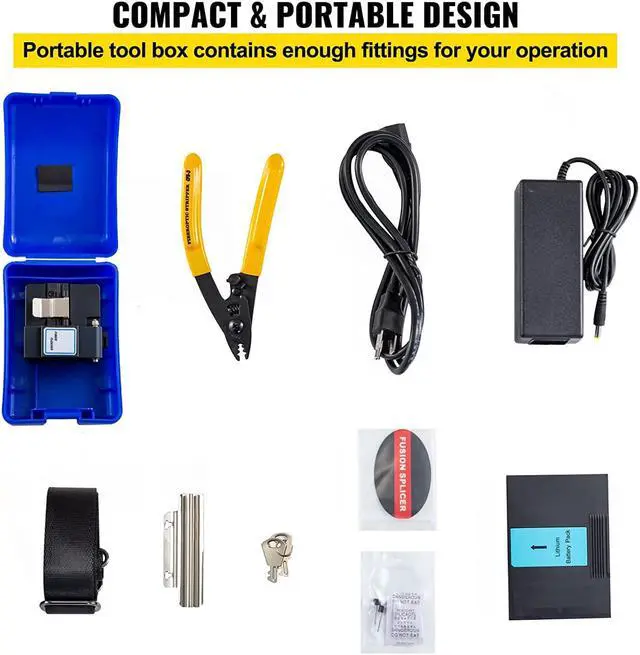

Exquisite Toolbox
Fusion splice machine comes with plenty accessories, fiber stripper, AC adapter, lithium battery, charger, cooling tray, fiber cleaver, carrying strip, and so on. Toolbox keeps it clean and protects it against strong vibrations and shocks.
Wide Application
Fiber fusion is especially suitable for optical fiber and cable projects, maintenance scientific research, and teaching in telecommunications. Radio and television, railway, petrochemical, electric power, military, public security, and other communications fields are also applied
Model: JW4108S
Splicing time: 9s
Heating time: 30s
Cleaved Length: 8~16mm
Fiber Image/ Magnification: 300/200
Heat shrink bush: 60mm, 40mm and a series of miniature bush
Power supply: 12V built-in lithium battery
Battery Capacity: 5200mah
Charging time: 3h
External adapter: input AC100-240V50/60HZ, output DC 13.5V / 4.5A

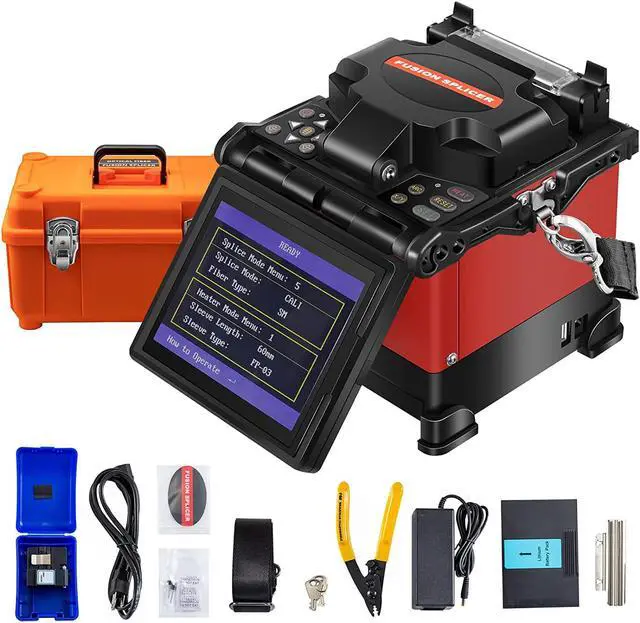

Package Content
1 x Fusion Splicer
1 x Fiber Cleaver
1 x Power Adapter
1 x Miller stripper
1 x Kit of Accessories
Various Application: Sturdy structures meet different working area requirements, dust-proof, shock-proof, and freeze-proof. The fusion machine is especially suitable for optical fiber and cable projects, maintenance scientific research, electric power, and other communications.
Excellent Splicing Performance
The fiber fusion splicer can complete the whole process of fiber fusion splicing automatically in just 9 seconds, heating in 30 seconds. The high-speed image processing technology unique precision positioning technology is applied while working.
3 in 1 Fiber Holder
SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable.
Applicable splice machine fibers: SM( 0.02 db); MM( 0.01 db); DS( 0.04 db); NZDS( 0.04 db). It is fully qualified with FTTH project, security monitoring and other fiber cable splicing projects.
High-Resolution Screen
The fusion splicing machine adopts 5-inch high-resolution LCD screen. The X/Y axis X/Y axis or a separate display shows at the same time, 300/200 times magnification. You can easily and clearly observe the X axis and Y axis direction of the optical fiber.
fiber fusion splicer
Fiber Fusion Splicer Machine,
AI-7C fiber fusion splicer
Dependable Power Supply
5200 mah high-capacity lithium battery features charging time 3 hours, continuous splicing and heating about 200 times. Built-in power meter and VFL effectively measure connection loss, verify continuity and help assess fiber link transmission quality.
Exquisite Toolbox
Fusion splice machine comes with plenty accessories, fiber stripper, AC adapter, lithium battery, charger, cooling tray, fiber cleaver, carrying strip, and so on. Toolbox keeps it clean and protects it against strong vibrations and shocks.
Wide Application
Fiber fusion is especially suitable for optical fiber and cable projects, maintenance scientific research, and teaching in telecommunications. Radio and television, railway, petrochemical, electric power, military, public security, and other communications fields are also applied
Specifications
Model: JW4108S
Splicing time: 9s
Heating time: 30s
Cleaved Length: 8~16mm
Fiber Image/ Magnification: 300/200
Heat shrink bush: 60mm, 40mm and a series of miniature bush
Power supply: 12V built-in lithium battery
Battery Capacity: 5200mah
Charging time: 3h
External adapter: input AC100-240V50/60HZ, output DC 13.5V / 4.5A
Package Content
1 x Fusion Splicer
1 x Fiber Cleaver
1 x Power Adapter
1 x Miller stripper
1 x Kit of Accessories
