SM&MM Automatic Intelligent Optical Fiber Fusion Splicer Optical Fiber Welding Splicing MachineIntegrate Visual Fault Locator and Optical Power Meter (Ai-9) & Fiber Cleaver Kit

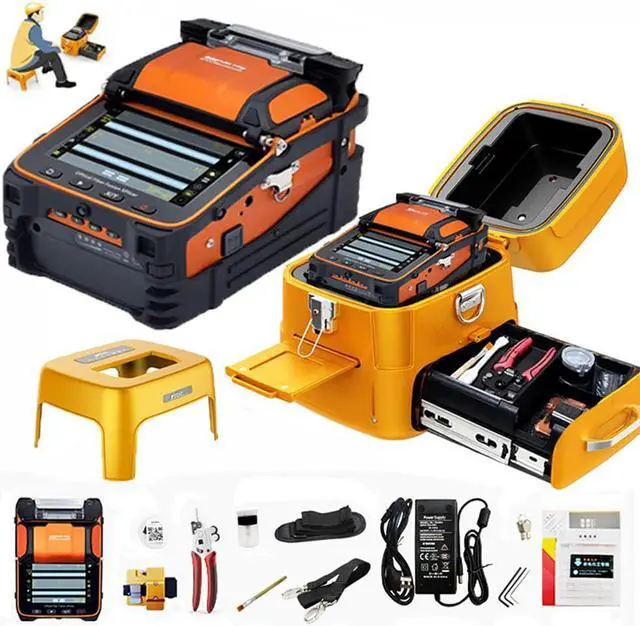

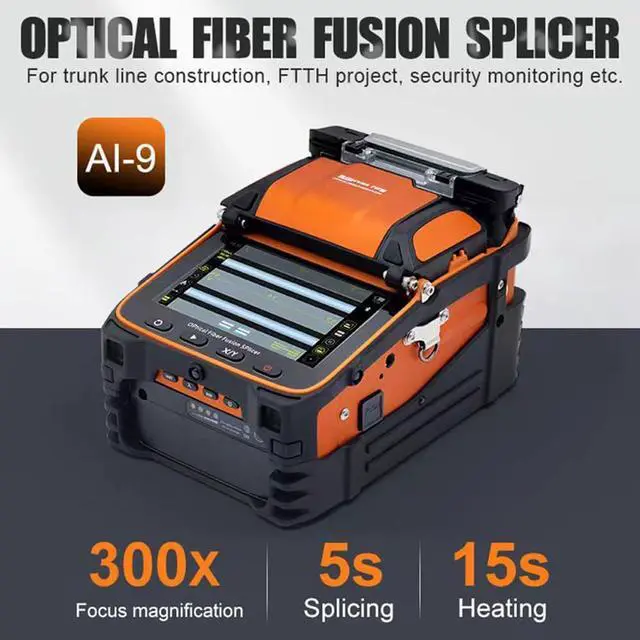

AI-9 fusion splicer use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with trunk construction of medium and short distance, FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes.

5 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines. Under the conditions of rigorous testing, the performance is still outstanding; toolbox is small, exquisite, durable, and with unique bench design. The design of operating platform reflects the humanistic care; Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation. The core parts are using imported brands, aviation metal body material with exquisite details. With the combination of advanced technology and design, the new generation of optical fiber fusion splicer will bring you a reliable and comfortable user experience.

Parameter
1.
Fiber alignment: Core/cladding alignment / Manual alignment

2.
Splicing time: 5S, Heating time: 15S

3.
Heating mode: Automatic heating (Preheating)

4.
Focus mode: Six motors Auto focus

5.
Screen: 5 inch TFT color display

6.
Magnification: 300 for X or Y view, 150 for X or Y view

7.
Splicing Mode: Normal / high precision splicing

8.
Splicing method: Fully automaticStep by step splicing

9.10 Languages to switch freely: English, french, Russion, Italian, Portuguese, Polish, Spanish, Thai, Arabic

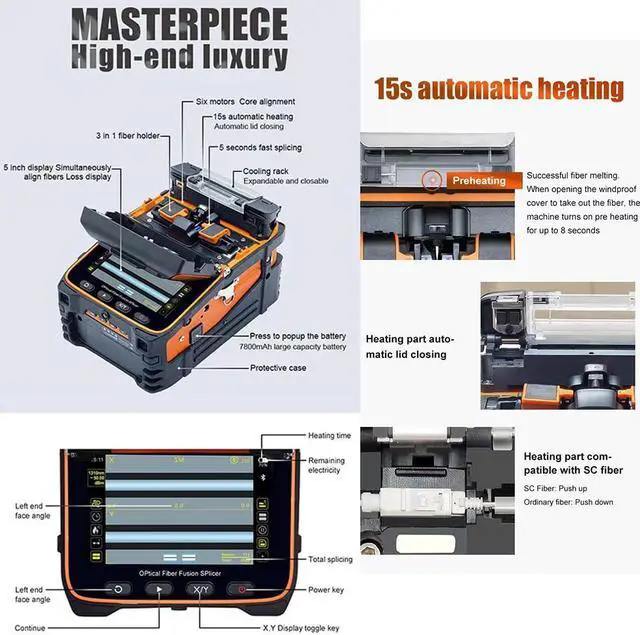

Ai-9 Optical Fiber Fusion Splicer Features
Built-in Optical Power Meter:
Wavelength: 850nm1300nm1310nm1490nm1550nm1625nm
Measuring Range: -70 ~ +6db
Absolute Error: <0.3db(-50dbm ~ +3dbm Range).
Built-in Visual Fault Locator:
Power: 15mw, 2hz flashing And Constantly Bright Mode.

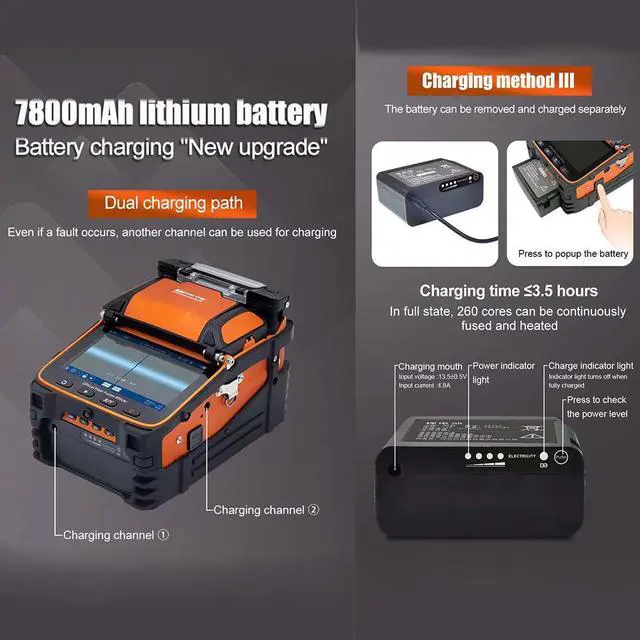

Built-in battery: 7800 mA high-capacity lithium battery, charging time 3.5 hours, continuous splicing and heating about 200 times.

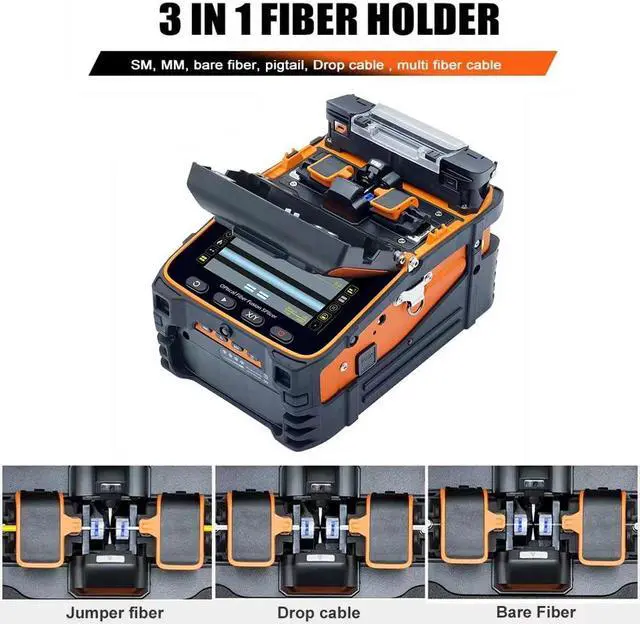

Fiber holders: 3 in 1 fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable.
Applicable Fibers: SM(G. 652&G. 657)MM(G. 651)DS(G. 657)NZDS(G. 655).
Splice Loss: 0.025 dB (SM) 0.01 dB (MM) 0.04 dB(DS/NZDS).
Return loss: Better than 60DB.
Shrinkable tube: 60mm50mm40mm25mm.
Fiber diameter: Cladding
Diameter: 80-150mCoating
Diameter: 100-1000m.
Fiber Cleave Length: Coating
less than 250µm: 8-16mmCoating
less than 250-1000µm: 16mm.
Control technology: Real-time control and calibration of fusion ARC.
Splicing record storage: Synchronize to the phone, the server to cloud storage unlimited.
Software updates Length: Automatically update Update by a key.
Boot time: 1 second
Power supply: Input AC100-240V 50 / 60HZ, output DC 13.5V / 4A, the current power mode can be identified, real-time detection of battery power.
Operating Conditions: Temperature -15 ~ +50, humidity: <95% RH (no condensation) Working altitude: 0 ~ 5000m. Resist max. wind speed: 15m / s.

Splicing Fiber Type
3 in 1 fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable.
Applicable Fibers: SM(G. 652&G. 657)MM(G. 651)DS(G. 657)NZDS(G. 655) It is fully qualified with trunk construction of medium and short distance, FTTH project, securitymonitoring and other fiber cable splicing projects.

7800mah high-capacity Lithium Battery
7800 mA high-capacity lithium battery, charging time 3.5 hours, continuous splicing and heating about 200 times.

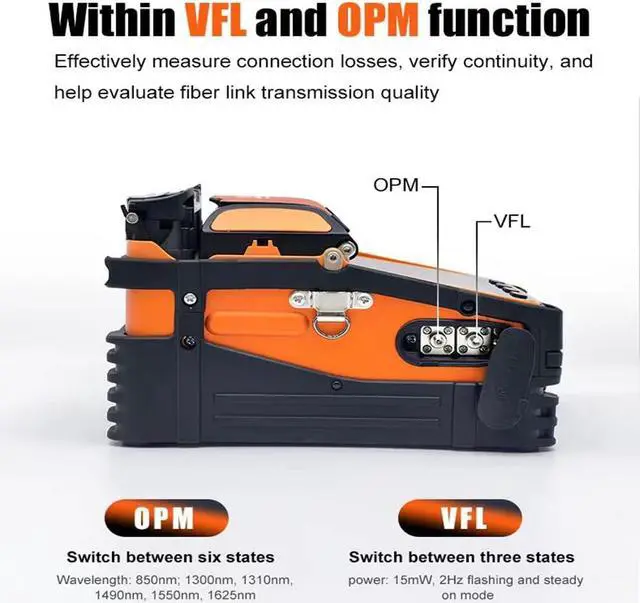

Bulit-in power meter and VLF
Visual Fault Locator:
Power: 15mw, 2hz flashing And Constantly Bright Mode.

Optical Power Meter:
Wavelength: 850nm 1300nm1310nm1490nm1550nm1625nm
Measuring Range: -70 ~ +6db
Absolute Error: <0.3db(-50dbm ~ +3dbm Range).

Universal Interface suit for FC SCSTLC

Software Bluetooth Connetion
Download the phone APP, you can learn various operration in the APP, as well as update the mobile app and connect to the machine to synchronizes update. The mobile phone is not needed when splicing. The mobile APP can be used to turn on/off the machine menu, ARC calibration, remote control, smart lock, etc.

Service Commitment
Once splicing reaches to 50, 000 times free replacement a new machine.

Five years free maintaince and repair support, but these circumstances are not within the scope of this provision.

Except for the cleaver, miller clamp, stripping pliers, fiber holders and other tools whose life depends on the frequency of use and the use of the environment. Also electrodes are consumption material.

Industrial Quad-Core Chip CPU
Using the industrial Quad-Core Chip CPU have follow feature:

Synchronous operation, speed response, no

jammed, super experience.
