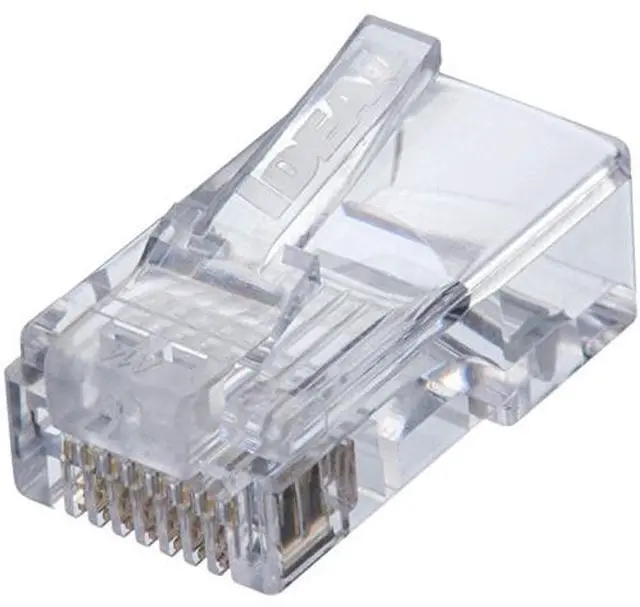

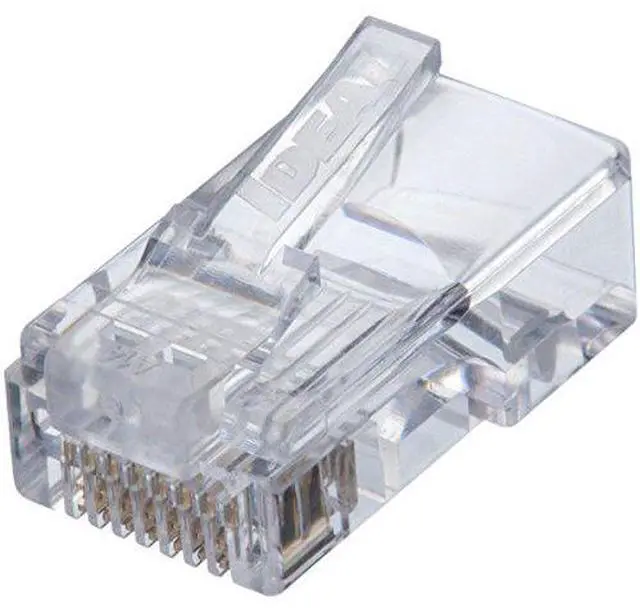

IDEAL 85-371 CAT-5E Feed-Thru RJ45 Mod Plugs (50 pk)

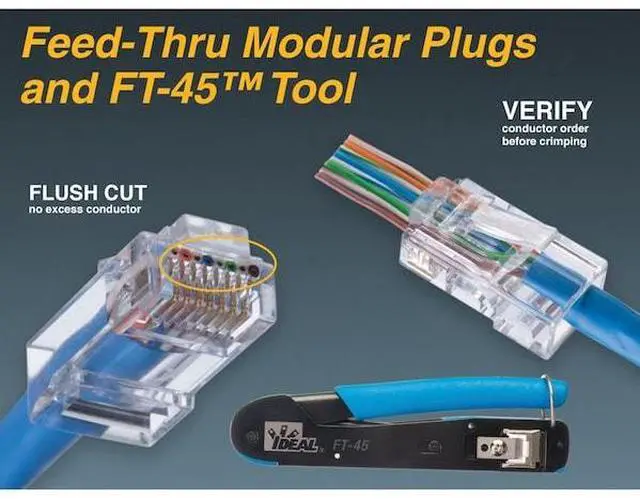

Open-end Feed-Thru connectors offer several advantages over standard closed end connectors. Conductor order can be verified prior to crimping. Conductors that feed-thru the connector are inserted far enough to be pierced by the pin below. The cable can be pushed or pulled into the connector to ensure that the twisted pairs are as close to the pin contacts as possible and that the jacket is seated beyond the primary strain relief for a secure connection. A patent pending design enables conductors to be cut flush with the end face of the connector when used with the FT-45 tool.

CAT5e and CAT6 connectors are both single piece connectors that use the same assembly process, no special assembly or multiple pieces for CAT6
Main Features:
NEW Feed-Thru design simplifies connector to cable assembly
Flush cut of excess conductors minimzes inadvertent contact outside of the plug
Designed for best performance when used with the IDEAL FT-45? Crimp Tool (30-495)
8 position, 8 contact RJ-45 modular plug for CAT5e, 100? balanced twisted pair 100 MHz cables
50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles
