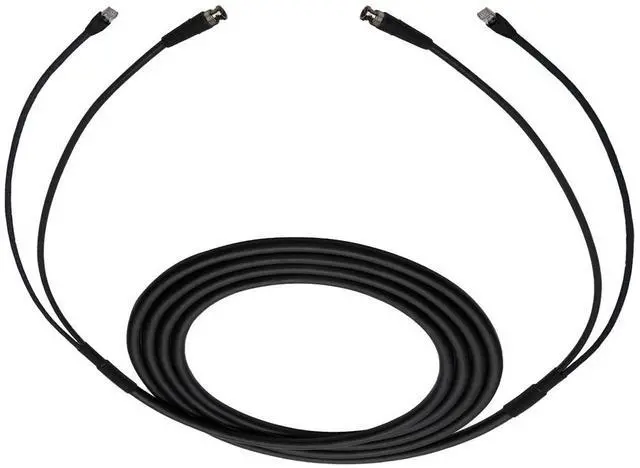

4K UHD 12G-SDI+ CAT6 Combo Cable (75ft/22.5m)
Dual-Purpose Combo Cable | High-Performance CAT6 | RG6 Quad Shield Coax
The BG-CAB-SDICAT75 is a professional-grade combo cable that combines RG6 Quad Shield coaxial cable and CAT6 Ethernet cable in one convenient spool. Designed for high-performance installations, it simplifies cabling for both video and data transmission, reducing clutter and saving installation time.
With RG6Q 18AWG copper-clad steel conductors for reliable satellite, CATV, and HDTV signals, paired with CAT6 23AWG solid bare copper conductors for fast network connectivity up to 550 MHz, this cable delivers exceptional performance across multiple applications. Ideal for residential, commercial, and professional AV setups, it supports data, video, audio, telephony, LAN networking, PoE, and digital broadcasting.
Built to industry standards, the cable is UL-listed, CMG-rated, RoHS-compliant, and FT4 flame-tested, ensuring safe and dependable operation.
Dual-Purpose Combo Cable
Integrates RG6 Quad Shield coax and CAT6 UTP into a single run for simplified installation
High-Performance CAT6
23 AWG solid bare copper, UTP, sweep tested to 550 MHz, ideal for gigabit networks and PoE/PoE+ applications
RG6 Quad Shield Coax
18 AWG copper-clad steel conductor with multiple shielding layers for superior signal integrity in satellite, CATV, and HDTV
Wide Application Support
Suitable for data, video, audio, communications circuits, LAN, CDDI, ATM, Token Ring, and IEEE 802.3af/at (PoE/PoE+)
Standards Compliant
UL Listed, CMG rated, RoHS compliant, ANSI/TIA-568-C.2, ISO/IEC 11801, IEC 61156-5, NEC Articles 800, and CEC approved
Durable Jacket & Construction
Black PVC jacket with ripcord for easy termination and long-term protection
Professional Packaging
Supplied on a spool for efficient handling and installation
Flame-Tested Safety
FT4 rated and UL 1685 compliant for secure in-wall installations
| Conductor Material - RG6Q | Copper Clad Steel |
|---|---|
| Conductor Material - CAT6 | Solid Bare Copper |
| AWG - RG6Q | 18 |
| AWG - CAT6 | 23 |
| Insulation Material - RG6Q | F/PE |
| Insulation Material - CAT6 | HDPE |
| Diameter - RG6Q | 4.57 mm |
| Diameter - CAT6 | 1.03 mm |
| Screen - CAT6 | N/A |
| Bonded AL-Mylar Shield - RG6Q | >= 125% |
| Bonded AL-Mylar Shield - CAT6 | N/A |
| Braid Shield - RG6Q | 16 x 5/0.12 mm ( >= 60%) |
| Braid Shield - CAT6 | N/A |
| Double Bonded AL-Mylar Shield - RG6Q | >= 125% |
| Double Bonded AL-Mylar Shield - CAT6 | N/A |
| Braid Shield - RG6Q | 16 x 4/0.12 mm ( >= 40%) |
| Braid Shield - CAT6 | N/A |
| Rip Cord - RG6Q | N/A |
| Rip Cord - CAT6 | 150 D |
| Jacket | PVC |
| Nom. Thickness - RG6Q | 1.0 mm |
| Nom. Thickness - CAT6 | 0.58 mm +/- 0.1 mm |
| Min. Thickness - RG6Q | 0.80 mm |
| Min. Thickness - CAT6 | N/A |
| Outer Diameter - RG6Q | 7.25 +/- 0.15 mm |
| Outer Diameter - CAT6 | 6.2 +/- 0.2 mm |
