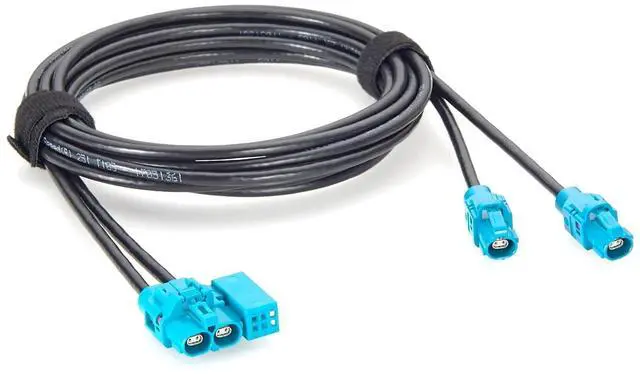

Rosenberger H-MTD Dual Port Female to Dual H-MTD Female Automotive Ethernet Cable 99K1HG-1CAZ5-Z to E6K10A-1CAZ5-Z with 6 Pin MQS 10Gbps for ADAS, LiDAR, Domain Controller (2M/6.6FT)

Item #: 9SIVTD8M583789
Mfr. Part #: C6T1824-XMHCD1157
UNSPSC: 26121609

Be the first to review this product...

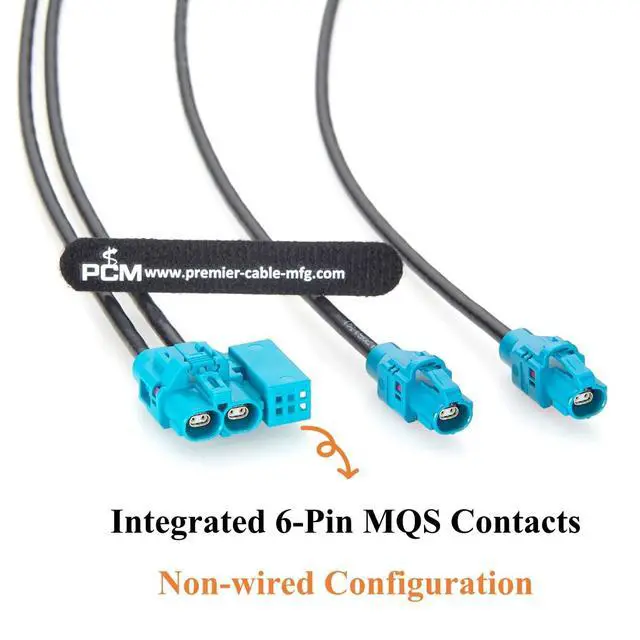

Original Rosenberger H-MTD Connector 2-in-1 H-MTD Automotive Ethernet Cable, equipped with Rosenberger H-MTD Dual Port Z Code Female with 6 Pin MQS contacts (99K1HG-1CAZ5-Z), and two Rosenberger H-MTD Z Code Female Connector (E6K10A-1CAZ5-Z). Universal Z coding design to prevent mis-mating.; 10Gbps High Speed Rosenberger H-MTD Vehicle Network Cable, supports up to 10Gbps high-speed data transmission with 100/1000BASE-T1 compatibility, ensuring ultra-low latency and stable communication for ADAS, autonomous driving, and ECU systems.; Integrated 6-Pin MQS Contacts Rosenberger H-MTD Dual Port to Single Port Automotive Ethernet Breakout Cable, includes 6-pin MQS terminal contacts in a non-wired configuration, providing a reserved interface structure for automotive harness integration, system expansion, and OEM engineering requirements.; 100 Ohm & DC10GHz The Rosenberger H-MTD Vehicle Ethernet Harness, Built with GG 2Speed 251 shielded twisted-pair cable, Support 100 Ohm Impedance and DC-10GHZ Frequency, resist electromagnetic interference (EMI/RFI).; Applications The Dual Port H-MTD Automotive Ethernet Splitter Cable, Ideal for ADAS cameras, LiDAR and radar sensors, ECU communication, domain controllers, autonomous driving, in-vehicle infotainment, automotive R&D, telematics systems, HIL/SIL simulation, and high-speed in-vehicle Ethernet networking applications.; Custom Cable We are a professional cable manufacturer, please contact us for customised requiremen

Overview

Specs

Reviews

Specification: Product
Name: Rosenberger H-MTD 2-in-1 Automotive Ethernet Breakout Cable
Part No.: PCM-ZC-0140

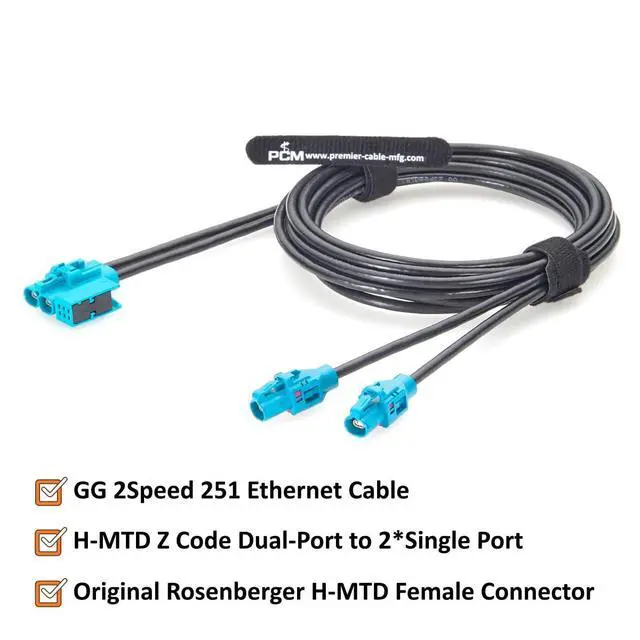

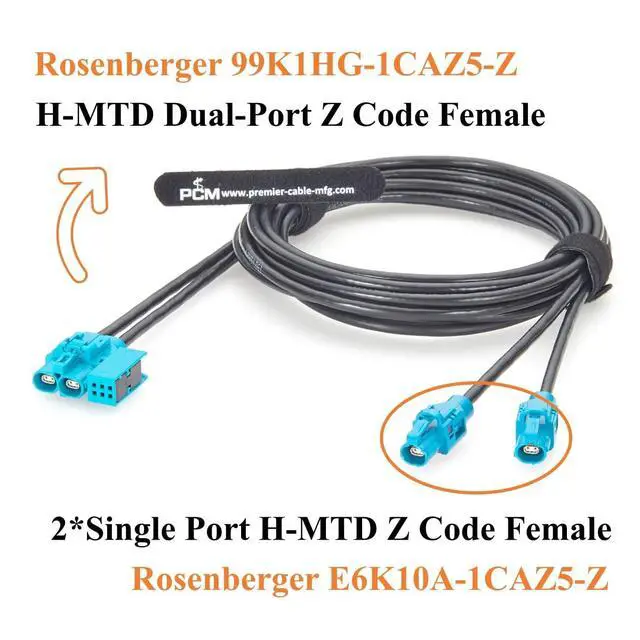

Connector A: Original Rosenberger H-MTD Z Code Dual-Port Female Connector with 6 Pin MQS terminals, 99K1HG-1CAZ5-Z
Connector B: 2xOriginal Rosenberger H-MTD Z Code Female Connector, E6K10A-1CAZ5-Z
Coding: Coding Z (Universal)
Cable Length: 2M

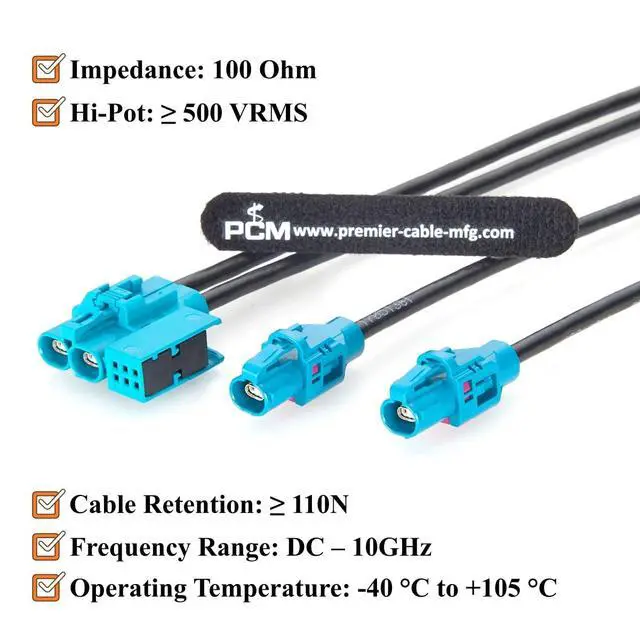

Impedance: 100 Ohm
Frequency Range: DC 10GHz
Hi-Pot: 500 VRMS
Cable Retention: 110N
Operating Temperature: -40 °C to +105 °C

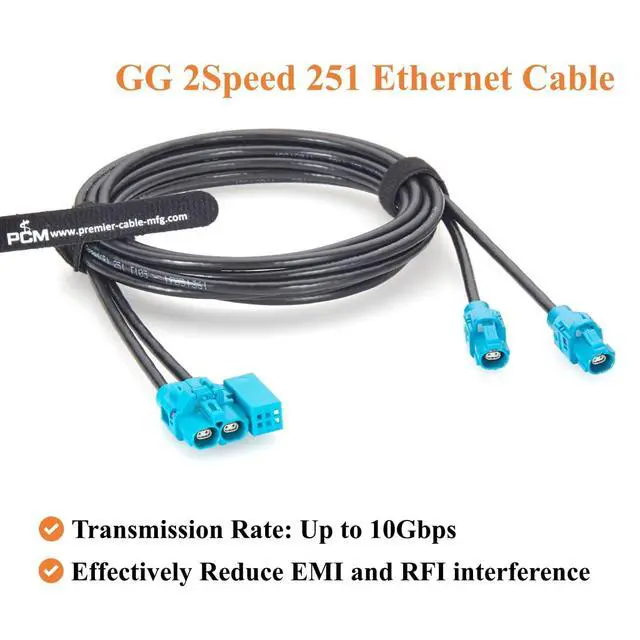

Wire: GG 2Speed 251 Ethernet
Cable Transmission Rate: Up to 10Gbps
