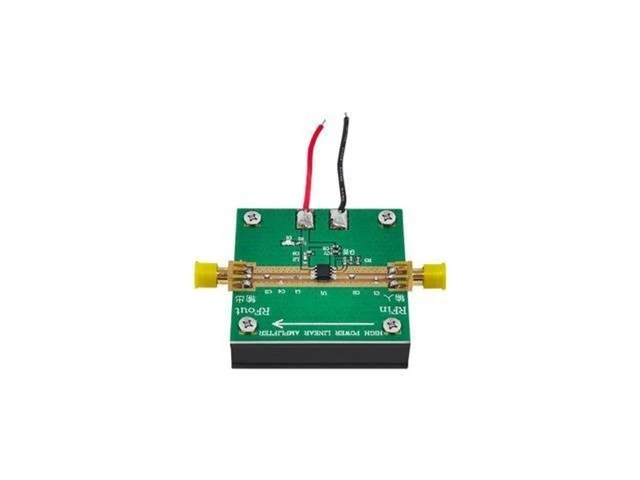

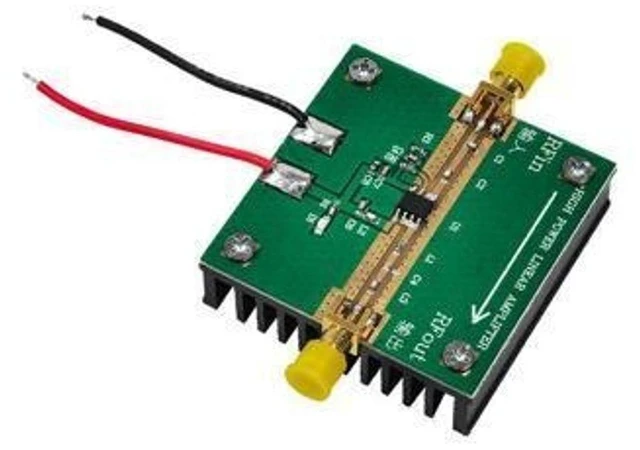

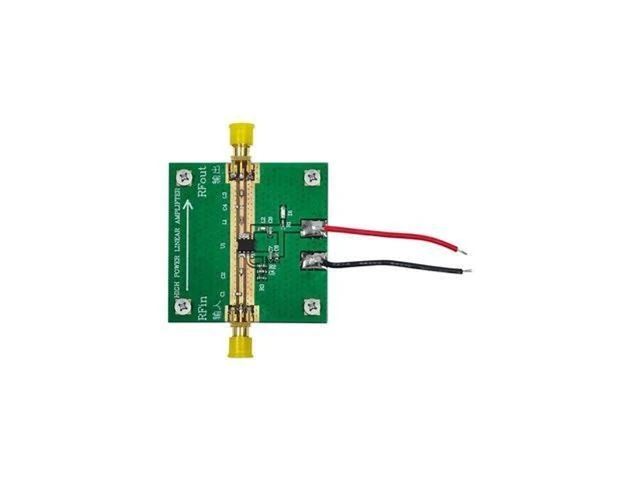

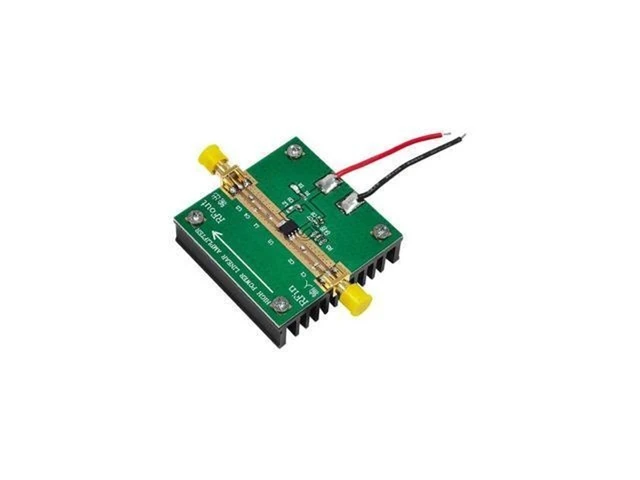

RF2126 2.4GHz 1W RF Power Amplifier WiFi Bluetooth Amplifier Video Transmission Amplifier 12 dB @ 2450 MHz 400-2700 MHz 70mm by 50mm by 20mm Including SMA 50mm by 50mm by 20mm Excluding SMA
- Item #: 9SIVUX4M8J5368
- Mfr. Part #: 114191040573
- Designed as a 2.4 GHz, 1 W radio frequency power amplifier for WiFi, Bluetooth, and video transmission applications.

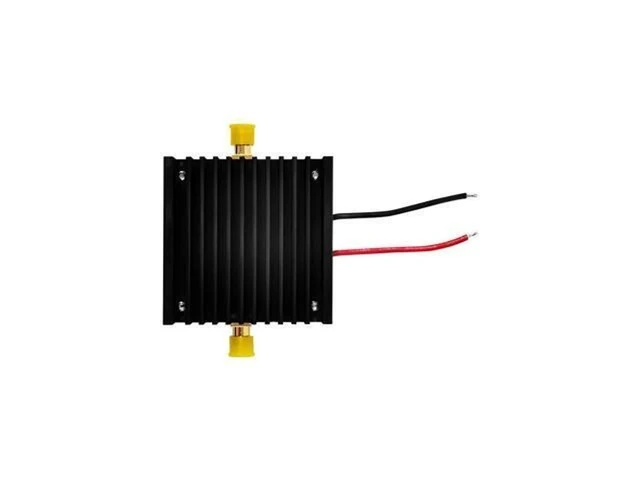

- Built-in heat dissipation is specified to help manage heat during amplifier operation.
- Operates from a 6 V power supply and draws 500 mA at maximum power output.
- Provides 12 dB gain at 2450 MHz for signal amplification at the specified frequency.
- P1dB is specified as 30 dB - 1 W at 2450 MHz in the provided specifications.
- Supports an operating frequency range of 400 to 2700 MHz.
- Input and output impedance are both specified as 50.
- Measures 70 mm x 50 mm x 20 mm with the protruding SMA interface, or 50 mm x 50 mm x 20 mm without it.
+
+
Overview
Specs
Reviews
Product Description:
RF2126 radio frequency power amplifier designed for 2.4GHz WiFi, Bluetooth, and video transmission applications. Features heat dissipation and a 1W output specification at 2450 MHz.
Core Selling Points:
Provides 12 dB gain at 2450 MHz. Supports an operating frequency range of 400 to 2700 MHz. The unit includes heat dissipation for its radio frequency amplification application.
Technical Specifications:
Model: RF2126. Power supply: 6V, 500mA at maximum power output. Gain: 12 dB @ 2450 MHz. P1dB: 30dB - 1W @ 2450 MHz. Operating frequency: 400 - 2700 MHz. Input and output impedance: 50. Dimensions with protruding SMA interface: 70mm x 50mm x 20mm. Dimensions without SMA interface: 50mm x 50mm x 20mm.
Before Purchase:
Verify that your application uses a 6V power supply and 50 input and output impedance. Check the required installation dimensions, as the overall size differs depending on whether the protruding SMA interface is included.
