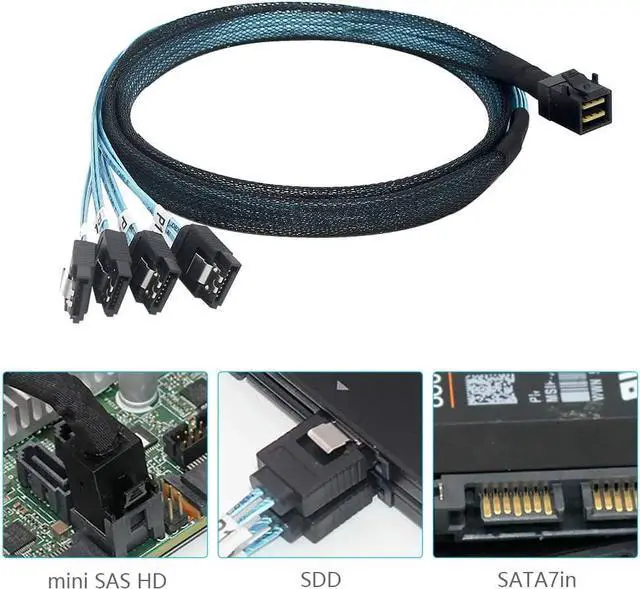

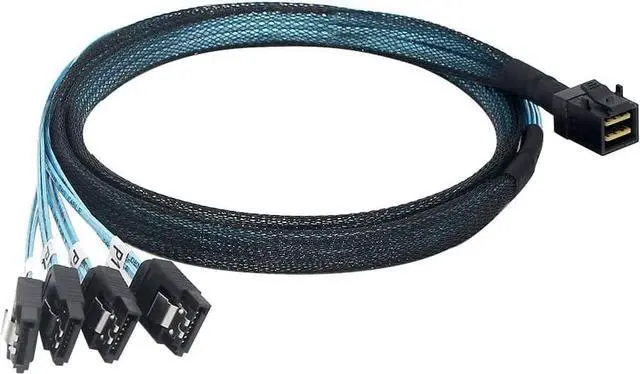

Internal Mini SAS to SATA Cable, SFF-8643 to SATA Forward Breakout Compatible with Raid Controller Hard Drive (3.3ft)
- Item #: 9SIV36AKE36552
- Mfr. Part #: HA-PMUHBS7131
- UNSPSC: 26121604
- designed to connect a 12 Gbps host bus adapter or RAID controller with SFF-8643 to 4 discrete SATA drives; Mini SAS HD to SATA adapter cable provides reliable internal connectivity between a high density RAID controller card and direct attached storage devices with a SATA plug.
- 36 pin SFF 8643 connector and 4 x 7 pin SATA connectors provides both 3 Gbps and 6 Gbps compatibility while migrating to a to 12 Gbps storage area network system

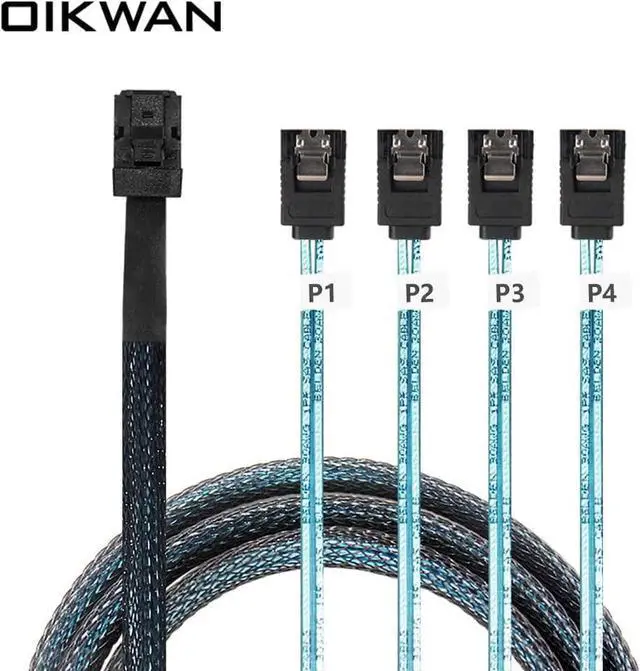

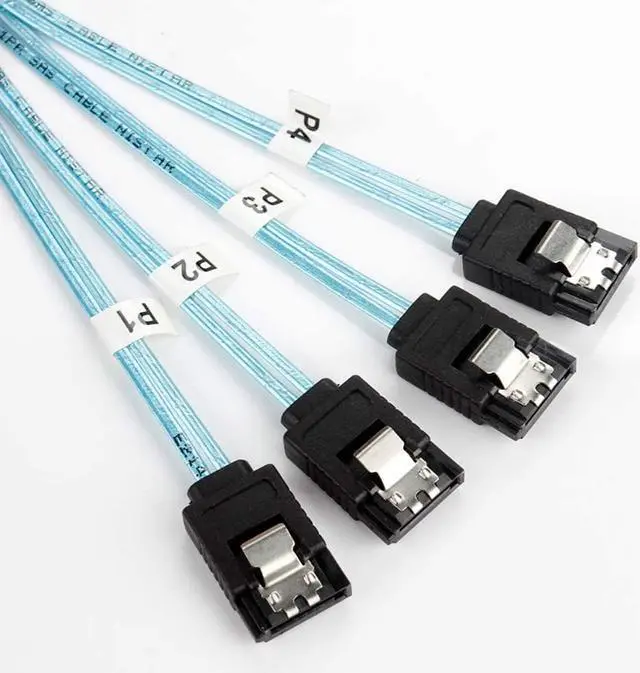

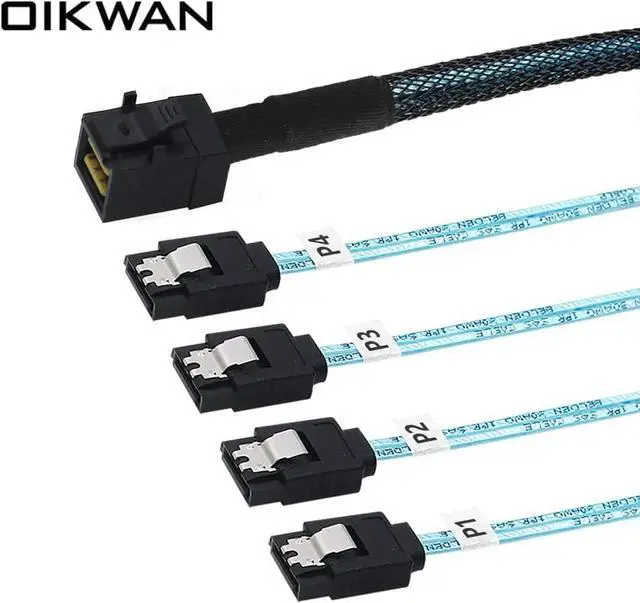

- HD mini SAS breakout cable designed with acetate cloth tape over slim ribbon cables for strain relief to protect cables without rigidity; Woven mesh sheath covers half of the cable for easy routing; P1 to P4 markers provide easy ID after installation; Low profile SATA connectors have easy-grip treads with stainless steel latches to prevent accidental disconnection and reduce vibration.
+
+
Overview
Specs
Reviews
High Density Storage Migration Solution
OIKWAN Internal HD Mini-SAS 8643 to 4 x SATA Cable is an essential component for migrating from a 6 Gbps to 12 Gbps storage area network. It provides multiple lanes of high speed SATA traffic through a single cable in a sturdy but flexible cable that is built to withstand 24/7 use.
Important Notes
Pair with a 4 port SATA to Power Splitter Cable to provide power to the drives
Data transfer speed is determined by the capabilities of your SAS controller and SATA drives
Cable Specifications
- Host/Controller Connection: 1 x 36 pin HD Mini-SAS SFF-8643 - male with latch
- SATA Drive Connections: 4 x 7 pin SATA receptacle female with latch
- Wire - 30 AWG Style 207044 flat ribbon cable
- Compatible with 2.5", 3.5" SATA I, II, III hard drives
- RoHS compliant
OIKWAN Internal HD Mini-SAS 8643 to 4 x SATA Cable is an essential component for migrating from a 6 Gbps to 12 Gbps storage area network. It provides multiple lanes of high speed SATA traffic through a single cable in a sturdy but flexible cable that is built to withstand 24/7 use.
Important Notes
Pair with a 4 port SATA to Power Splitter Cable to provide power to the drives
Data transfer speed is determined by the capabilities of your SAS controller and SATA drives
Cable Specifications
- Host/Controller Connection: 1 x 36 pin HD Mini-SAS SFF-8643 - male with latch
- SATA Drive Connections: 4 x 7 pin SATA receptacle female with latch
- Wire - 30 AWG Style 207044 flat ribbon cable
- Compatible with 2.5", 3.5" SATA I, II, III hard drives
- RoHS compliant
