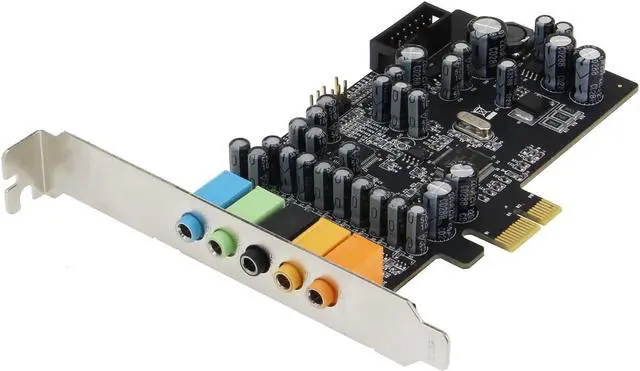

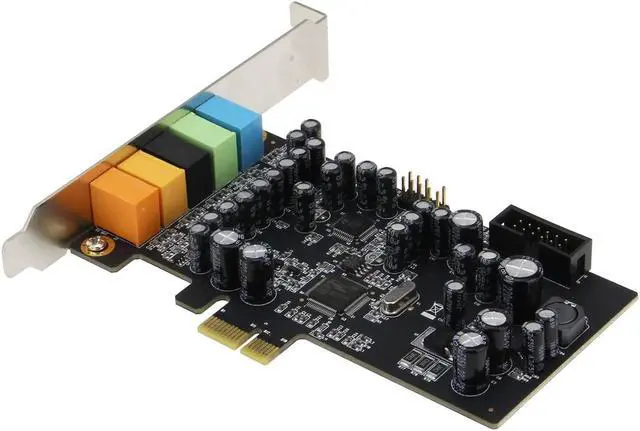

Sedna - SE-PCIE-SC-10 PCIe 7.1 Channel Sound Card (CM8828 + CM9882A) with SPDIF Bracket (Standard and Low Profile Brackets are Included)

Features :

SE-PCIE-SC-10 can create a high-quality home theatre sound system. It offers SPDIF input and output ports which deliver crystal-clear digital optical audio, for the ultimate listening experience.
Versatile performance.

With up to 24-bit and 192KHz playback and recording, this 7.1 surround sound adapter card delivers high-definition audio for superb sound quality.

Specifications :

Hardware
Bus Type : PCI Express X1
Card Type : Standard Profile
Chipset : C-Media - CM8828 + CM9882A

Performance :
Audio Specifications : 24-bit / 192KHz playback and recording
SNR: Approx 92dB (A-weighting) at front output

Connections:
- Analog left / right line input
- Analog left / right microphone input
- S/PDIF digital optical input
- S/PDIF digital optical output
- 2x 10-pin header
- 9-pin header
- 2x analog CD-input header
- Front left / right analog output
- Side surround left / right analog output
- Center / subwoofer analog output
- Rear surround left / right analog output

Full Duplex Support : Yes
Connector(s) :
Connector Type(s) : 1 - PCI Express x1 Male
External Ports : 2 - Toslink (SPDIF; Optical) Female
6 - 3.5 mm Mini-Jack (3 Position) Female
Internal Ports : 2 - MPC2 (4 pin; Audio) Male
: 2 - IDC (10 pin; Motherboard Header) Male
: 1 - IDC (9 pin; USB 2.0; Motherboard Header) Male

Software
OS Compatibility : Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64)
ASIO driver support

System Requirements : PCI Express enabled computer with an available PCI Express x1 slot or higher (x4, x8, x16)
Additional slot on your computer case if installing and using the header bracket

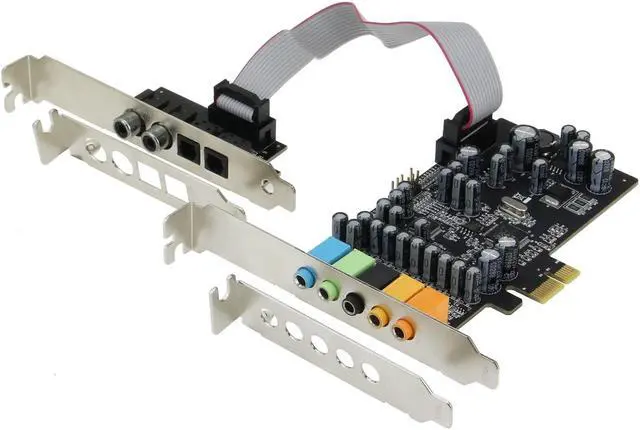

Package Content :

1 x sound card
1 x user manual
1 x Driver CD
1 x Low Profile bracket for sound card
1 x Low Profile SPDIF bracket
