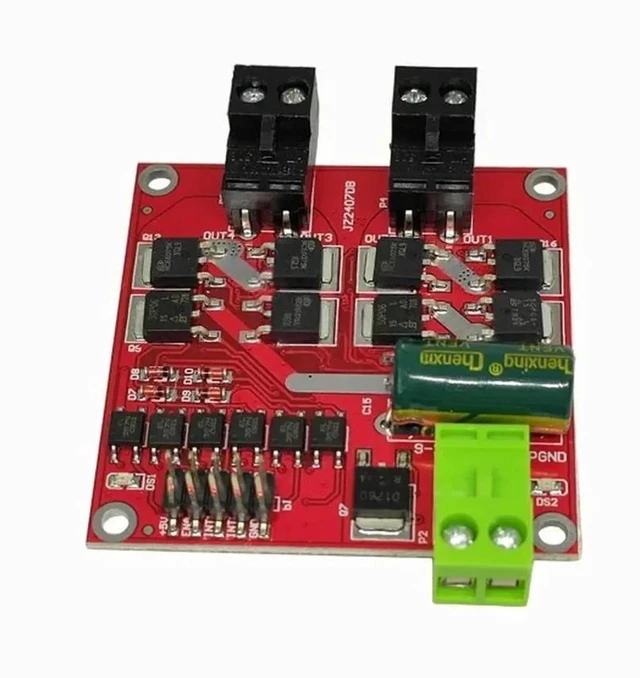

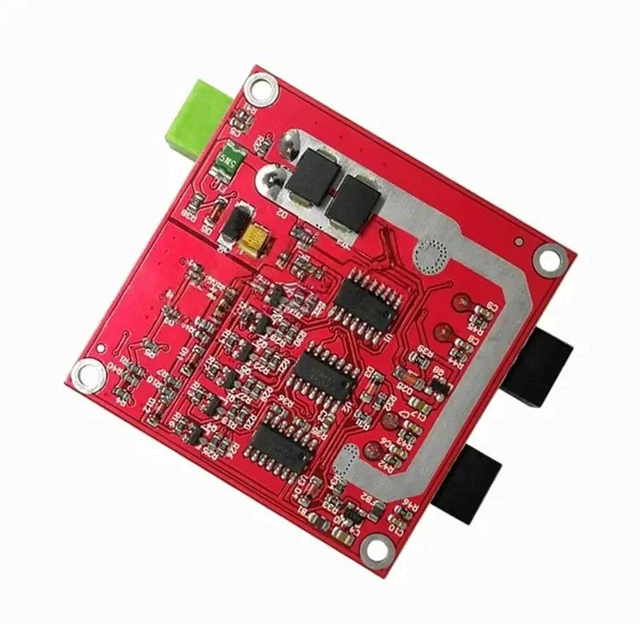

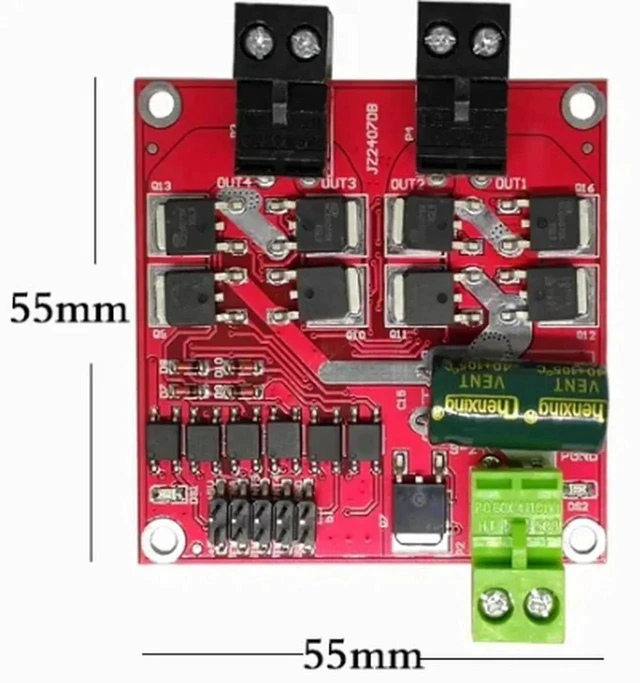

Dual DC Motor Driver Board 1224V 7A 160W H-Bridge Motor Control Module with L298 Logic 2-Channel PWM Speed Control and Bidirectional Drive for Smart Cars and Robot Chassis
- Item #: 9SIVUX4M914670
- Mfr. Part #: 213592119588
- Dual DC motor H-bridge driver uses L298 logic and controls two DC motors independently, with a separate control channel for each motor.
- The module accepts a DC 1224V power input and provides up to 7A continuous current with a rated power of 160W.
- Each motor channel supports forward and reverse rotation, allowing the connected motors to change direction through control signals.
- PWM speed adjustment is available independently for each motor channel to regulate motor speed.
- Built-in freewheeling diodes absorb back-EMF from inductive motor loads and help suppress resulting voltage surges.
- Clearly marked screw terminals provide connection points for wiring without complex soldering work.
- Control signals from common microcontrollers can operate motor forward, reverse, stop, and variable-speed functions.
- Do not exceed the rated voltage and current; adequate heat dissipation is required during prolonged high-current operation.
+
+
Overview
Specs
Reviews
Product Description:
Dual DC H-bridge motor driver module for controlling two DC motors independently in smart car, robot chassis, DIY automation, and model equipment projects.
Core Selling Points:
Provides independent forward and reverse control for each motor, with PWM speed adjustment. Built-in freewheeling diodes absorb back-EMF from motor inductive loads. Clearly marked screw terminals support wiring without complex soldering.
Technical Specifications:
Control logic: L298 H-bridge logic. Input voltage: DC 1224V. Maximum continuous current: 7A. Rated power: 160W. Control functions: independent bidirectional rotation and PWM speed regulation for two DC motors. Protection: built-in freewheeling diodes.
Before Purchase:
Do not exceed the rated voltage or current. Adequate heat dissipation is required during prolonged high-current operation.
