FLASHFORGE Creator 5 4-Toolhead Multi-Color 3D Printer, 256 x 256 x 256mm, 600 mm/s, Auto Leveling

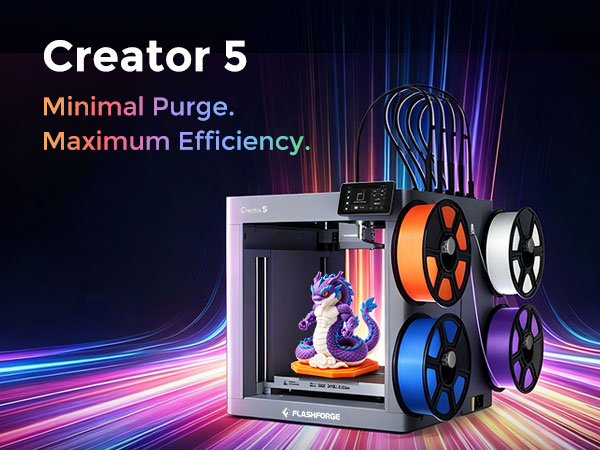

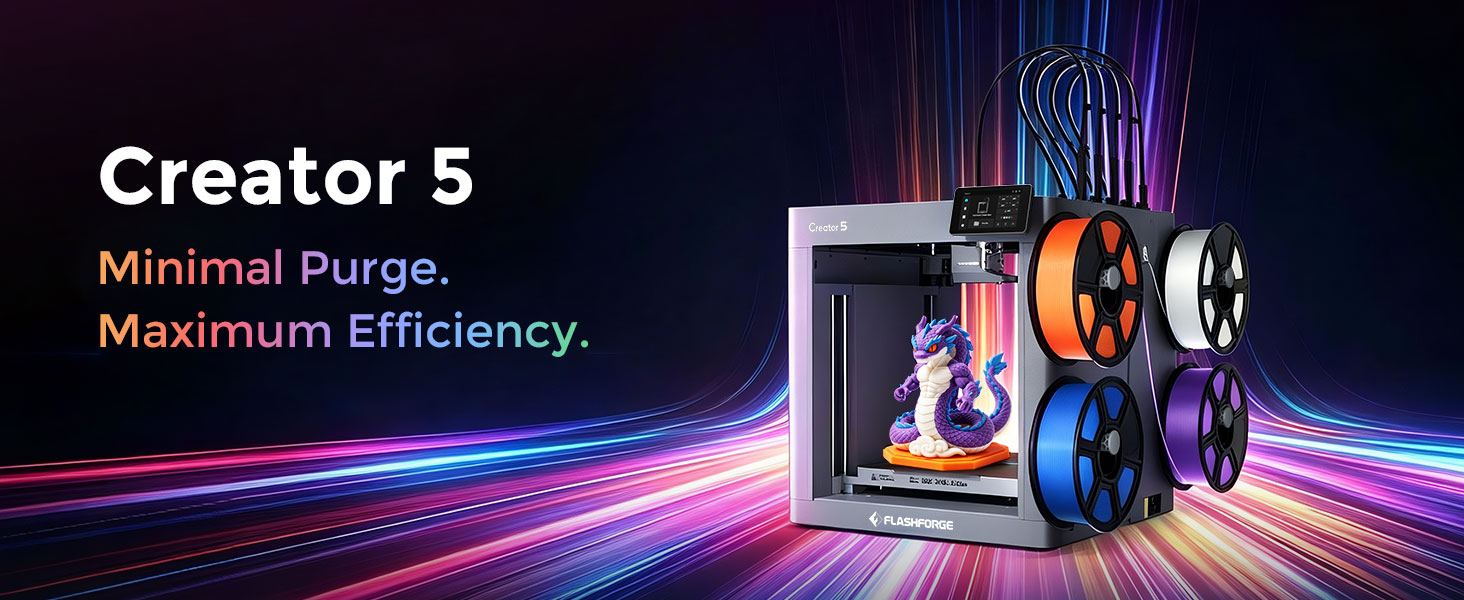

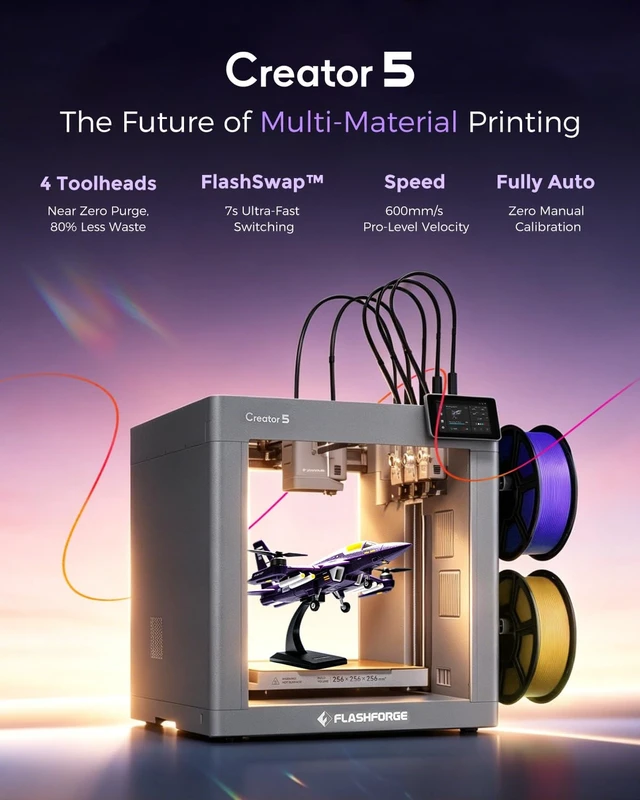

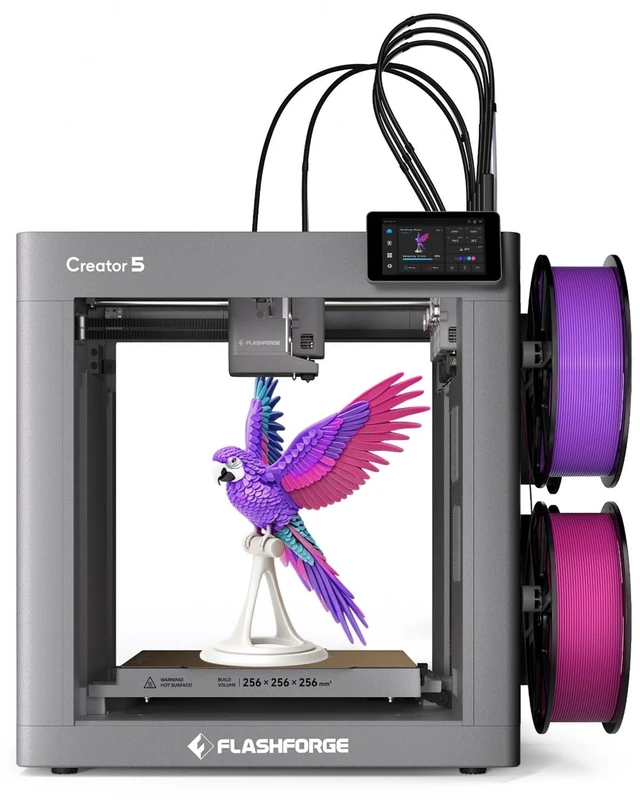

FLASHFORGE Creator 5 4-Toolhead Multi-Color 3D Printer

The FLASHFORGE Creator 5 is a high-speed FDM 3D printer with four independently controlled toolheads. Each toolhead can be assigned a different color or compatible material, allowing multi-color and multi-material prints while reducing color-transfer issues associated with shared-nozzle systems.

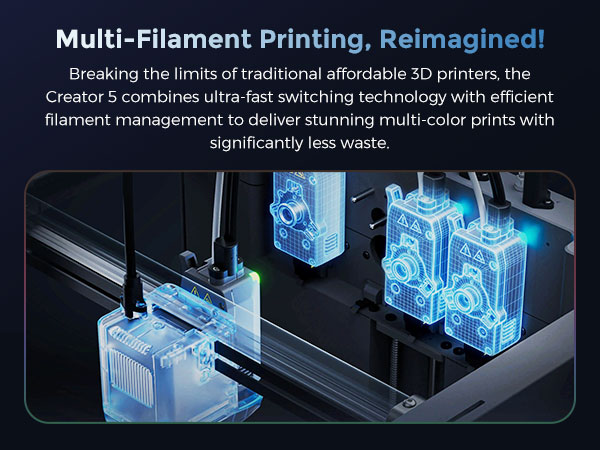

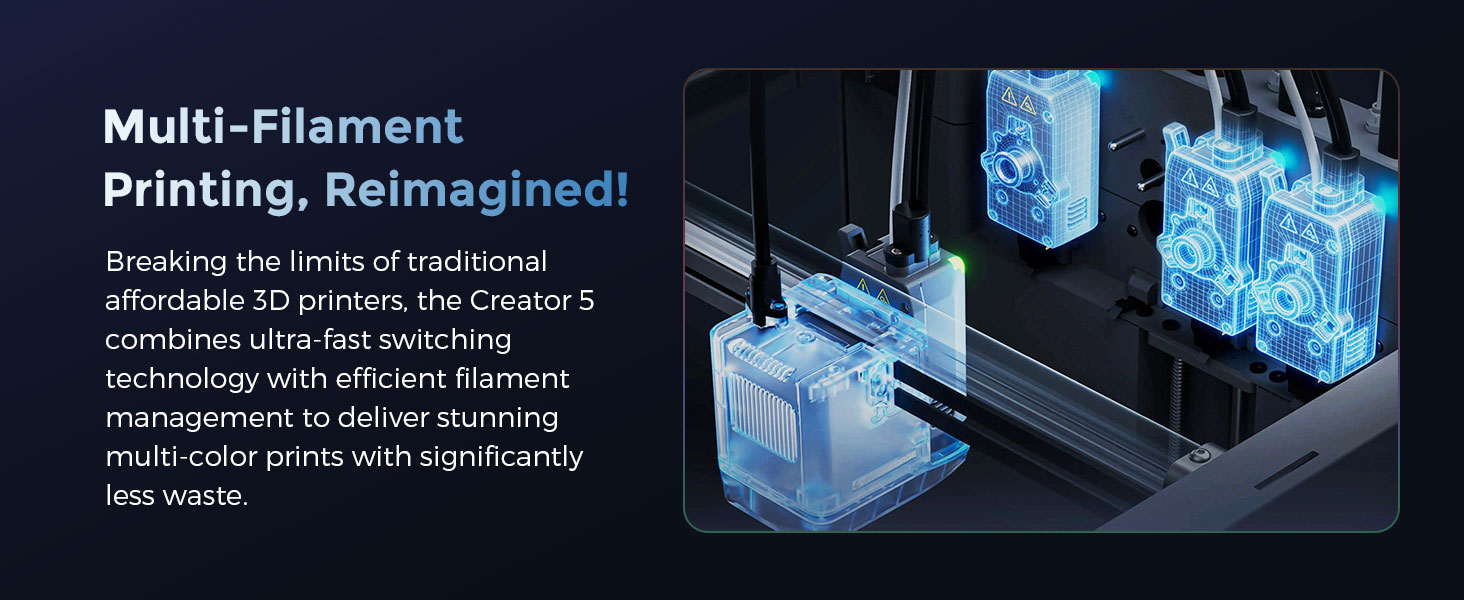

Four independent toolheads

• Up to four colors or compatible materials in one print

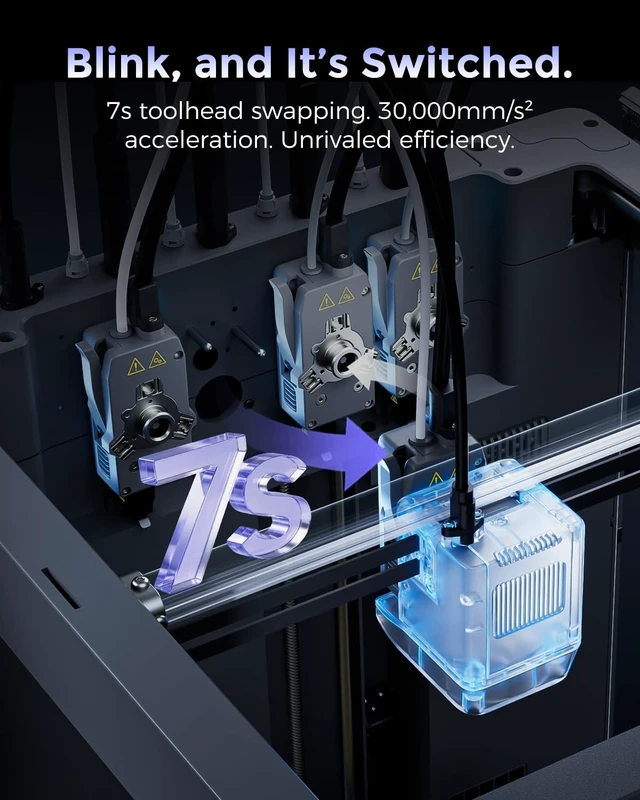

• Four independently controlled toolheads
• Dedicated nozzles help reduce color contamination between materials

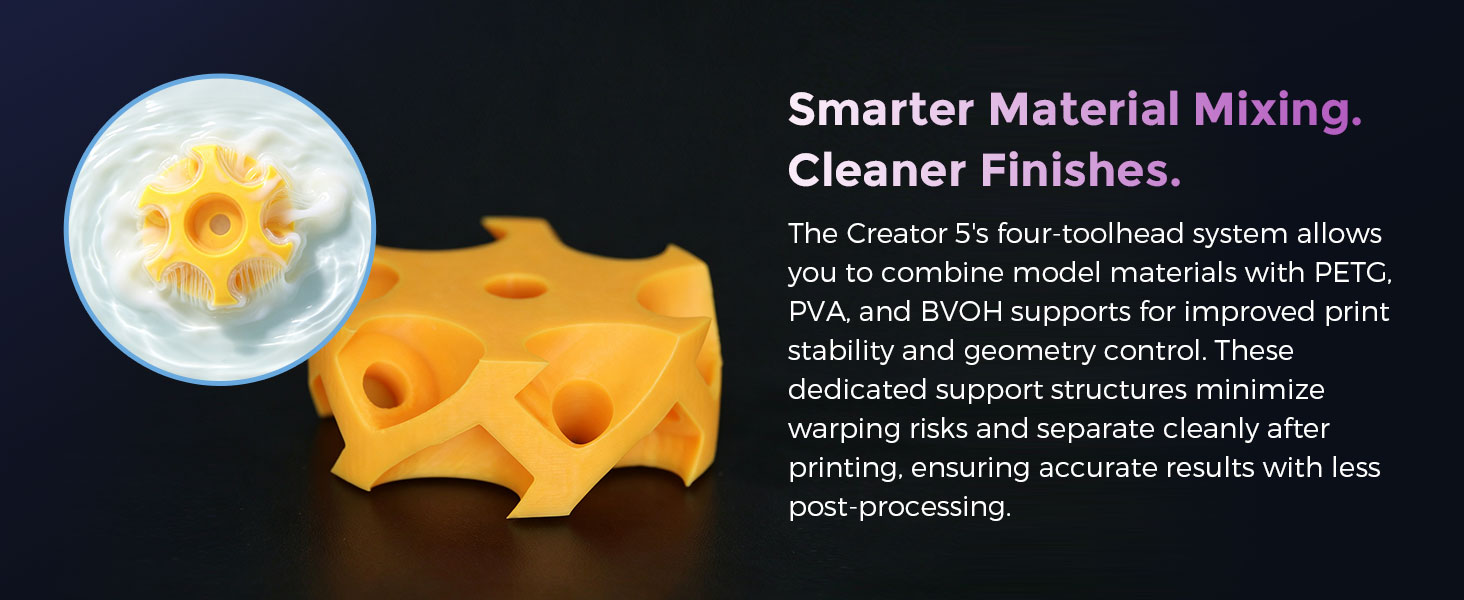

• Supports multi-material structures and soluble-support workflows with compatible filament combinations

Speed and print quality

• Build volume: 256 x 256 x 256 mm

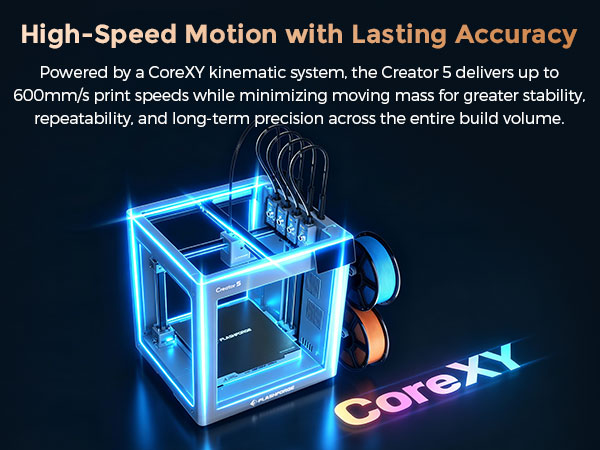

• Maximum travel speed: 600 mm/s
• Maximum print speed: 300 mm/s
• Maximum acceleration: 30,000 mm/s²

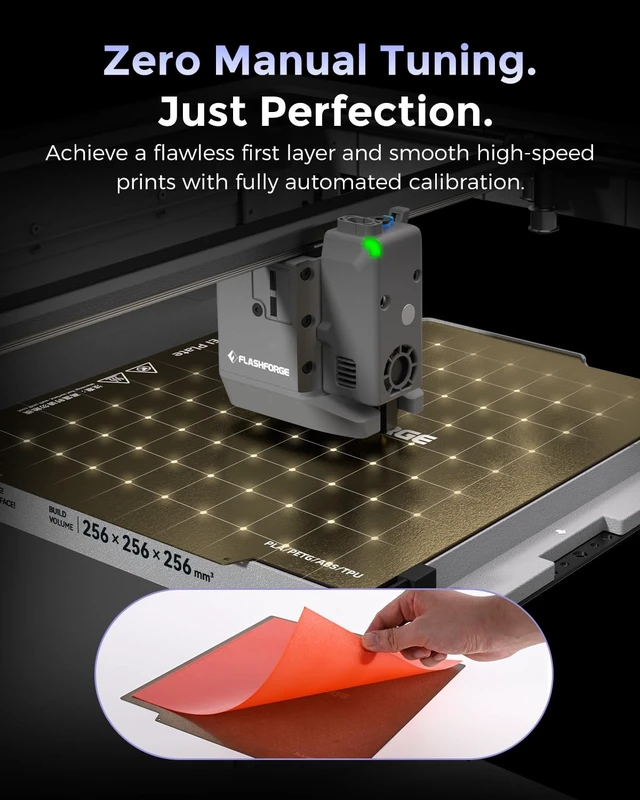

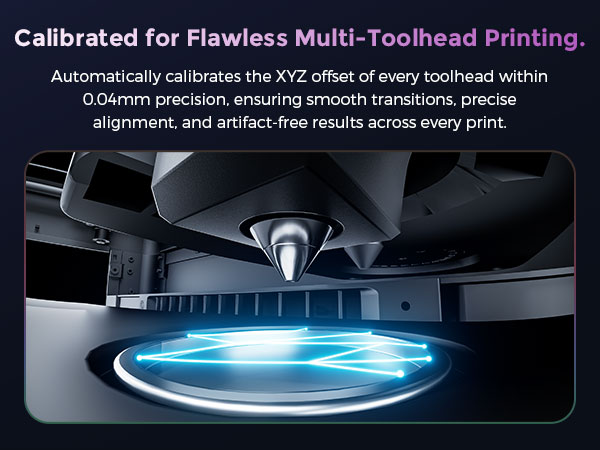

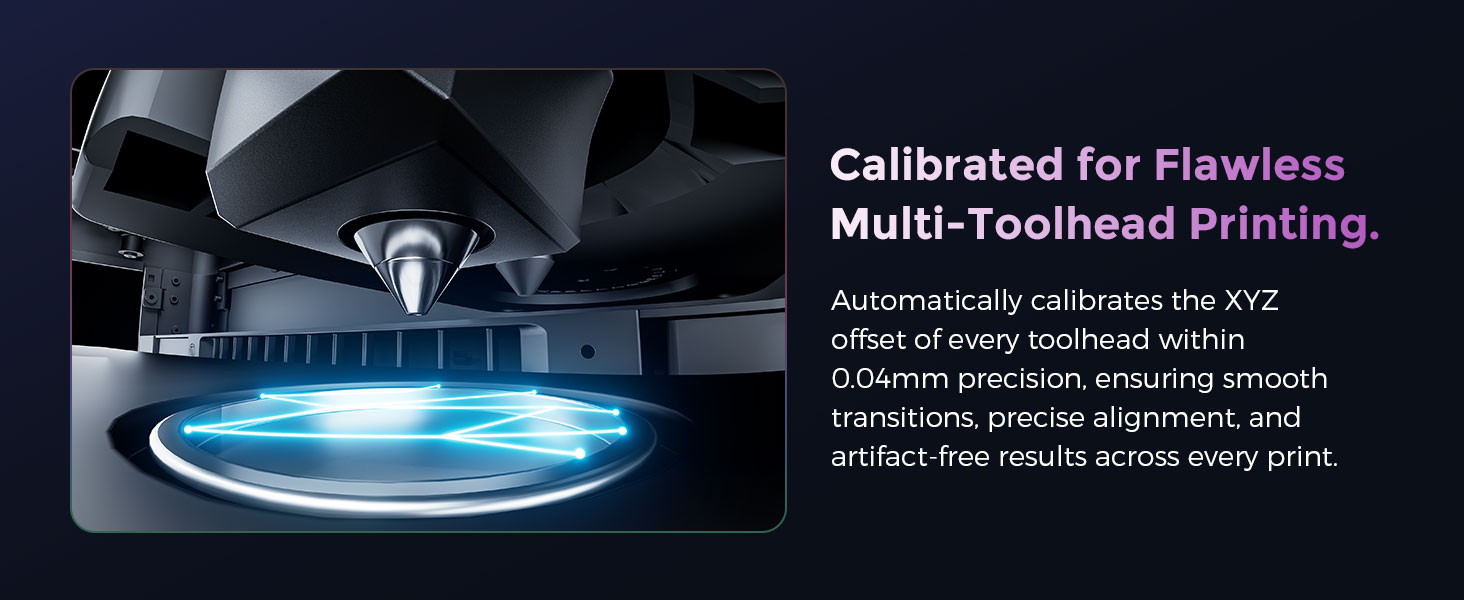

• Automatic bed leveling and multi-toolhead offset calibration
• Dynamic flow calibration and automatic print compensation
• PEI flexible steel build plate

Material and nozzle capability

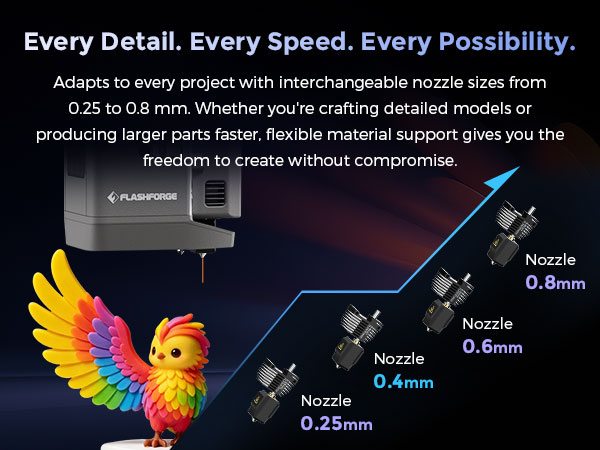

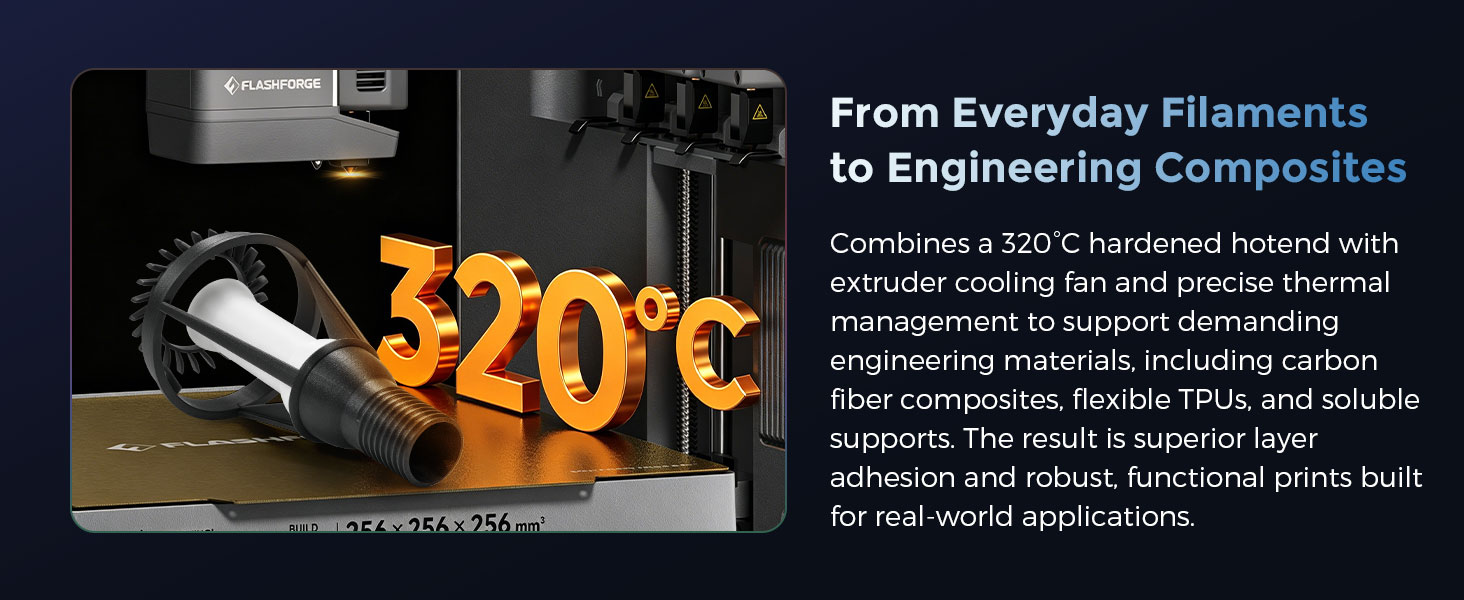

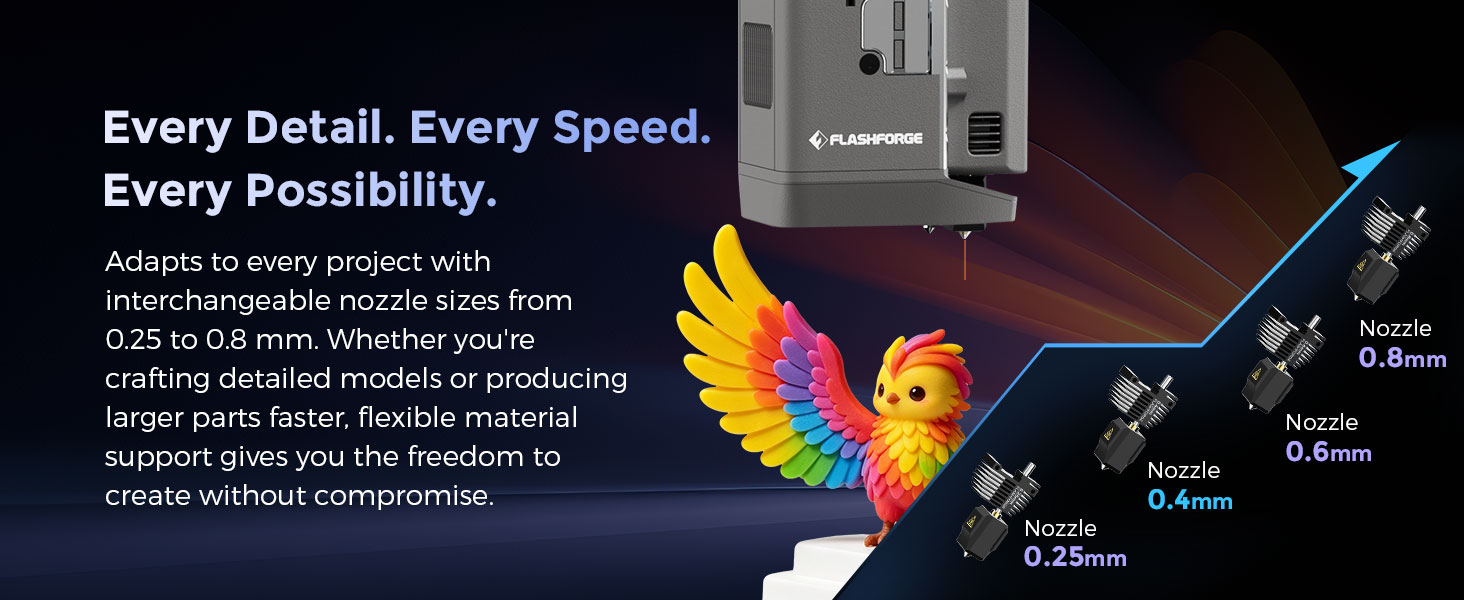

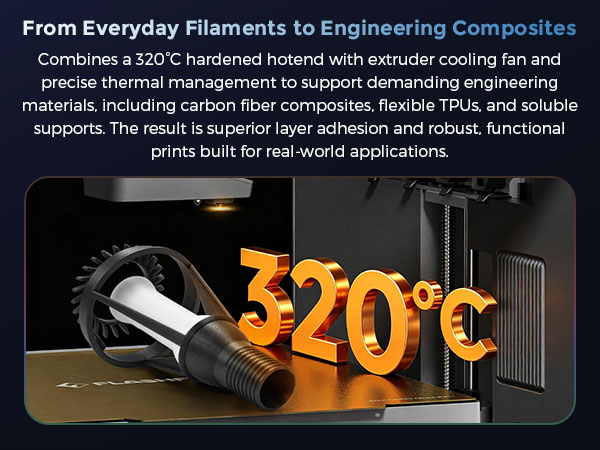

The Creator 5 uses removable nozzles with a standard 0.4 mm nozzle; compatible nozzle options include 0.25 mm, 0.6 mm, and 0.8 mm. The maximum nozzle temperature is 320°C and the maximum heated-bed temperature is 120°C. Recommended materials include PLA, PETG, TPU, PLA-CF, PETG-CF, Silk PLA, PVA, and BVOH. Material compatibility depends on the selected filament profile, drying condition, adhesion, temperature, and toolhead assignment.

Connected workflow

Use Orca-Flashforge or OrcaSlicer for slicing. The printer supports USB and dual-band Wi-Fi connectivity, remote monitoring through its built-in Full HD camera, filament run-out detection, power-loss recovery, and multi-printer management.

Important note

This is the open-frame Creator 5. It does not include the Creator 5 Pro's active 65°C heated chamber or HEPA and activated-carbon air filtration system.

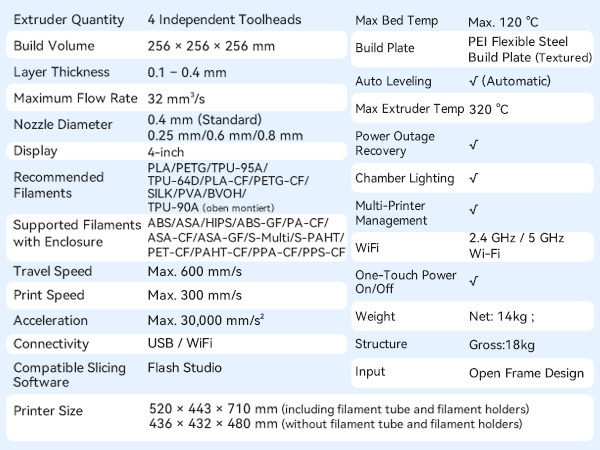

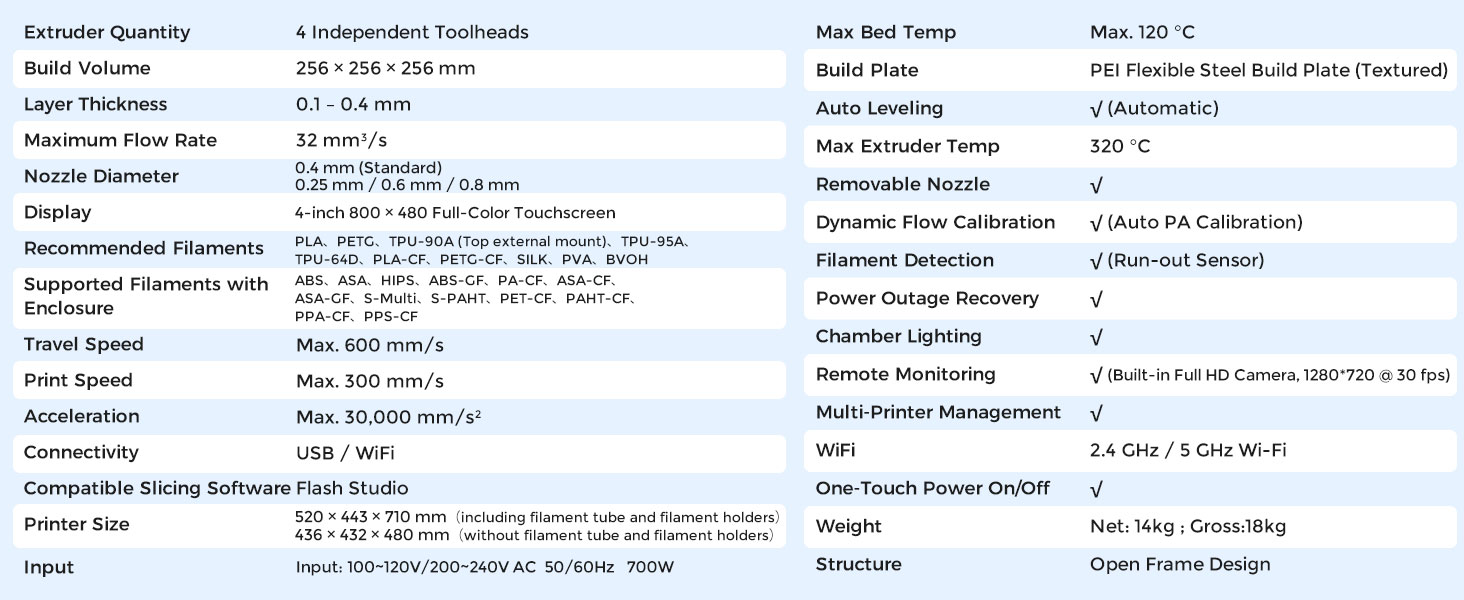

Specifications / Features

Printer Type: FDM / FFF 3D Printer

Toolhead Quantity: 4 Independent Toolheads

Maximum Colors / Materials Per Print: Up to 4

Build Volume: 256 x 256 x 256 mm

Build Plate: Textured PEI Flexible Steel Build Plate

Nozzle Diameter: 0.4 mm Standard

Compatible Nozzle Sizes: 0.25 mm, 0.6 mm, 0.8 mm

Maximum Nozzle Temperature: 320°C

Maximum Bed Temperature: 120°C

Maximum Print Speed: 300 mm/s

Maximum Travel Speed: 600 mm/s

Maximum Acceleration: 30,000 mm/s²

Maximum Flow Rate: 32 mm³/s

Auto Bed Leveling: Yes

Dynamic Flow Calibration: Yes

Filament Run-Out Detection: Yes

Power-Loss Recovery: Yes

Camera: Built-in Full HD Camera, 1280 x 720 at 30 fps

Display: 4-inch 800 x 480 Full-Color Touchscreen

Connectivity: USB, 2.4 GHz / 5 GHz Wi-Fi

Compatible Slicing
