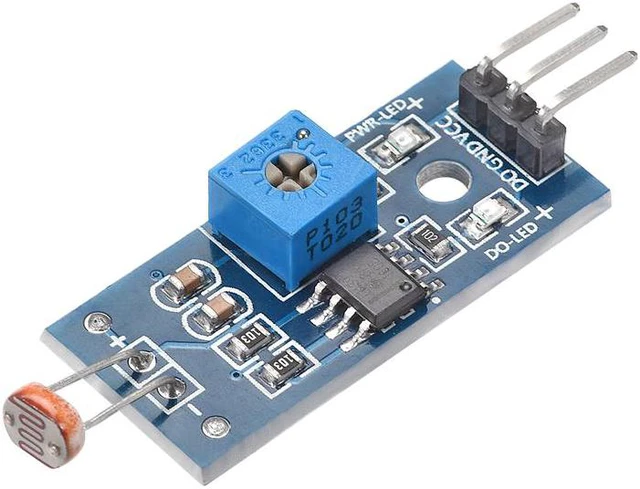

Photosensitive Sensor Module Digital Light Intensity Detection DC 3.3-5V for Arduino UNO
- Item #: 9SIV0KK9YY3214
- Mfr. Part #: a19052200ux0089
- 1. Supply voltage: DC 3.3-5V ; Output : Digital signal 0&1;2.Generally used to detect surrounding environment of the brightness of the light.
+
+
Overview
Specs
Reviews
Description:
1.When ambient light intensity does not reach the threshold value, the module DO port output high; when the ambient light intensity exceeds a set threshold, the D0 output low;
2.The photoresistor module is most sensitive to the brightness of ambient light and is generally used to detect surrounding environment of the brightness of the light.
KEY_TAB 3. Digital outputs D0 can be directly connected with the microcontroller through the microcontroller to detect high and low , thereby detecting the light intensity changes in the environment;KEY_TAB
KEY_TAB
Specification:
Material: Photosensitive sensor moduleKEY_TAB
Output : Digital signal 0&1
VCC input voltage: DC 3.3-5V

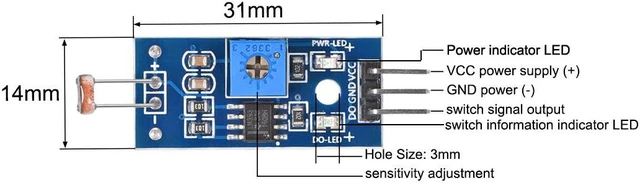

PCB Size: 31 x 14mm (L*W)KEY_TAB
Hole Size: 3mm/ 0.12"
KEY_TAB
Package Content:
1pcs x Photosensitive sensor moduleKEY_TAB
