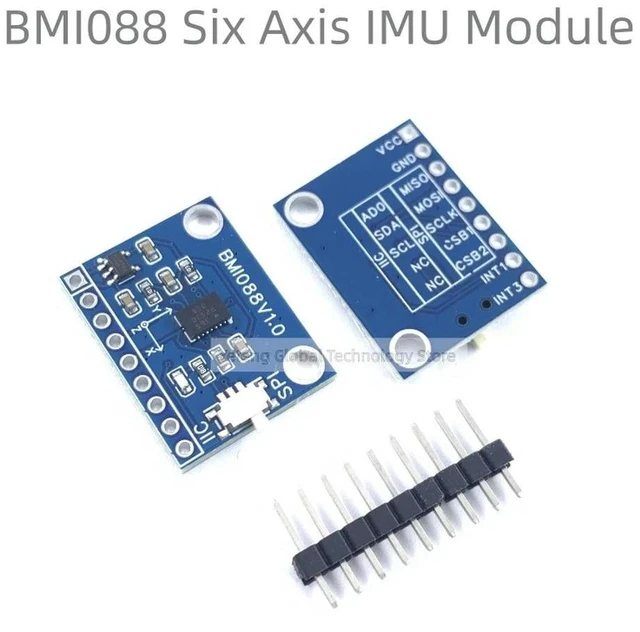

BMI088 6-Axis IMU Sensor Module - High-Performance Accelerometer & Gyroscope, High Vibration Robustness, IIC / SPI Interface, 3.3V-5V for MCU
- Item #: 9SIVUX4M6U0459
- Mfr. Part #: 059919057502
- [Industrial-Grade Performance] Built around the high-performance BMI088 chip, this 6-axis Inertial Measurement Unit (IMU) is specifically designed for environments with high vibration and thermal fluctuations, ensuring highly stable and accurate data output.
- [Precision 6-Axis Tracking] Integrates a 16-bit triaxial gyroscope and a 16-bit triaxial accelerometer on a single compact module. Delivers pinpoint accuracy for motion detection, orientation, and tilt measurement.
- [Dual Communication Protocols] Fully supports both IIC (I2C) and SPI digital interfaces. Flexible pinout configuration allows easy and fast integration into various circuit designs and control systems.
- [Universal MCU Compatibility] Features a built-in LDO voltage regulator, supporting a wide operating voltage range from 3.3V to 5V. Perfectly compatible with mainstream 8-bit and 32-bit Microcontrollers (MCU, ARM, STM32, 8051).
- [Advanced Applications] The ultimate sensing solution for Unmanned Aerial Vehicles (UAVs/Drones), robotics, autonomous navigation systems, vibration measurement tools, and industrial IoT devices.
+
+
Overview
Specs
Reviews
Unleash Precision Motion Tracking with High Vibration Robustness
Upgrade your robotics and drone projects with the BMI088 6-Axis IMU Sensor Module. Designed for electronic engineers, students, and DIY hardware developers, this advanced sensor module provides highly accurate motion, acceleration, and orientation data even in demanding, high-vibration environments
Superior Hardware Architecture
Unlike basic IMU sensors, the BMI088 is renowned for its exceptional vibration suppression capabilities and low noise density. It seamlessly combines a 16-bit accelerometer (capable of measuring up to ±24g) and a 16-bit gyroscope (up to ±2000 dps), guaranteeing flawless tracking for high-speed dynamic movements.
Easy Hardware Integration

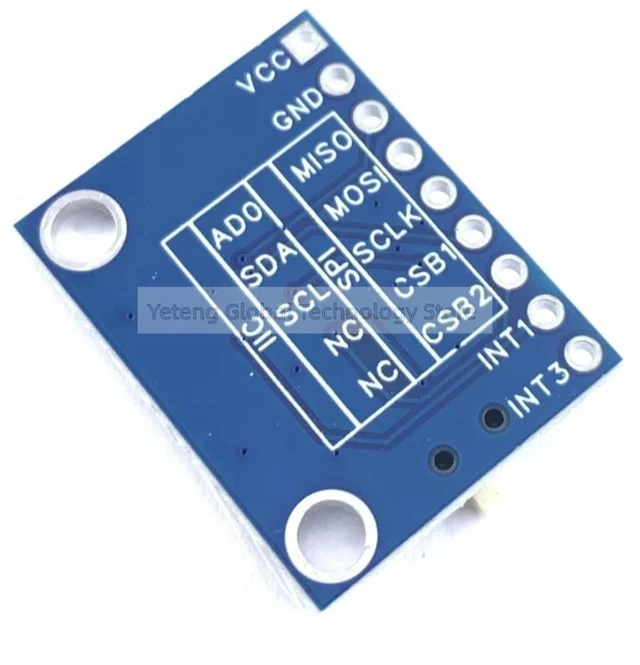

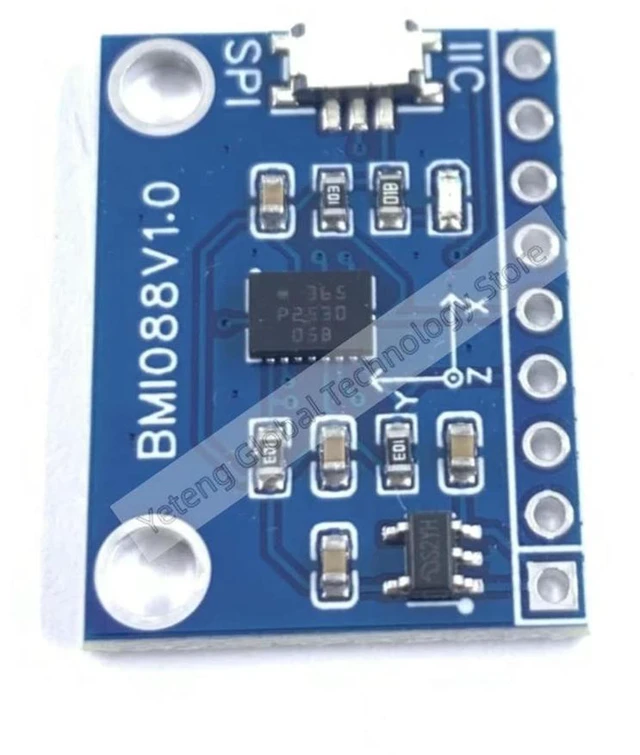

The module is mounted on a durable PCB with standard 2.54mm pitch pin headers. With support for both IIC (I2C) and SPI communication protocols, and a flexible 3.3V to 5V power input, it interfaces smoothly with almost any custom development board or microcontroller (MCU).
Key Technical Specifications:
- Sensor Core: BMI088
- Degrees of Freedom (DoF): 6-Axis (3-Axis Accelerometer + 3-Axis Gyroscope)
- Operating Voltage (VCC): 3.3V to 5V DC
- Communication Interface: IIC (I2C) / SPI Digital Output
- Accelerometer Range: ±3g, ±6g, ±12g, ±24g (16-bit resolution)
- Gyroscope Range: ±125, ±250, ±500, ±1000, ±2000 dps (16-bit resolution)
- Pin Pitch: Standard 2.54mm
- Operating Temperature: -40°C to +85°C
