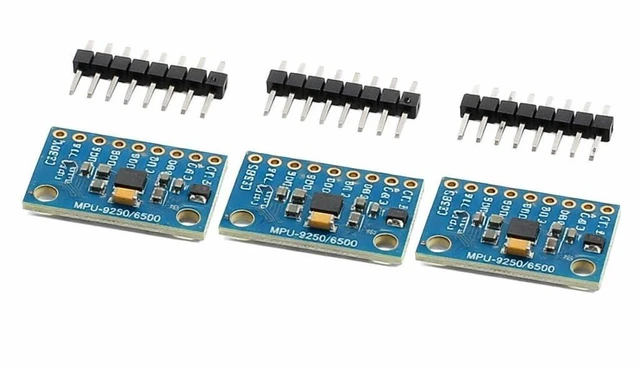

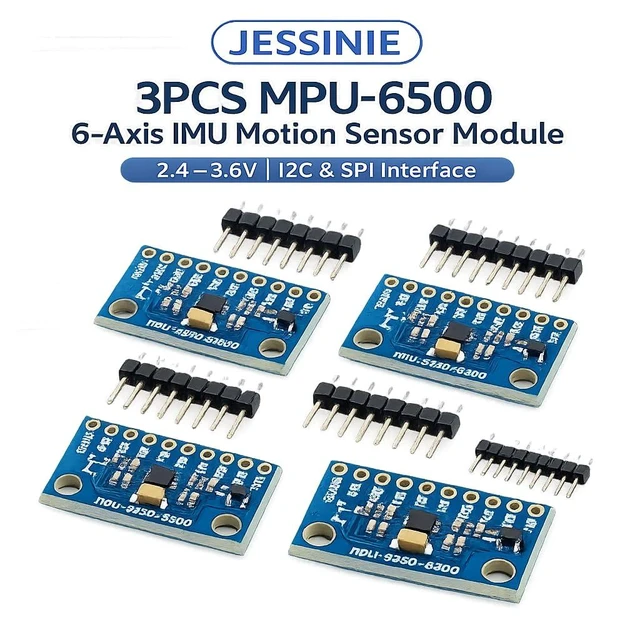

3pcs MPU6500 6Axis IMU Motion Sensor Module, 2.43.6 V, I2C SPI Interface
- Item #: 9SIVV1XM8P0832
- Mfr. Part #: ZP0811ZP.2026449
- Integrated 6Axis Motion And Attitude Sensing MPU6500 combines a 3axis accelerometer and 3axis gyroscope in one 6DOF IMU; synchronized motion and angular rate data improves attitude calculation; stable digital output supports accurate movement tracking in compact embedded systems; Wide Selectable Acceleration And Gyro Ranges Acceleration ranges of ±2 g, ±4 g, ±8 g, and ±16 g; gyroscope ranges from ±250 to ±2000 dps; flexible sensitivity settings allow tuning for slow orientation changes or fast rotational motion across varied use scenarios; Low Power Operation With Broad Voltage Support Operates from 2.4 V to 3.6 V DC; optimized for low power consumption; supports modern 3.3 V logic systems; enables longterm motion sensing while maintaining consistent performance over 40 °C to 85 °C; Dual I2C And SPI Digital Interfaces Supports both I2C and SPI communication modes; simplifies integration with different microcontroller architectures; digital data transfer improves noise immunity; allows reliable realtime motion data acquisition; Compact Module With Interrupt Output Includes INT pin for motion event signaling; reduces continuous polling load on the controller; compact PCB layout fits spacelimited designs; compatible with for Arduino and similar platforms using proper voltage level matching
+
+
Overview
Specs
Reviews
Product Overview MPU6500 6Axis Motion Sensor Module integrating a 3axis accelerometer and 3axis gyroscope. Highperformance 6DOF IMU designed for precise motion, attitude, and angular rate sensing. Built with original MPU6500 chip, offering stable digital output and reliable performance.
1.
Product Parameters Sensor IC: MPU6500
Sensor Type: 6axis IMU (Accelerometer + Gyroscope)
Supply Voltage (VCC): 2.43. 6 V DC
Acceleration Range: ±2 g / ±4 g / ±8 g / ±16 g
Gyroscope Range: ±250 / ±500 / ±1000 / ±2000 dps
Output Type: Digital motion data
Communication Interface: I2C / SPI
Power Consumption: Low power design
Operating Temperature: 40 °C to +85 °C
2. Pin Function
Description VCC (IN+): DC power input positive
GND: Power ground SCL /
SCK: I2C clock or SPI clock SDA /
SDI: I2C data or SPI data input
SDO: SPI data output / I2C address select
CS: SPI chip select, active low
INT: Interrupt output
3. Common Questions & Answers (FAQ)
Q1: What sensors are integrated in the MPU6500?
A1: It includes a 3axis accelerometer and 3axis gyroscope.
Q2: What voltage is required to power the module?
A2: It operates from 2.4V to 3.6V DC.
Q3: Which communication interfaces are supported?
A3: Both I2C and SPI interfaces are supported.
Q4: Is this module suitable for motion tracking?
A4: Yes, it is designed for accurate motion and attitude sensing.
Q5: Does it require calibration before use?
A5: Yes, calibration is recommended for optimal accuracy.
