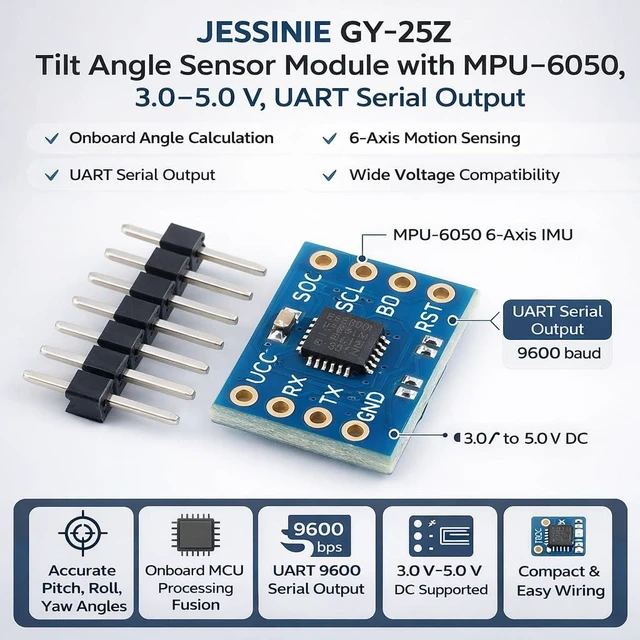

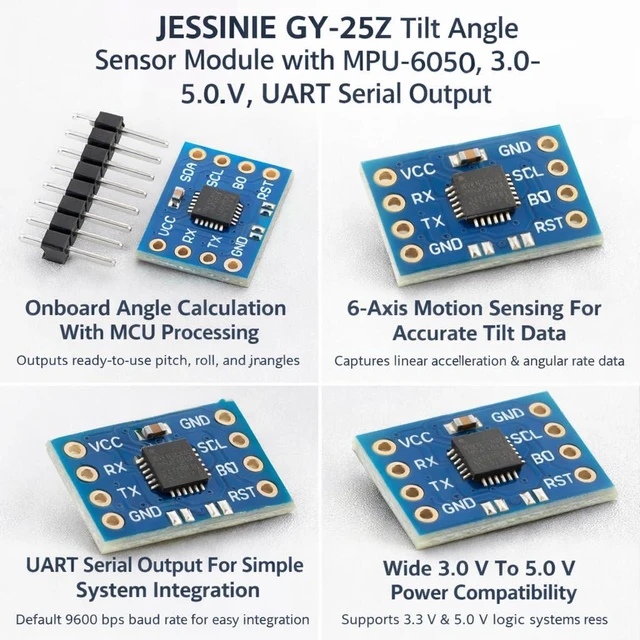

GY25Z Tilt Angle Sensor Module with MPU6050, 3.05.0 V, UART Serial Output
- Item #: 9SIVV1XM8D5205
- Mfr. Part #: ZP0811ZP.2026379
- Onboard Angle Calculation With MCU Processing GY25Z integrates an onboard MCU with MPU6050 sensors; performs realtime sensor fusion internally; outputs readytouse pitch, roll, and yaw angles; reduces firmware workload; simplifies orientation measurement for embedded control and monitoring tasks; 6Axis Motion Sensing For Accurate Tilt Data Built with MPU6050 3axis accelerometer and 3axis gyroscope; captures linear acceleration and angular rate data simultaneously; combined sensing improves tilt accuracy; supports smooth and stable angle tracking during dynamic movement; UART Serial Output For Simple System Integration Provides digital angle data through standard UART serial communication; default 9600 bps baud rate ensures stable transmission; minimizes software complexity compared to raw sensor reading; ideal for quick integration with microcontrollers and controllers; Wide 3.0 V To 5.0 V Power Compatibility Operates from 3.0 V to 5.0 V DC; supports both 3.3 V and 5 V logic systems; reduces external power conversion needs; improves flexibility when integrating into mixedvoltage embedded electronic designs; Compact Module With Clear Pin Definition Includes VCC, GND, TXD, RXD, and RST pins for straightforward wiring; compact PCB fits spacelimited layouts; reset pin supports stable startup behavior; compatible with for Arduino and similar UARTbased controllers using proper voltage matching
+
+
Overview
Specs
Reviews
Product Overview GY25Z Tilt Angle Sensor Module integrating MCU and MPU6050 accelerometer and gyroscope. Designed for accurate angle, tilt, and motion measurement with onboard processing. Provides stable angle output via serial communication, ideal for control and orientation applications.
1.
Product Parameters Module Type: GY25Z
Core Sensor: MPU6050 (3axis accelerometer + 3axis gyroscope)
MCU: Onboard microcontroller for angle calculation
Supply Voltage (VCC): 3.05. 0
V DC Angle Measurement: Pitch / Roll /
Yaw Output Type: Digital angle data
Communication Interface: UART serial
Baud Rate: Default 9600 bps
Operating Temperature: 40 °C to +85 °C

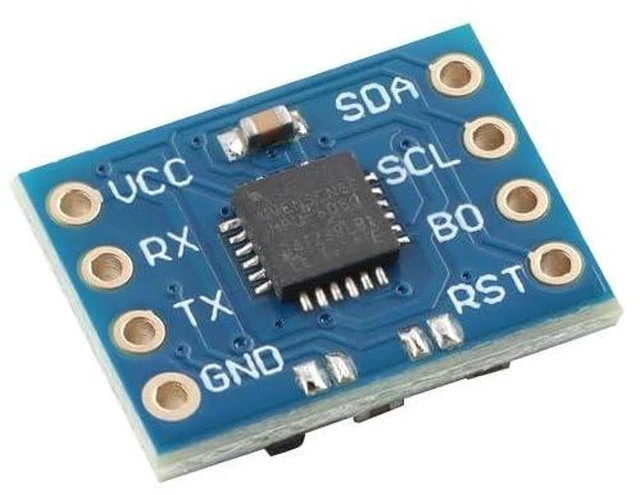

2. Pin Function
Description VCC (IN+): DC power input positive
GND: Power ground
TXD: UART data transmit
RXD: UART data receive
RST: Module reset input
3. Common Questions & Answers (FAQ)
Q1: Does this module output direct angle data?
A1: Yes, it outputs calculated tilt and angle data via serial.
Q2: What voltage is required to power the module?
A2: It supports 3.0V to 5.0V DC input.
Q3: Which communication method is used?
A3: It uses UART serial communication.
Q4: Is sensor fusion handled onboard?
A4: Yes, the onboard MCU processes sensor data internally.
Q5: Is calibration required before use?
A5: Basic calibration is recommended for best accuracy.
