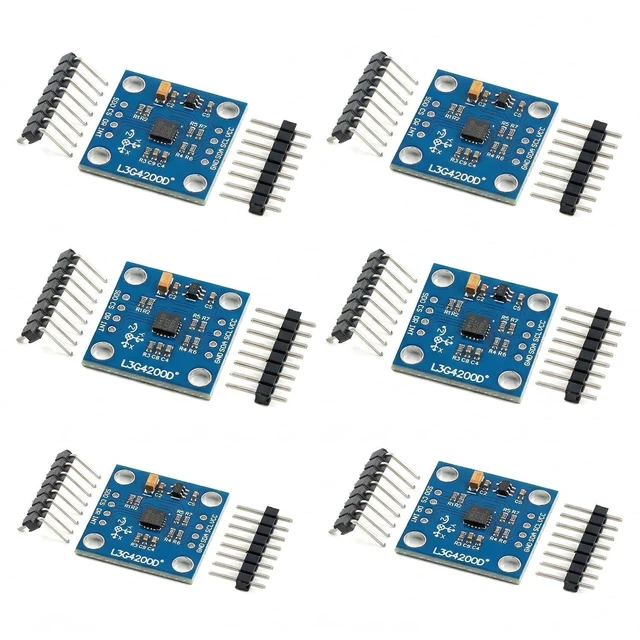

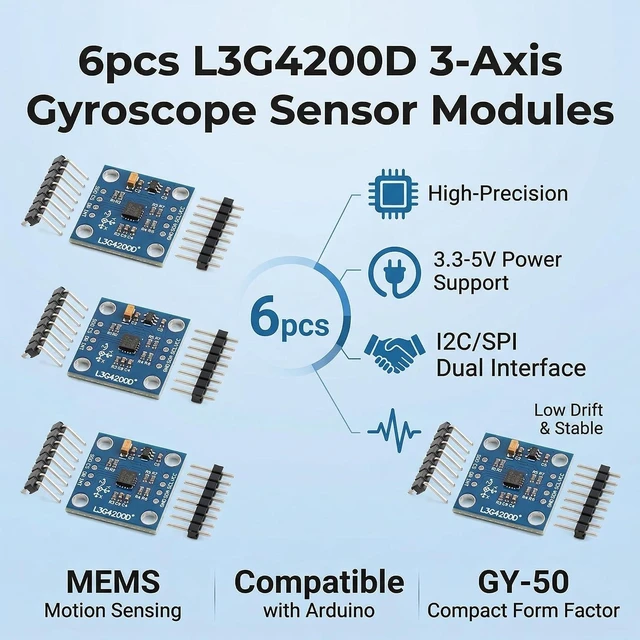

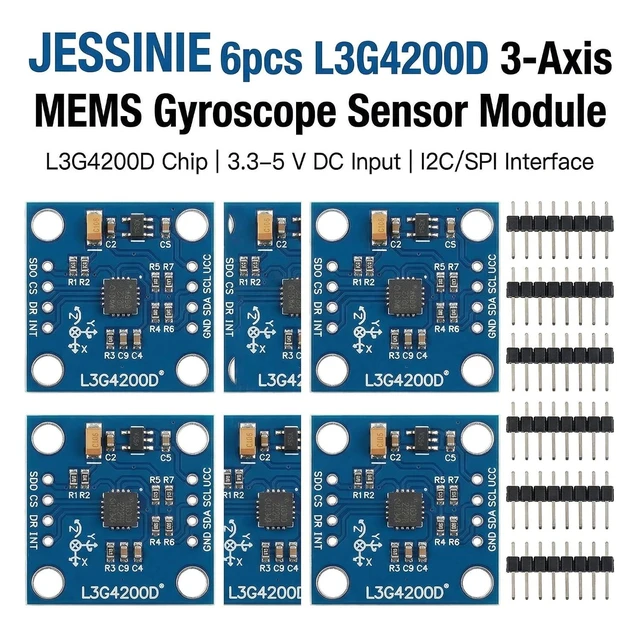

6pcs L3G4200D 3Axis MEMS Gyroscope Sensor Module, 3.35 V, I2C SPI Interface
- Item #: 9SIVV1XM8D5369
- Mfr. Part #: ZP0811ZP.2026444

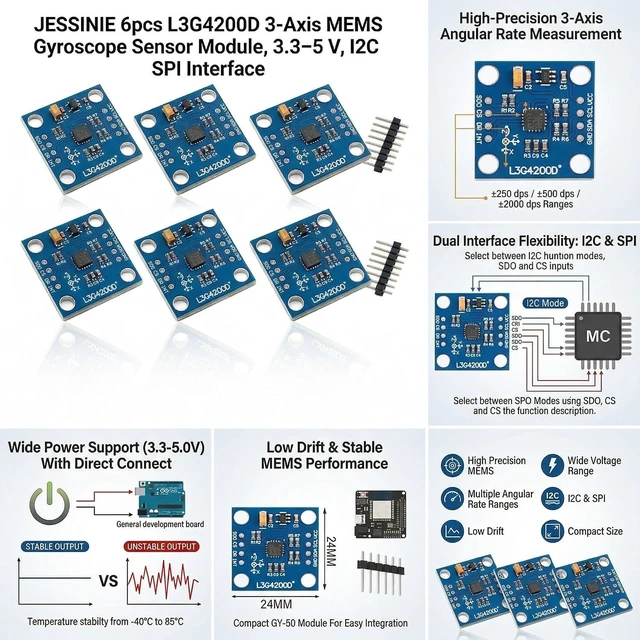

- HighPrecision 3Axis Angular Rate Measurement L3G4200D MEMS gyroscope module measures angular velocity on three axes; selectable ranges of ±250 dps, ±500 dps, and ±2000 dps; digital output provides stable motion data; supports accurate rotation tracking and orientation analysis in embedded projects; Dual Digital Interface Flexibility Supports both I2C and SPI communication modes; flexible pin configuration adapts to different controller requirements; reduces integration complexity; enables reliable highspeed data transfer for realtime motion processing applications; Wide 3.3 V To 5.0 V Power Support Operating voltage range from 3.3 V to 5.0 V DC; compatible with common development boards; simplifies power design without extra regulators; suitable for mixedvoltage systems and rapid prototyping setups; Low Drift And Stable MEMS Performance Optimized MEMS structure delivers low noise and reduced drift; maintains consistent output across 40 °C to 85 °C operating range; supports longterm motion sensing where stable angular data is required; Compact GY50 Module For Easy Integration GY50 form factor with clearly labeled pins and interrupt output; compact PCB fits spacelimited designs; compatible with for Arduino and similar microcontrollers; supports fast setup and clean integration into motion sensing systems
+
+
Overview
Specs
Reviews
Product Overview L3G4200D 3Axis Digital Output Gyroscope Module (GY50). MEMS motion sensor designed for accurate angular rate measurement. Built with original L3G4200D chip, delivering stable performance, low noise, and reliable digital output for motion sensing applications.
1.
Product Parameters Sensor IC: L3G4200D
Sensor Type: 3axis MEMS gyroscope
Supply Voltage (VCC): 3.35. 0
V DC Angular Rate Range: ±250 / ±500 / ±2000 dps
Output Type: Digital angular rate data
Communication Interface: I2C /
SPI Sensitivity: High sensitivity, low drift
Operating Temperature: 40 °C to +85 °C
Module Type: GY50

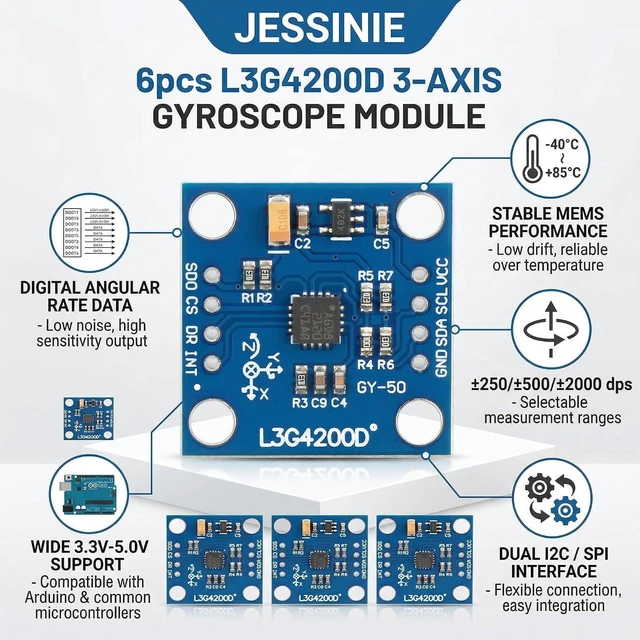

2. Pin Function
Description VCC (IN+): DC power input positive
GND: Power ground SCL /
SCK: I2C clock or SPI clock SDA /
SDI: I2C data or SPI data input
SDO: SPI data output / I2C address select
CS: SPI chip select, active low
INT: Interrupt output
3. Common Questions & Answers (FAQ)
Q1: What does this sensor measure?
A1: It measures angular velocity on three perpendicular axes.
Q2: Which communication protocols are supported?
A2: Both I2C and SPI interfaces are supported.
Q3: What voltage is required to power the module?
A3: It supports 3.3V to 5.0V DC input.
Q4: Is it compatible with Arduino boards?
A4: Yes, it works with Arduino and similar microcontrollers.
Q5: Does it require calibration before use?
A5: Basic calibration is recommended for improved accuracy.
